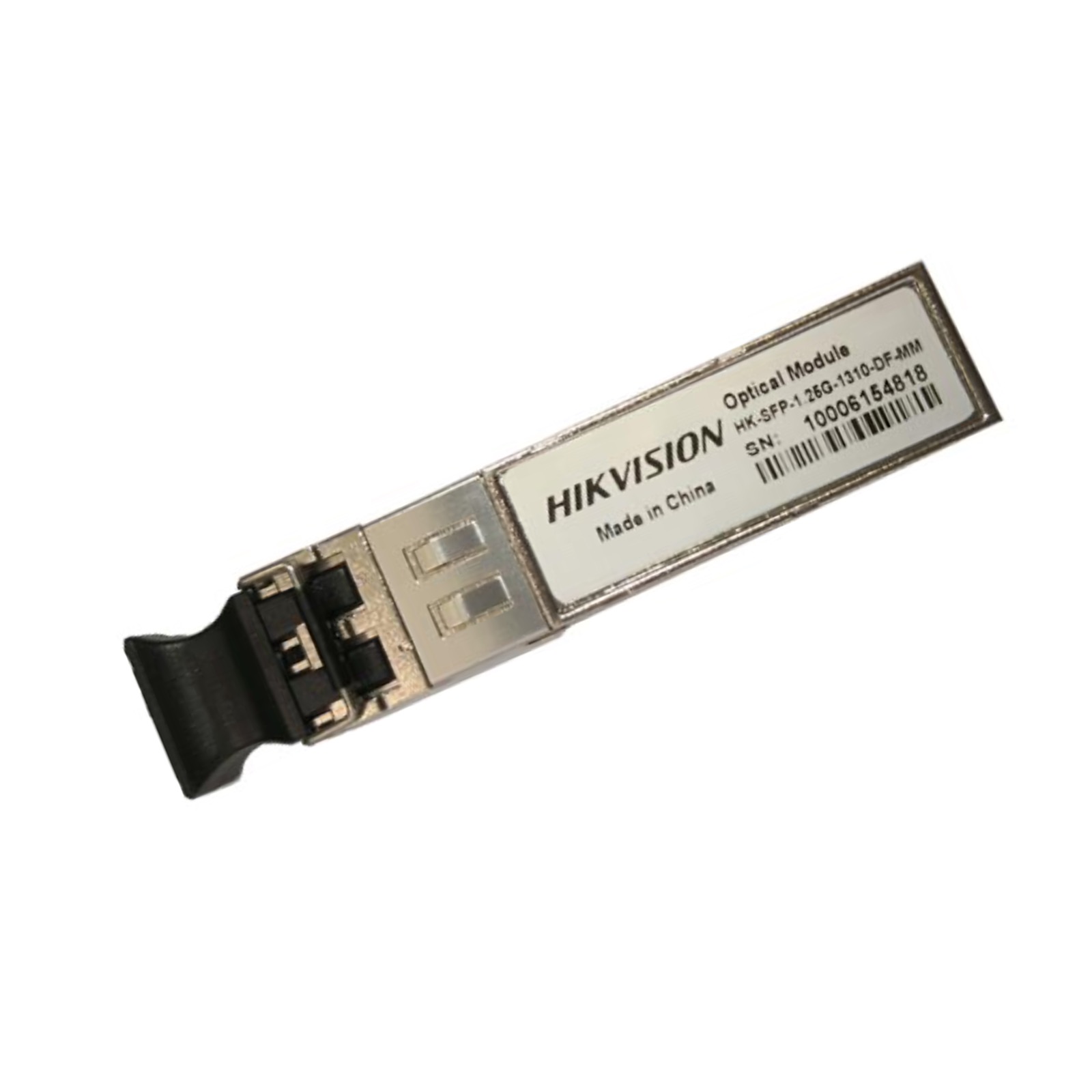

The HK-SFP-1.25G-1310-DF-MM from Hikvision is a small size 3.3V single power delivery Optical SFP module. Support 1.25G data transmission rate, ROHS standard compliant, Double LC connector, data transmission up to 1Km, Operating temperature 0 ° C - 70 ° C.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

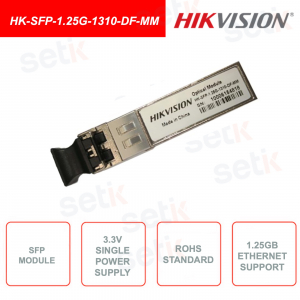

SFP MODULE - 1.25G ETHERNET - ROHS STANDARD - LC DUPLEX - POWER 3.3V - HIKVISION - HK-SFP-1.25G-1310-DF-MM
SFP module - Hikvision - HIKVISION - HK-SFP-1.25G-1310-DF-MM
SFP Optical Module - 3.3V Power - Secure Data Transmission Up to 1Km - Hot Pluggable - LC Duplex Connector - Wide Operating Temperature, -0 ° C to 70 ° C - Storage Temperature: -40 ° C to 85 ° C - Relative humidity 30-80% - 2 connectors - 1250Mbps - Fiber type: MMF, duplex fiber, 62.5 / 125um, 50 / 125um - Wavelength: Tx1310nm / Rx1310nm - TX Power: -9 ~ -3dBm - HIKVISION - HK-SFP- 1.25G-1310-DF-MM
Product details
- SFP Optical Module - HIKVISION - HK-SFP-1.25G-1310-DF-MM
- Safe data transmission up to 1Km
- Transmission rate: 1.25G Ethernet 1250Mbps
- Power output 3.3V
- LC Duplex connector
- Wavelength: Tx1310nm / Rx1310nm
- Operating temperature: -0 ° C up to 70 ° C
- Storage temperature: -40 ° C to 85 ° C
- Relative humidity: 30% - 80%
- Fiber Type: MMF, duplex fiber, 62.5 / 125um, 50 / 125um
Data sheet
|
Model name |
HK-SFP-1.25G-1310-DF-MM |
|
Fiber type |
MMF, duplex fiber, 62.5 / 125um, 50 / 125um |
|
Connector |
LC |
|
Date Rate |
1250 Mbps |
|
Connector quantity |
2 |
|
Distance |
0 ~ 1km |
|
Wavelength |
Tx1310nm / Rx1310nm |
|
TX Power |
-9 ~ -3dBm |
|
RX Sens (Max.) |
-20dBm |
|
Operating temperature |
0 ~ 70? C |
|
Storage temperatures |
-40? 85? C |
|
Relative humidity |
30 - 80% |
|
Power supply voltage |
DC 3.3V |
