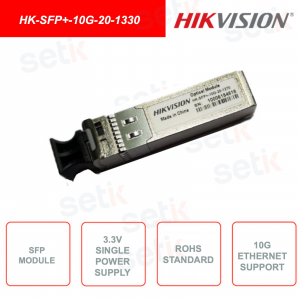

The HK-SFP + -10G-20-1330 by Hikvision , is an SFP module that guarantees 10G Ethernet data rate and secure data transmission up to 20Km - Fiber type: SMF, Single fiber, 9 / 125um - Bidirectional - Comaptibile with the ROHS standard - Wavelength : Tx1330nm / Rx1270nm - Power Supply 3.3V.
FIND INSTALLER
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
HK-SFP + -10G-20-1330 - OPTICAL SFP MODULE - 3.3V POWER SUPPLY - ROHS STANDARD - HIKVISION
HIKVISION Optical SFP Module - HK-SFP + -10G-20-1330 - Power Output 3.3V - Compliant with ROHS standard - Supports Gigabit data rates to 10G Ethernet, CPRI, Fiber Channel - Hot Pluggable Function - Wide Bandwidth - Bi-directional Single Fiber LC Connector - Wavelength Wavelength: Tx1330nm / Rx1270nm - Distance up to 20Km - Relative humidity from 30 to 80% supported - Wide operating temperature, -40 ° C to 85 ° C: supports use in thermal conditions extreme - HIKVISION - HK-SFP + -10G-20-1330
Product details
- Optical SFP module - HIKVISION - HK-SFP + -10G-20-1330
- Gigabit data rate, 10G
- ROHS Standard Compatible
- Fiber Type: SMF, Single fiber, 9 / 125um
- Safe data transmission up to a distance of 20Km
- Wavelength : Tx1330nm / Rx1270nm
- Operating temperature: -40 ° C to 85 ° C
- Relative humidity: about 30-80%
Data sheet
|
Model |
HK-SFP + -10G-20-1330 |
|
|
Fiber type |
SMF, Single fiber, 9 / 125um |
|
|
Connector |
LC |
|
|
Date Rate |
10 Gbps |
|
|
Connector quantity |
1 |
|
|
Distance |
0 ~ 20km |
|
|
Wavelength |
Tx1330nm / Rx1270nm |
|
|
TX Power |
-3 ~ 2dBm |
|
|
RX Sens (Max.) |
-12.4dBm |
|
|
Operating temperature |
0 ~ 70? C |
|
|
Storage temperatures |
-40? 85? C |
|
|
Relative humidity |
30 - 80% |
|
|
Power supply voltage |
DC 3.3V |
|
Further details
Download
Questions (0)
No customer questions for the moment.
