The DS-3T0506HP-E / HS from Hikvision, is an unmanaged switch 3 Gigabit PoE ports + 1 Gigabit Hi-PoE +2 Gigabit SFP fiber optic port. Compliant with IEEE 802.3at / af / bt Standard for Hi-PoE port . Surge Protection KV 6 and IEEE 802.3at / af PoE doors, door insulation to improve network security. Long range transmission up to 300m, PoE Watchdog function to automatically detect and restart unresponsive cameras. Wired speed feed. Reliable design without a fan and to a wider temperature range (-30 to 65 ° C). Store-and-forward switching .
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
DAHUA 8X8 ×
DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH
QUANTITY DISCOUNT AND FREE SHIPPING!
DISCOVER THEM NOW >>

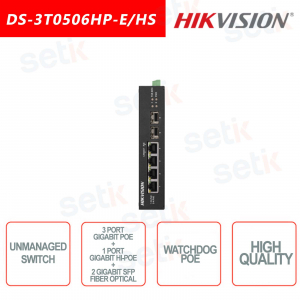

NON-MANAGEABLE SWITCH 2 GIGABIT POE DOORS + 1 GIGABIT HI-POE DOOR + 2 GIGABIT SFP OPTICAL FIBER DOORS - HIKVISION
Unmanageable switch - Hikvision3 Gigabit PoE ports + 1 Gigabit Hi-PoE port +2 Gigabit SFP fiber optic - PoE ports: 6 KV surge protection and IEEE 802.3at / af standard - Hi-PoE port: IEEE 802.3at / af / bt standard - function PoE Watchdog - Reliable fanless design
Product details
- Unmanageable Switch - Hikvision
- 3 Gigabit PoE ports + 1 Gigabit Hi-PoE + 2 Gigabit SFP fiber optic ports
- IEEE 802.3at / af / bt standard for Hi-PoE port (PoE output max. 60 W)
- IEEE 802.3at / af standard for PoE ports (PoE output max. 30 W)
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard
- 6KV surge protection for PoE ports
- Long range transmission up to 300m
- PoE Watchdog to automatically detect and restart unresponsive cameras
- Port isolation to improve network security
- Wired speed feed
- Wider temperature design (-30 to 65 ° C)
- Store-and-forward switching
- Solid high strength metal shell
- Reliable fanless design
Data sheet
| Model | DS-3T0506HP-E / HS |
| Network parameters | |
| Port Number | 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports |
| Port type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode |
| Ports for long-distance transmission | Ports 3 and 4 |
| MAC address table | 4 K |
| Switching capacity | 12 Gbps |
| Packet forwarding rate | 8,928 Mpps |
| Internal cache | 1.5 Mbits |
| PoE Power Supply | |
| Standard PoE |
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE port | Ports 2 to 4 |
| Hi-PoE port | Port 1 |
| Max. Port power |
Port 1: 60 W Ports 2 to 4: 30 W |
| PoE power budget | 60 W (0 to 40 ° C) |
| Dialing function? | |
| Long range | Ports 3 and 4: up to 300 m |
| Port isolation | Ports 1 to 4: port isolation mode to improve network security |
| PoE watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 0.94 kg (2.07 lb) |
| Net weight | 0.38 kg (0.84 lb) |
| Dimension (L × H × D) | 158 mm × 101.2 mm × 31.6 mm (6.22 "× 3.98" × 1.24 ") |
| Operating temperature | -30 ° C to 65 ° C (-22 ° F to 149 ° F) |
| Storage temperatures | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 to 57 VDC, 1.35 A Max. |
| Power consumption in idle | <5 w="" td=""> |
| Max. Power consumption | 65 W |
| Power source | 65 W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CELVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) |
| Chemistry | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
