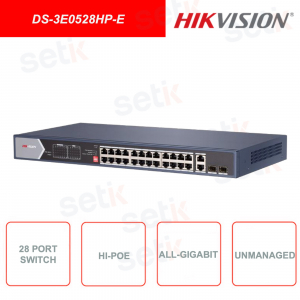

The DS-3E0528HP-E from Hikvision, is a 28 Gigabit Port Network Switch. It consists of 24 Gigabit PoE Ports (IEEE 802.3af, IEEE 802.3at ) , 2 Gigabit SFP Fiber Optic Port, 4 Hi-PoE Ports and 2 RJ45 Ports. Product made of high strength metal, secure data transmission even over a long distance, up to 300m 6KV lightning protection on PoE ports. Ideal for video surveillance systems.



Reference: DS-3E0528HP-E

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


GIGABIT NETWORK SWITCH 28 PORTS - 20 PoE Ports - 2 SFP Fiber Optic Ports - 2 RJ45 Ports - 4 Hi-PoE Ports - HIKVISION

Hikvision
Ethernet switch - Hikvision - DS-3E0528HP-E
28 Ethernet Ports - 20 Gigabit PoE Ports - 2 Gigabit SFP Port - 2 1000Mbps Fiber Optic Ports - 4 Hi-PoE Ports - 8K Mac Address - 56Gbps Switching Capacity - Long Distance Data Transmission Up to 300m - 6KV Lightning Protection - Made of solid resistant metal - PoE Watchdog for detection and consequent restart of unresponsive cameras - Ideal product for managing components in video surveillance systems - Hikvision - DS-3E0528HP-E

Product details

  • Network switch - Hikvision - DS-3E0528HP-E
  • 28 Ethernet ports
  • 20 Gigabit PoE ports
  • 2 SFP Fiber Optic Ports
  • 4 Hi-PoE ports
  • 2 RJ45 LAN ports
  • Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Supported PoE Standards: IEEE 802.3af, IEEE 802.3at
  • 6 KV lightning protection for PoE ports
  • Switching capacity: 56Gbps
  • PoE Watchdog mode supported
  • Packet sending rate: 41.664 Mpps
  • Internal cache: 4.1Mbits
  • High strength metal
  • Data transmission supported up to 300m
  • Weight: 2.98Kg
  • Dimensions: 440 mm × 44 mm × 220.8 mm (17.3 "× 1.7" × 8.7 ")

Data sheet

Model DS-3E0528HP-E
Network parameters
Port Number 20 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports
Port type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Ports for long-distance transmission Ports 21 to 24
MAC address table 8K
Switching capacity 56 Gbps
Packet forwarding rate 41,664 Mpps
Internal cache 4.1 Mbits
PoE Power Supply
Standard PoE

Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 24: IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports 5 to 20: Ethernet cables 1/2/3/6 provide power supply.
Ports 1 to 4 and 21 to 24: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE port Ports 1 to 24
Hi-PoE port Ports 1 to 4
Max. Port power Ports 1 to 4: 90 W
Ports 5 to 24: 30 W
PoE power budget 370 W
Dialing Function
Long range Ports 21 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
Port isolation Ports 1 to 24: port isolation mode to improve network security.
PoE watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond.
General
Shell Metal material
Net Weight 2.98 kg (6.57 lb)
Dimension (L × H × D) 440 mm × 220.8 mm × 44 mm (17.32 "× 8.69" × 1.73 ")
Operating temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage temperatures -40 ° C to 85 ° C (-40 ° F to 185 ° F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50 / 60Hz, Max.6.5 A
Power consumption in idle <30 w="" td="">
Max. Power consumption 400 W
Power source 400 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 610003-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CELVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
