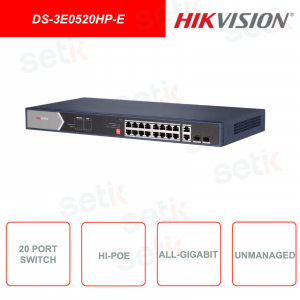

DS-3E0520HP-E - HIKVISION - Unmanageable Network Switch - 20 Gigabit Ports - Lightning Protection

DS-3E0520HP-E - HIKVISION - Unmanageable Network Switch - 20 Gigabit Ports - Lightning Protection
-35%

The DS-3E0520HP-E from Hikvision, is a network switch with 20 ports, 12 Gigabit PoE ports (IEEE 802.3af, IEEE 802.3at) , 2 Gigabit RJ45 ports, 4 Gigabit Hi-PoE ports and 2 gigabit fiber optic ports. Made of durable metal, fanless design. Protection. against 6KV lightning, and data transmission even at very long distances, up to 300m. PoE Watchdog for detecting and restarting unresponsive cameras. Ideal for video surveillance systems.



Reference: DS-3E0520HP-E

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NETWORK SWITCH 20 ETHERNET PORTS - 4 GIGABIT HI-POE PORTS - 2 GIGABIT RJ45 PORT - 2 GIGABIT FIBER OPTIC PORT AND 12 POE PORTS - HIKVISION - DS-3E0520HP-E

Hikvision

20 port ethernet switch - Hikvision - DS-3E0520HP-E
20 Ports - 12 GIGABIT PoE Ports - 2 GIGABIT RJ45 Ports - 12 Gigabit PoE Ports - 2 Gigabit Fiber Optic Ports - Mac Address 8K - 40Gbps Switching Capacity - Durable Metal Housing - Long Distance Data Transmission Up to 300m - Gigabit Up all ports - MAC Table Size 8K - Fanless design. Ideal product for the management of cameras in video surveillance systems.

Product details

  • Network switch - Hikvision - DS-3E0520HP-E
  • 20 Ethernet ports
  • 12 GIGABIT PoE ports
  • 4 GIGABIT Hi-PoE ports
  • 2 GIGABIT RJ45 ports
  • 2 Gigabit ports for optical fiber
  • PoE power management
  • Gigabit network access
  • Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • MAC Table size 8K
  • 40Gbps switching capacity
  • 4.1Mbps internal cache
  • Sending data over long distances up to 300m
  • Metal
  • Fanless design
  • Dimensions: 440 mm × 220.8 mm × 44 mm (17.32 "× 8.69" × 1.73 ")
  • Weight: 2.79Kg

Data sheet

Model DS-3E0520HP-E
Network parameters
Port Number 12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports
Port type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode Standard mode (default), Extend mode Isolation mode, PoE watchdog mode
Ports for long-distance transmission Ports 13 to 16
MAC address table 8K
Switching capacity 40 Gbps
Packet forwarding rate 29.76 Mpps
Internal cache 4.1 Mbits
PoE Power Supply
Standard PoE

Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 16: IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports 5 to 12: Ethernet cables 1/2/3/6 provide power supply.
Ports 1 to 4 and 13 to 16: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE port Ports 1 to 16
Hi-PoE port Ports 1 to 4
Max. Port power Ports 1 to 4: 90 W
Ports 5 to 16: 30 W
PoE power budget 225 W
Dialing Function
Long range Ports 13 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
Port isolation Ports 1 to 16: port isolation mode to improve network security.
PoE watchdog Ports 1 to 16: auto detect and restart the cameras that do not respond.
General
Shell Metal material
Net Weight 2.79 kg (6.15 lb)
Dimension (L × H × D) 440 mm × 220.8 mm × 44 mm (17.32 "× 8.69" × 1.73 ")
Operating temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage temperatures -40 ° C to 85 ° C (-40 ° F to 185 ° F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50 / 60Hz, Max. 4 A
Power consumption in idle <25 W
Max. Power consumption 250 W
Power source 250 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 610003-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CELVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
