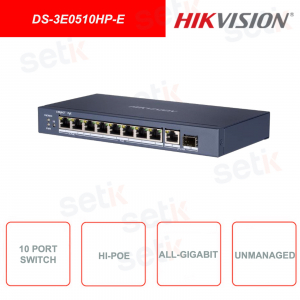

NETWORK SWITCH 10 ETHERNET PORTS - 6 GIGABIT PoE PORTS - 1 GIGABIT RJ45 PORT - 2 GIGABIT HI-POE PORTS - 1 GIGABIT SFP FIBER OPTIC PORT - HIKVISION - DS-3E0510HP-E
Ethernet switch - Hikvision - DS-3E0510HP-E
10 Ports - 6 GIGABIT PoE Ports - 1 GIGABIT RJ45 Port - 1 SFP Fiber Optic Port - 1 Hi-PoE Gigabit Port - Mac Address 4K - 20Gbps Switching Capacity - 1.5Mbits Internal Cache - Metal Fabricated Shell for Maximum Strength - Transmission data up to 300m - Fanless design - PoE Watchdog - 6KV lightning protection - Hikvision - DS-3E0510HP-E
Product details
- Network switch - Hikvision - DS-3E0510HP-E
- 10 overall doors
- 6 GIGABIT PoE ports
- 2 GIGABIT Hi-PoE ports
- 1 GIGABIT RJ45 port
- 1 GIGABIT SFP Fiber Optic Port
- Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Supported PoE Standards: IEEE 802.3af, IEEE 802.3at
- MAC Table size 4K
- Door insulation for security purposes
- PoE Watchdog function
- Metal - no fans equipped
- 6KV lightning protection
- Long distance transmission up to 300m
- Dimensions: 217.6 mm × 108.55 mm × 27.8 mm (8.57 "× 4.27" × 1.09 ")
Data sheet
| Model | DS-3E0510HP-E |
| Network parameters | |
| Port Number | 6 × gigabit PoE ports, 2 × gigabit Hi-PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port |
| Port type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode |
| Ports for long-distance transmission | Ports 7 and 8 |
| MAC address table | 4 K |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| Internal cache | 1.5 Mbits |
| PoE Power Supply | |
| Standard PoE |
Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE power pin |
Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply. |
| PoE port | Ports 1 to 8 |
| Hi-PoE port | Port 1 and 2 |
| Max. Port power | Ports 1 and 2: 90 W Ports 3 to 8: 30 W |
| PoE power budget | 110 W |
| Dialing Function | |
| Long range | Ports 7 and 8: up to 300 m; and the speed rate of the port is 10 Mbps. |
| Port isolation | Ports 1 to 8: port isolation mode to improve network security. |
| PoE watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.59 kg (1.30 lb) |
| Dimension (L × H × D) | 217.6 mm × 108.55 mm × 27.8 mm (8.57 "× 4.27" × 1.09 ") |
| Operating temperature | -10 ° C to 40 ° C (14 ° F to 104 ° F) |
| Storage temperatures | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 54 VDC, 2.22 A |
| Power consumption in idle | <10 W |
| Max. Power consumption | 120 W |
| Power source | 120 W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 610003-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CELVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) |
| Chemistry | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
