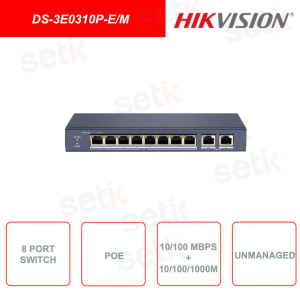

DS-3E0310P-E / M - Unmanageable Network Switch - 8 PoE 10 / 100M Ports + 2 Gigabit RJ45 Ports - Fanless

DS-3E0310P-E / M - Unmanageable Network Switch - 8 PoE 10 / 100M Ports + 2 Gigabit RJ45 Ports - Fanless
-35%

The DS-3E0310P-E / M from Hikvision, is an 8 Port network switch, with 8 PoE 10 / 100Mbps, 2x 10/100 / 1000Mbps Gigabit RJ45 ports. Manufactured from highly durable metal, fanless design and long distance transmission up to 300m. PoE ports use 6KV lightning protection. Mac Table Size 16K. Dimensions: 217.6 mm × 103.35 mm × 27.8 mm - Weight: 0.555Kg.

Reference: DS-3E0310P-E/M

Brand: Hikvision

EAN: 6941264044413

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NETWORK SWITCH 8 ETHERNET PORTS - 8 PoE 10 / 100M PORTS + 2 RJ45 GIGABIT PORTS - HIKVISION - DS-3E0310P-E / M

Hikvision
Ethernet switch - Hikvision - DS-3E0310P-E / M
8 Ethernet Ports - 8 PoE 10 / 100Mbps Port - 2 10/100 / 1000Mbps RJ45 Ports - Total 10 Ports - Mac Address 16K - Switching Capacity 5.6Gbps - PoE Power Budget: 60W - Dimensions: 217.6 mm × 103.35 mm × 27.8 mm - Weight: 0.555Kg - Fanless design - Made of resistant metal - 6KV lightning protection on PoE ports - Stardand mode and extended mode operating modes - 4Mbits internal cache - Wire Speed Forwarding - Data transmission up to 300m on 8 PoE ports. Hikvision DS-3E0310P-E / M.

Product details

  • Network Switch - Hikvision
  • From 8 doors
  • 8 10/100 Mbps PoE port
  • 2 10/100 / 1000Mbps RJ45 ports
  • 10 total doors
  • Data transmission up to 300m on PoE ports 1-8
  • High strength metal
  • Fanless design
  • MAC Table Size 16K
  • Dimensions: 217.6mm × 103.35mm × 27.8mm
  • Weight: 0.555Kg

Data sheet

Model DS-3E0310P-E / M
Network parameters
Port Number 8 × 10 / 100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Port type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
Ports for long-distance transmission Ports 1 to 8
MAC address table 16 K
Switching capacity 5.6 Gbps
Packet forwarding rate 4.1664 Mpps
Internal cache 4 Mbits
Dialing Functions
Long range Ports 1 to 8: up to 300 m.
PoE Power Supply
Standard PoE Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port Ports 1 to 8
Max. Port power Ports 1 to 8: 30 W
PoE power budget 60 W
Max. Power consumption 120 W
General
Shell Metal material, fan-free design
Gross weight 1.20 kg (2.65 lb)
Net weight 0.555 kg (1.22 lb)
Dimension (L × H × D) 217.6 mm × 103.35 mm × 27.8 mm (8.57 "× 4.07" × 1.09 ")
Operating temperature -10 ° C to 40 ° C (14 ° F to 104 ° F)
Storage temperatures -40 ° C to 85 ° C -40 ° F to 185 ° F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption in idle <5W
Max. Power consumption 65 W
Power source 65 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 610003-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CELVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
