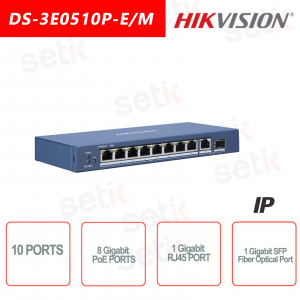

10 Port Hikvision Switch ~ 8 Gigabit PoE Ports ~ 1 Gigabit RJ45 Port ~ 1 SFP Fiber Optic Port Network Switch
-35%
The DS-3E0510P-E / M by Hikvision, is a 10 Port, 8 Gigabit PoE Port (IEEE 802.3af, IEEE 802.3at) network switch, 1 Gigabit RJ45 port, 1 Gigabit SFP Fiber Optic Port. Metal, Reliable fanless design.
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
DAHUA 8X8 ×
DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH
QUANTITY DISCOUNT AND FREE SHIPPING!
DISCOVER THEM NOW >>
NETWORK SWITCH 10 ETHERNET PORTS - 8 GIGABIT PoE PORTS - 1 GIGABIT RJ45 PORT - GIGABIT SFP FIBER OPTIC PORT - HIKVISION
Ethernet switch - Hikvision10 Ethernet Ports - 8 GIGABIT PoE Ports - 1 GIGABIT RJ45 Port - 1 SFP Fiber Optic Port - 4K Mac Address - Switching Capacity 20Gbps
Product details
- Network Switch - Hikvision
- 10 Ethernet ports
- 8 GIGABIT PoE ports
- 1 GIGABIT RJ45 port
- 1 GIGABIT SFP Fiber Optic Port
- Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- PoE Standards Supported: IEEE 802.3af, IEEE 802.3at
- Metal - no fans equipped
- Dimensions: 217.6 mm × 27.8 mm × 108.55 mm (8.6 "× 1.1" × 4.3 ")
Data sheet
| Model | DS-3E0510P-E / M |
| Network parameters | |
| Port Number | 8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port |
| Port type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| MAC address table | 4 K |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| Internal cache | 1.5 Mbits |
| PoE Power Supply | |
| Standard PoE | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cable 1/2/3/6 provide power supply |
| PoE port | Ports 1 to 8 |
| Max. Port power | 30 W |
| PoE power budget | 58 W |
| Max. Power consumption | 65 W |
| General | |
| Shell | Metal material, no fan equipped. |
| Gross weight | 0.635 kg (1.40 lb) |
| Net weight | 1.366 kg (3.01 lb) |
| Dimension (L × H × D) | 217.6 mm × 27.8 mm × 108.55 mm (8.6 "× 1.1" × 4.3 ") |
| Operating temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Storage temperatures | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 1.35 A |
| Power consumption in idle | 7 W |
