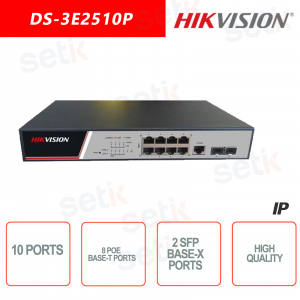

NETWORK SWITCH 10 ETHERNET PORTS - 8 PoE 10/100 / 1000Base-T ports (IEEE802.3af, IEEE802.3at) - 2 1000Base-X SFP ports - 1 HIKVISION Console Port
Gigabit ethernet switch - Hikvision10 Ethernet Ports - 8 PoE 10/100 / 1000Base-T Ports (IEEE802.3af, IEEE802.3at) - 2 1000Base-X SFP Ports - 1 Console Port - Mac Address 8K - Switching Capacity 20Gbps
Product details
- Network Switch - Hikvision
- 10 Ethernet ports
- 8 PoE 10/100 / 1000Base-T ports (IEEE802.3af, IEEE802.3at)
- 2 x 1000Base-X SFP ports
- 1 Console Port
- PoE Standards Supported: IEEE802.3af, IEEE802.3at
- More information on functions and features in the brochure
- Dimensions: 280mm × 45mm × 179mm
Data sheet
| Model | DS-3E2510P |
| Network parameters | |
| Port Number | 8 x 10/100 / 1000Base-T PoE ports, 2 1000Base-X SFP ports, 1 Console port |
| Switching capacity | 20Gbps |
| Packet forwarding rate | 15Mpps |
| MAC address table | 8K |
| Dimensions (L × H × D) | 280mm × 45mm × 179mm |
| Consumption | <15W |
| Standard POE | IEEE802.3af, IEEE802.3at |
| POE power budget | 125W |
| Power supply | AC ： 100V-240V ， 50Hz ± 10% |
| Environment | Operating temperature / humidity: 0 ℃ -45 ℃ ， 5% -95% non-condensing Storage temperature / humidity: -20 ℃ -70 ℃ ； 5% -95% non-condensing |
| MAC exchange | Static configuration and dynamic MAC learning; MAC browsing and removal Configurable aging time of the MAC address; Limited number of learnable MAC addresses; MAC filtration |
| VLAN | 4K VLAN; GVRP; QinQ; Private VLAN |
| STP | 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection |
| Multicast | IGMP v1 / v2 / v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation |
| QoS | Flow classification based on L2 ~ 4 protocols CAR flow limit 802.1P / DSCP priority re-labeling SP, WRR, and "SP + WRR" Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping |
| Security | L2 / L3 / L4 ACL flow identification and filtration DDoS attack prevention, TCP's SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast / multicast / unknown unicast storm-control Port isolation Port security, and “IP + MAC + port” binding |
| Reliability | Static / LACP link aggregation EAPS and ERPS |
| Management | Console, Telnet, SSH2.0, Web SNMP v1 / v2 / v3 TFTP RMON |
Further details
No additional details
