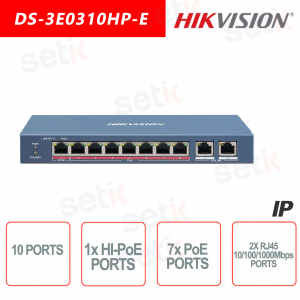

NETWORK SWITCH 10 ETHERNET PORTS - 1 HI-PoE PORT - 7 PoE PORTS - 2 10/100 / 1000Mbps RJ45 PORTS - HIKVISION
Ethernet switch - Hikvision10 Ethernet Ports - 1 HI-PoE 10 / 100Mbps Port - 7 10 / 100Mbps PoE Ports - 2 10/100 / 1000Mbps RJ45 Ports - Mac Address 16K - Switching Capacity 5.6Gbps
Product details
- Network Switch - Hikvision
- 10 Ethernet ports
- 1 HI-PoE 10/100 Mbps port
- 7 PoE 10/100 Mbps ports
- 2 10/100 / 1000Mbps RJ45 ports
- Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- PoE Standards Supported: Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 8: IEEE 802.3af, IEEE 802.3at - Metal - Fanless design
- Dimensions: 217.6 mm × 27.8 mm × 103.35 mm (8.6 "× 1.1" × 4.1 ")
Data sheet
| Model | DS-3E0310HP-E |
| Network parameters | |
| Port Number | 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports |
| Port type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 16 K |
| Switching capacity | 5.6 Gbps |
| Packet forwarding rate | 4,166 Mpps |
| Internal cache | 4 Mbits |
| PoE Power Supply | |
| Standard PoE | Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously |
| PoE port | Ports 1 to 8 |
| Max. Port power | Port 1: 90 W Ports 2 to 8: 30 W |
| PoE power budget | 110 W |
| Max. Power consumption | 120 W |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 1.22 kg (2.69 lb) |
| Net weight | 0.55 kg (1.21 lb) |
| Dimension (L × H × D) | 217.6 mm × 27.8 mm × 103.35 mm (8.6 "× 1.1" × 4.1 ") |
| Operating temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Storage temperatures | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 2.5 A |
| Power consumption in idle | 10 W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) |
| Chemistry | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
