6 Port Hikvision Switch ~ 1 HI-PoE Port ~ 3 PoE Ports ~ 2 RJ45 Ports Network switch

6 Port Hikvision Switch ~ 1 HI-PoE Port ~ 3 PoE Ports ~ 2 RJ45 Ports Network switch
-35%

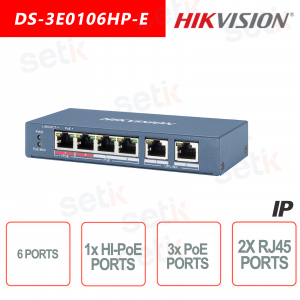

The DS-3E0106HP-E from Hikvision, is a 6 Port network switch , 1x 10 / 100Mbps HI-PoE Port, 3x 10 / 100Mbps PoE Ports and 2 10 / 100Mbps RJ45 Ports . Metal, fanless design.



Reference: DS-3E0106HP-E

Brand: Hikvision

EAN: 6954273693343

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NETWORK SWITCH 6 ETHERNET PORTS - 1 HI-PoE PORT - 3 PoE PORT - 2 RJ45 PORT - HIKVISION

Hikvision Ethernet switch - Hikvision
6 Ethernet ports - 1 HI-PoE 10 / 100Mbps port - 3 10 / 100Mbps PoE ports - 2 10 / 100Mbps RJ45 ports - Mac Address 2K - 1.2Gbps switching capacity - High priority port 1 and 2

Product details

Switch di rete 6- Hikvision
  • Network Switch - Hikvision
  • 6 Ethernet ports
  • 1 HI-PoE 10/100 Mbps port
  • 3 10/100 Mbps ports
  • 2 10 / 100Mbps RJ45 ports
  • Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • PoE Standards Supported: IEEE 802.3af, IEEE 802.3at
  • Metal - Fanless design
  • Dimensions: 145mm × 25.6mm × 68.45mm (5.7 "× 1.0" × 2.7 ")

Data sheet

Model DS-3E0106HP-E
Network parameters
Port Number 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
Port type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 2
Ports for long-distance transmission Ports 1 to 4
MAC address table 2 K
Switching capacity 1.2 Gbps
Packet forwarding rate 0.893 Mpps
Internal cache 768 Kbits
PoE Power Supply
Standard PoE Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE port Ports 1 to 4
Max. Port power Port 1: 60 W
Ports 2 to 4: 30 W
PoE power budget 60 W
Max. Power consumption 65 W
General
Shell Metal material, fan-free design
Gross weight 0.77 kg (1.70 lb)
Net weight 0.24 kg (0.53 lb)
Dimension (L × H × D) 145 mm × 25.6 mm × 68.45 mm (5.7 "× 1.0" × 2.7 ")
Operating temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage temperatures -40 ° C to 85 ° C (-40 ° F to 185 ° F
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption in idle 5 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
