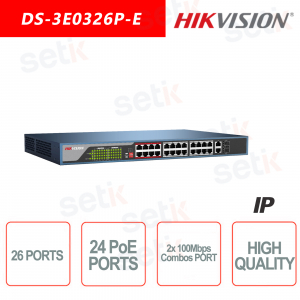

Hikvision Switch 26 Ports ~ 24 PoE Ports 100Mbps ~ 2 Ports Combo100Mbps Network Switch

Hikvision Switch 26 Ports ~ 24 PoE Ports 100Mbps ~ 2 Ports Combo100Mbps Network Switch
-35%

Il DS-3E0326P-E di Hikvision, è uno switch di rete 26 Porte, 24 Porte supportano PoE (IEEE 802.3af, IEEE 802.3at), 2 Porte Combo 10/1000Mbps. Metallo.



Reference: DS-3E0326P-E

Brand: Hikvision

EAN: 6941264013983

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


SWITCH DI RETE 26 PORTE - 24 Porte PoE 100Mbps - 2 Porte COMBO 1000Mbps - HIKVISION

HikvisionSwitch ethernet -Hikvision
26 Porte Ethernet - 24 Porte PoE 100 Mbps - 2 Porte 1000Mbps Combo - Mac Address 16K - Capacità di commutazione 8.8Gbps

Dettagli prodotto

Switch di rete 26 - Hikvision
  • Switch di rete - Hikvision
  • 26 Porte Ethernet
  • 24 Porte PoE 100 Mbps
  • 2 Porte 1000 Mbps Combo
  • Standard Supportati: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Standard PoE Supportati: IEEE 802.3af, IEEE 802.3at
  • Metallo
  • Dimensioni: 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)

Scheda tecnica

Model DS-3E0326P-E
General
Shell Metal material
Gross weight 3.54 kg (7.80 lb)
Net weight 2.785 kg (6.14 lb)
Dimension (L × H × D) 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.69”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Power consumption in idle 30 W
Max. Power Consumption 400 W
Installation Mode Rack (equipped with mounting ears)
Surge Protection 6 KV
Network parameters
Port Number 24 × 10/100 Mbps PoE ports, 2 × Gigabit combos
MAC address table 16 K
Switching capacity  8.8 Gbps
Packet forwarding rate 6.55 Mpps
Internal cache 4 Mbits
PoE Power Supply
PoE standard  IEEE 802.3af, IEEE 802.3at
PoE power pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE port Ports 1 to 24
Max. port power  30 W
PoE power budget 370 W
Dialing Function
Long Rage Ports 17 to 24: up to 300 m; Long range performance may vary depend on camera model or cable condition.
Port Isolation Port 1 to 24: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog Port 1 to 24: auto detect and restart the cameras that do not respond
Software Function
VIP Port Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Approval
EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU)

Ulteriori dettagli

Nessun dettaglio aggiuntivo

Download

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
