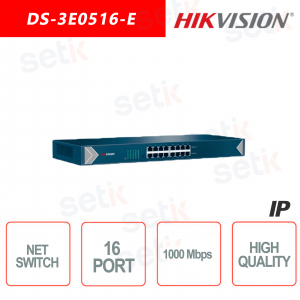

Hikvision Switch 16 Ports 10/100/1000 Mbps RJ45 Network sw

Hikvision Switch 16 Ports 10/100/1000 Mbps RJ45 Network sw
-35%

Hikvision's DS-3E0516-E is a 16 -port Ethernet network switch with fast transmissions at rates of 10/100/1000 Mbps, up to 32 Gbps bandwidth.

Reference: DS-3E0516-E

Brand: Hikvision

EAN: 6941264078432

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


16-PORT NETWORK SWITCH 10/100/1000 Mbps - 32Gbps - HIKVISION

Hikvision Ethernet switch -Hikvision
16 Ports - 10/100/1000 Mbps fast transmissions - Plug and Play without configuration - IEEE802.3x full duplex flow control and half duplex back pressure flow control - Up to 4kV - table and wall installation

Product details

Switch di rete 16 - Hikvision
  • Network switch - Hikvision
  • 16 10/100 / 1000Mbps auto-negotiation RJ45 ports
  • Compliant with Ethernet standard IEEE802.3, IEEE802.3u, IEEE802.3ab
  • Plug and play without configuration
  • Up to 32 Gbps of back panel bandwidth and supports forwarding at non-blocking wire speed
  • LEDs to easily monitor link speed, activity and find problems in time
  • IEEE802.3x full duplex flow control and half duplex back pressure flow control
  • Loop detection and loop prevention
  • Up to 4 kV lightning proof for each door
  • Table and wall installation
  • The metal coating and the larger shell ensure effective cooling

Data sheet

Network Standard

IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x

Transmission Speed

Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex)

Fast Ethernet: 100 Mbps (half-duplex) / 200 Mbps (full-duplex)

Gigabit Ethernet: 2000 Mbps (full-duplex)

Transmission Medium

Ethernet: CAT3 or better UTP / STP cable

Fast Ethernet: CAT5 or better UTP / STP cable

Gigabit Ethernet: CAT5E or CAT6 UTP / STP cable (recommended)

Ports

16 * 10/100 / 1000Mbps auto-negotiation RJ45 ports

Port Type

Port loopguard Supported
Uplink port Port 15 and port 16

Lightning-proof Ranking

RJ45 4 kV port
Power source 4 kV

LED Indicator

1 power LED

16 Link / Act LED

Dimensions (L * W * H)

440mm × 178.8mm × 44mm

Store-and-forward

supported

MAC address table

8 k

MAC address learning

Automatic learning / Aging

Package filtering / Forwarding rate

Ethernet: 14881 pps one port

Fast Ethernet: 148810 pps one port

Gigabit Ethernet: 1488100 pps one port

Bandwidth backplane

32 Gbps

Power supply

Input: 100-240 V AC, 50/60 Hz

Power consumption

≤12w

COperating temperatures

0 ° C - 40 ° C

Operating humidity

(10-90)% RH, non-condensing

Storage temperatures

-40 ° C - 70 ° C

Storage humidity

(5-90)% RH, non-condensing

Further details

No additional details
