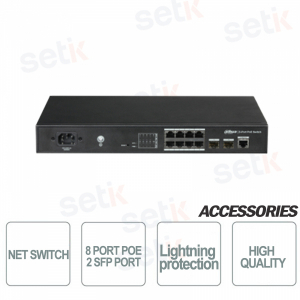

NETWORK SWITCH 8 POE PORTS + 2 SFP PORTS - DAHUA
Industrial PoE switch - Dahua8 PoE Ports + 2 SFP Port - Fast Transmissions 10 / 100 / 1000Mbps
Supported standards IEEE802.3af, IEEE802.3at
Product details
- PoE network switch - Dahua
- 8 PoE ports + 2 SFP port
- Fast transmissions at rates of 10 / 100 / 1000 Mbps
- Supported standards: IEEE802.3af, IEEE802.3at
- MAC auto study and aging, MAC address list capacity 8K
- Compatible with Fiber Modules: PFT3950 - PFT3960 - PFT3970
- Power supply included
- Dimensions: 340mm x200mm x44mm
Data sheet
| model | PFS4210-8GT-150 |
| ethernet port | 8*10/100/1000Base-T (PoE power supply) |
| RS232 Serial Console | 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1 |
| PoE Power Consumption | Each power ≤30W, Total ≤150W |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| PoE Budget | ≤120W |
| PoE PIN Assignment | 1, 2(V+), 3, 6 (V-) 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Packet Buffer Memory | 4Mb |
| Application Humidity | 5%~95% |
| Power | AC100-240V, 50/60Hz |
| lightning protection | Common Mode 2KV Differential Mode 1KV |
| Working Temperature | 0°C~45°C |
| Dimensions (WxDxH) | 340mm x200mm x44mm |
Further details
Downloads
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
