The Hikvision DS-3T0510HP is an 8-port 10/100 Mbps PoE network switch, 1 Gigabit RJ45 port and 1 Gigabit SFP slot for fiber optic connections. The PoE ports support IEEE 802.3af/at/bt standards, with a maximum power of 90W for ports 1 and 2, and up to 30W for ports 3 to 8, providing a total PoE budget of 110W. Surge protection up to 6kV and PoE watchdog function ensure stable operation, automatically detecting and rebooting unresponsive cameras. The fanless design and metal body ensure quiet and robust operation over a temperature range of -40°C to +75°C.
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
ALARM HIKVISION×
SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE | DS-PWA96-M2H-WE | DS-PWA96-Kit-WE
Take advantage now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

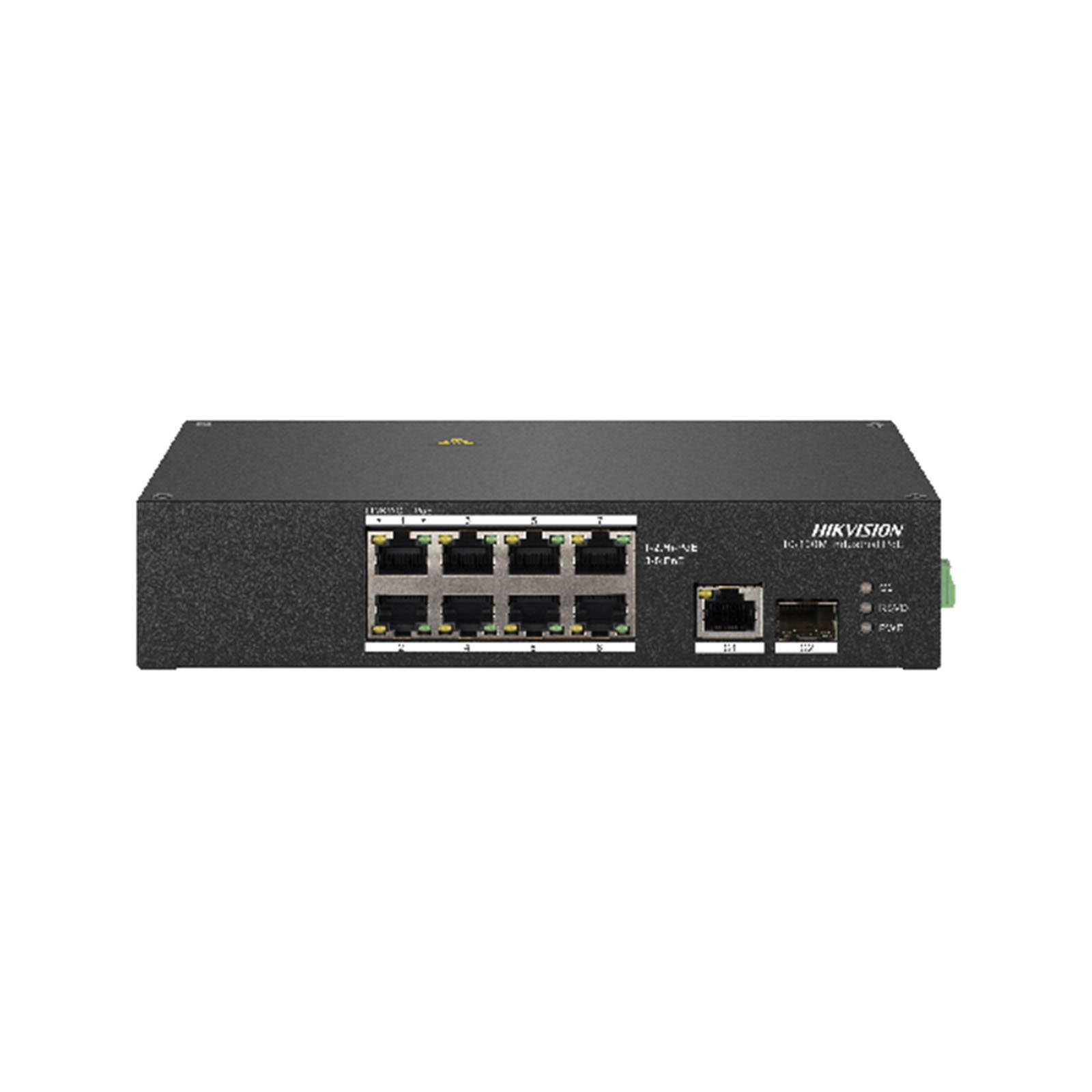

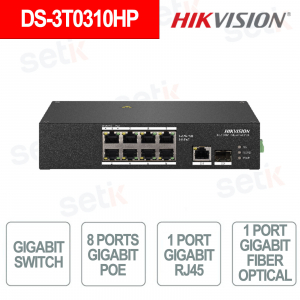

8 PORT GIGABIT POE NETWORK SWITCH +1 GIGABIT RJ45 PORT + 1 GIGABIT FIBER OPTIC PORT - HIKVISION
8 Gigabit PoE Ports + 2 Gigabit Fiber Optic - PoE Ports: 6KV Surge Protection & IEEE 802.3at/af/bt Standard - Max Power Consumption: 120W - Max PoE Consumption: 120W - Reliable Fanless Design
Product details
- Switch not manageable - Hikvision
- 8 Gigabit PoE Ports +2 Gigabit Fiber Optic
- IEEE 802.3at/af/bt standard for PoE ports (PoE output max. 30W)
- IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- 6KV Surge Protection for PoE Ports
- Wider temperature design (-40°C to 85°C)
- Dimensions: 197 x 114.2 x 42.2 mm
- Solid high strength metal shell
- Reliable fanless design
Technical data sheet
| Model | DS-3T0310HP |
| General | |
| Power supply | 48 to 57 VDC, 2.5A |
| Surge Protection | 6kV |
| Storage temperatures | -40 °C to 85 °C (-40 °F to 185 °F) |
| Shell | Metal material, fan-free design |
| Gross weight | 0.565 kg (1.25 lb) |
| Net weight | 1.24 kg (2.73 lb) |
| Dimensions (L × H × D) | 197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”) |
| Operating temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Max. power consumption | 120W |
| Power source | 10W |
| Installation Mode | Desk Mounted, Rail |
| Network parameters | |
| Port | 8 × 10/100Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC address table | 4K |
| Switching capacity | 5.6 Gbps |
| Packet forwarding rate | 4.17 Mpps |
| Internal cache | 1.5 Mbits |
| PoE Power Supply | |
| PoE standard |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE power pin | Ports 3-6： End-span: 1/2(-), 3/6(+)； Ports 1-2，Ports 7-8： 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE port | Hi-PoE: Ports 1 to 2,PoE: Ports 3 to 8 |
| Max. power port |
30W |
| PoE power budget | 110W |
| Dialling function | |
| Long Range | Ports 7 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| Switching capacity | 5.6 Gbps |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
