DS-3T0510P is an 8-port Gigabit industrial unmanaged PoE switch, designed for harsh environments. It offers 8 Gigabit PoE ports and 2 Gigabit SFP slots , supporting IEEE 802.3af/at standards with a maximum power of 30W per port and a total PoE budget of 240W . The fanless die-cast aluminum alloy structure ensures reliable operation in a temperature range of -40°C to +75°C. The switching capacity is 20Gbps, with a 4K MAC table.
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
ALARM HIKVISION×
SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE | DS-PWA96-M2H-WE | DS-PWA96-Kit-WE
Take advantage now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

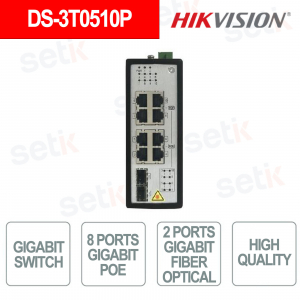

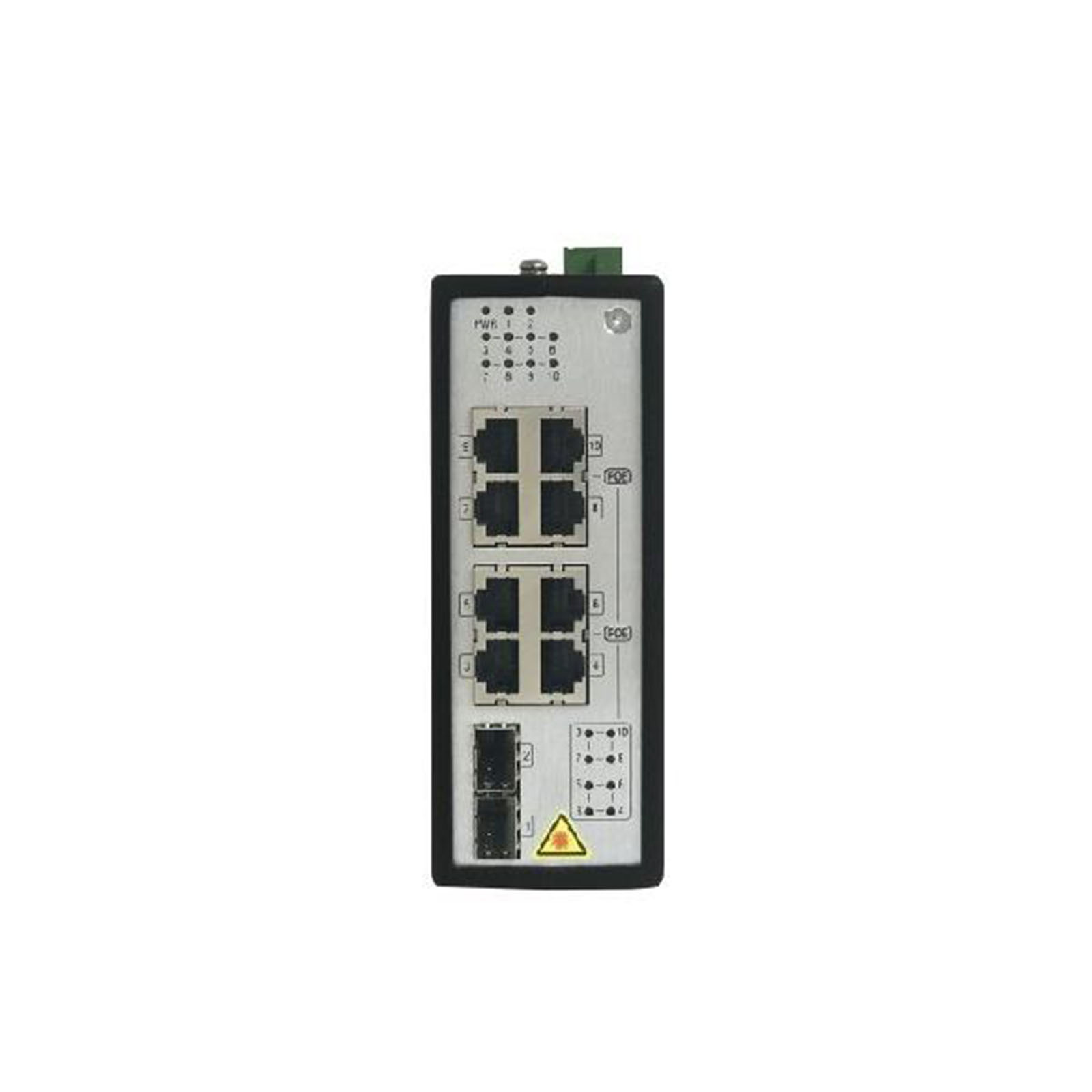

8-PORT GIGABIT POE + 2-PORT GIGABIT FIBER OPTIC NETWORK SWITCH - HIKVISION
8 Gigabit PoE Ports + 2 Gigabit Fiber Optic - PoE Ports: 6KV Surge Protection & IEEE 802.3at/af/bt Standard - Max Power Consumption: 30W - Max PoE Consumption: 240W - Reliable Fanless Design
Product details
- Switch not manageable - Hikvision
- 8 Gigabit PoE Ports +2 Gigabit Fiber Optic
- IEEE 802.3at/af/bt standard for PoE ports (PoE output max. 30W)
- IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- 6KV Surge Protection for PoE Ports
- Wider temperature design (-40°C to 75°C)
- Dimensions: 52 x 114.2 x 42.2 mm
- Solid high strength metal shell
- Reliable fanless design
Technical data sheet
| Model | DS-3T0510P |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 0.8kg (1.76lb) |
| Net weight | 1.3 kg (2.87 lb) |
| Dimensions (L × H × D) | 52.0 mm × 140.0 mm × 110.0 mm (2.05'' × 5.51'' × 4.33'') |
| Operating temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Storage temperatures | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48V DC, 3.13A |
| Max. power consumption | 250W |
| Power source | 10W |
| Installation Mode | Desk Mounted, Rail |
| Surge Protection | 6kV |
| Network parameters | |
| Port | 8 × Gigabit PoE port,2 × Gigabit fiber optical port |
| MAC address table | 4K |
| Switching capacity | 20 Gbps |
| PoE Power Supply | |
| PoE standard |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE power pin | 8-pin power: 1/2(-), 3/6(+) |
| PoE port | PoE: Ports 1 to 8 |
| Max. power port |
30W |
| PoE power budget | 240W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
