Hikvision's DS-3T0506HP is a 4-Port Gigabit PoE + 2 Gigabit Fiber Optic Network Switch. 6KV surge protection and IEEE 802.3at/af/bt standards for PoE ports , port isolation to enhance network security. Reliable fanless design and wider temperature range (-40°C to 85°C).
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
DAHUA 8X8 ×
DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH
QUANTITY DISCOUNT AND FREE SHIPPING!
DISCOVER THEM NOW >>

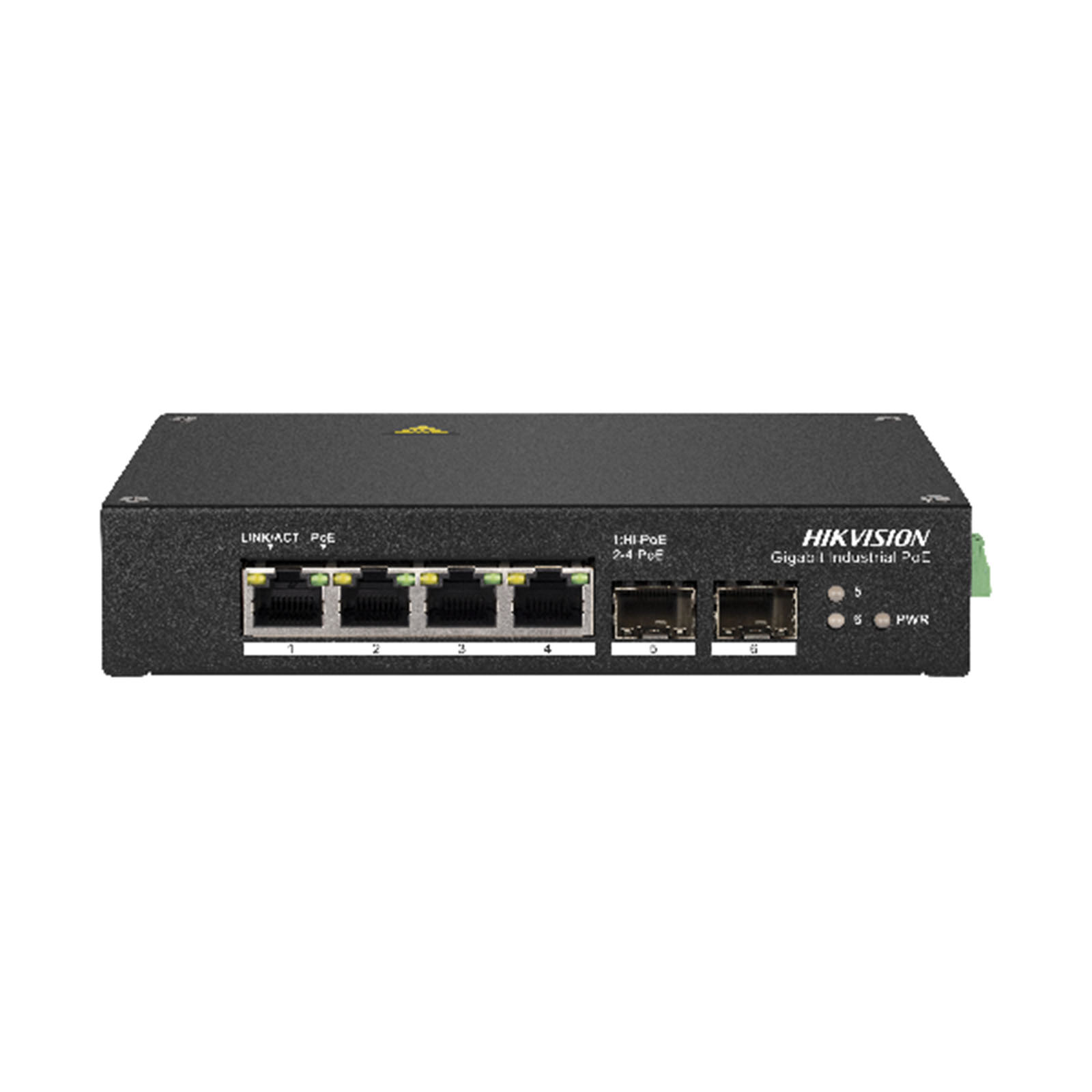

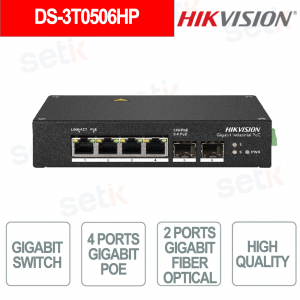

4-PORT GIGABIT POE + 2-PORT GIGABIT FIBER OPTIC NETWORK SWITCH - HIKVISION
Network Switches - Hikvision
4 Gigabit PoE Ports + 2 Gigabit Fiber Optic - PoE Ports: 6KV Surge Protection & IEEE 802.3at/af/bt Standard - Max Power Consumption: 120W - Max PoE Consumption: 110W - Reliable Fanless Design
4 Gigabit PoE Ports + 2 Gigabit Fiber Optic - PoE Ports: 6KV Surge Protection & IEEE 802.3at/af/bt Standard - Max Power Consumption: 120W - Max PoE Consumption: 110W - Reliable Fanless Design
Product details
- Switch not manageable - Hikvision
- 4 Gigabit PoE Ports +2 Gigabit Fiber Optic
- IEEE 802.3at/af/bt standard for PoE ports (PoE output max. 30W)
- IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- 6KV Surge Protection for PoE Ports
- Wider temperature design (-40°C to 85°C)
- Dimensions: 158 x 101.2 x 31.6 mm
- Solid high strength metal shell
- Reliable fanless design
Technical data sheet
| Model | DS-3T0506HP |
| General | |
| Power supply | 48 to 57 VDC, 2.5A |
| Surge Protection | 6kV |
| Storage temperatures | -40 °C to 85 °C (-40 °F to 185 °F) |
| Shell | Metal material, fan-free design |
| Gross weight | 0.94 kg (2.07 lb) |
| Net weight | 0.38 kg (0.84 lb) |
| Dimensions (L × H × D) | 158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”) |
| Operating temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Max. power consumption | 120W |
| Power source | 10W |
| Installation Mode | Desk Mounted, Rail |
| Network parameters | |
| Port | 4 × Gigabit PoE port,2 × Gigabit fiber optical port |
| MAC address table | 2K |
| Switching capacity | 12 Gbps |
| Packet forwarding rate | 8.928 Mpps |
| Internal cache | 1.0 Mbits |
| PoE Power Supply | |
| PoE standard |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE power pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE port | Hi-PoE: Ports 1 to 1,PoE: Ports 2 to 4 |
| Max. power port |
30W |
| PoE power budget | 110W |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
