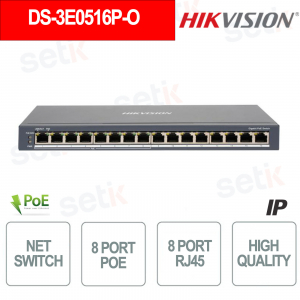

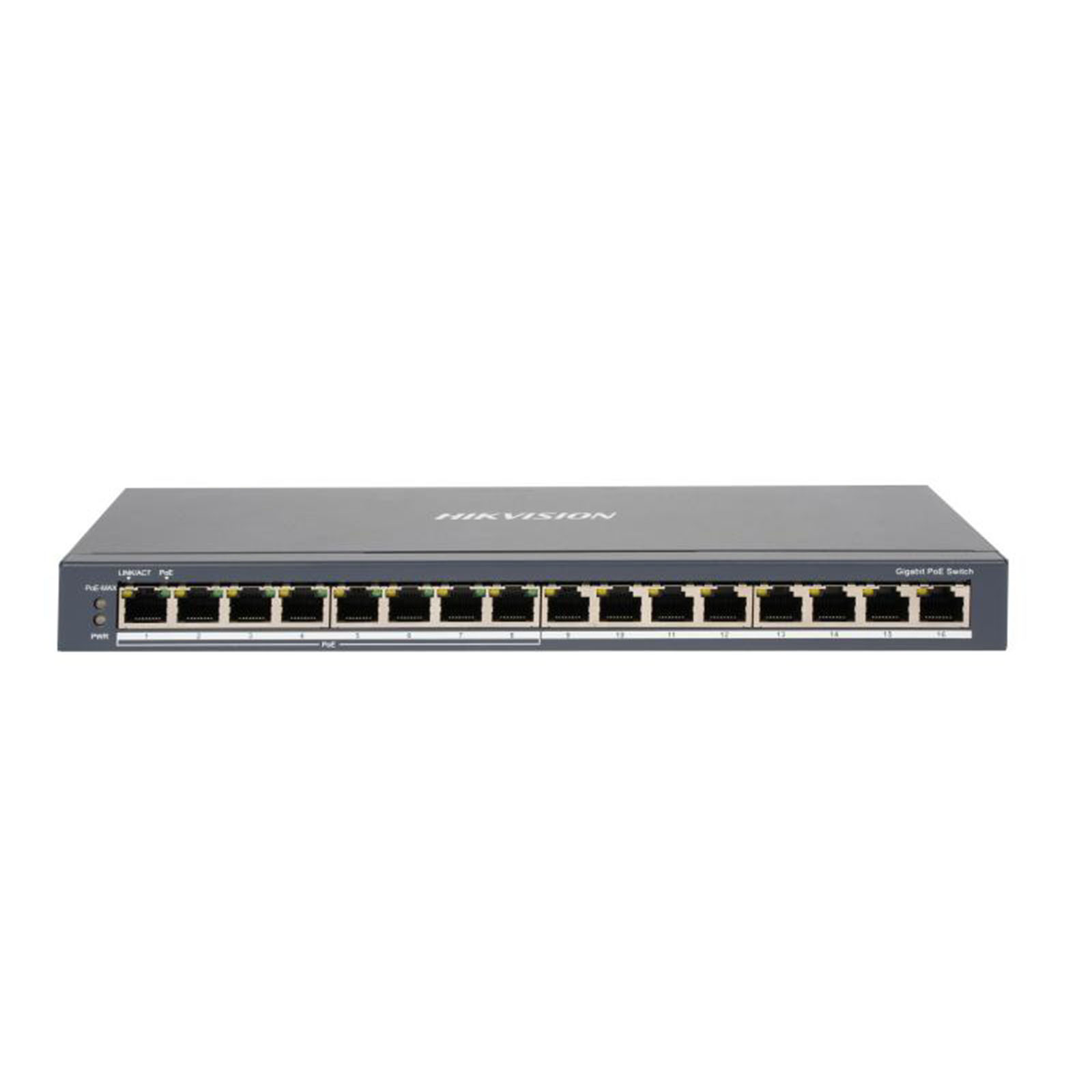

NETWORK SWITCH 16 PORTS, 8 POE PORTS & 8 RJ45 PORTS - 32Gbps - HIKVISION
Ethernet Switch -Hikvision
16 Ports - 8 PoE ports & 8 Rj45 ports - Plug and Play without configuration - IEEE 802.3at,IEEE 802.3af full duplex flow control and half duplex back pressure flow control - Up to 6kV - max consumption 30W - 8K MAC - table and wall installation
16 Ports - 8 PoE ports & 8 Rj45 ports - Plug and Play without configuration - IEEE 802.3at,IEEE 802.3af full duplex flow control and half duplex back pressure flow control - Up to 6kV - max consumption 30W - 8K MAC - table and wall installation
Product details
- Network Switches - Hikvision
- 16 ports (8 PoE ports & 8 RJ45 ports)
- Complies with the IEEE 802.3at,IEEE 802.3af Ethernet standard
- Plug and play without configuration
- Up to 32Gbps back panel bandwidth and supports non-blocking wire-rate forwarding
- LEDs to easily monitor link speed, activity and find problems in time
- Loop detection and loop prevention
- Up to 6 kV lightning proof for each port
- 8K MAC
- Maximum power consumption 30W
- Max PoE Power: 110W

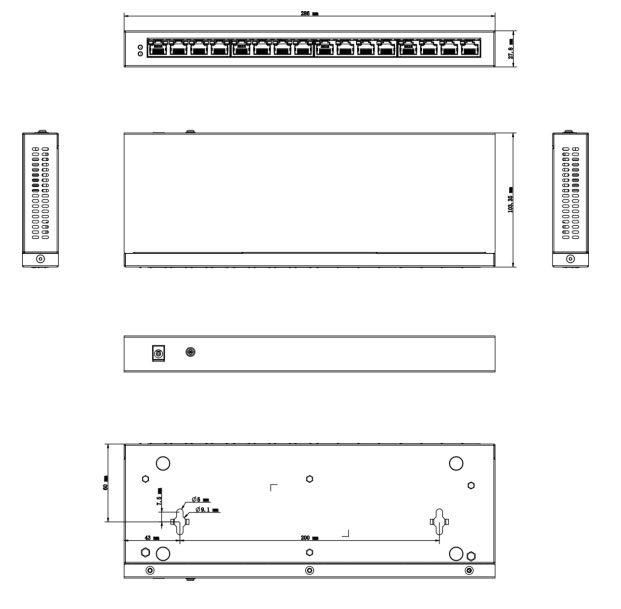

- Dimensions 286 x 103.35 x 27.8 mm
Technical data sheet
| DS-3E0516P-O | |
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 1,418 kg (2,204 lb) |
| Gross Weight | 0.62 kg (1.37 lb) |
| Dimensions (W × H × D) | 286.0 mm × 103.35 mm × 27.8 mm (11.26'' × 4.07'' × 1.09'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Power Supply | 54V DC, 2.22A |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 8×1 Gigabit PoE port,8×1 Gigabit RJ45 port |
| MAC Address Table | 8K |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.81 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Power Supply | |
| PoE Power Pin | End span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30W |
| PoE Standard | IEEE 802.3at,IEEE 802.3af |
| PoE Power Budget | 110W |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
Further details
Download
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
