TP-Link Omada EAP115 is an indoor WiFi N300 access point designed to provide fast, stable and reliable wireless connections in high-density environments, such as offices, schools and retail stores. With combined speeds of up to 300 Mbps in 2.4 Ghz. This device integrates seamlessly with the Omada SDN ecosystem, allowing centralized cloud management for simple and flexible network control. With a ceiling or wall-mount design, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP115 is the ideal choice for implementing modern, reliable and scalable business networks.
FIND INSTALLER
N300 CEILING AND WALL MOUNT INDOOR ACCESS POINT DUAL-BAND Wi-Fi - TPLINK OMADA
N300 Dual-Band Ceiling and Wall Mount Wi-Fi Access Point with 1 x Fast Ethernet Port (RJ-45). Offers 300Mbps speed in 2.4GHz. Supports power supply via PoE 802.3at or 9VDC/0.6A. Includes 4 internal antennas and advanced features such as Omni, Seamless Roaming, Band Steering, Beamforming, Load Balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- Wi-Fi N30 0 : Offers wireless speeds of up to 30 0 Mbps in 2.4 GHz .
- Perfect for crowded environments: The Wi-Fi standard quadruples the network capacity, allowing multiple devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet 802.3af PoE or 9VDC/0.6A.
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a length of 205.5mm, a height of 181.5mm and a thickness of 37.1mm, the EAP225 integrates seamlessly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP115 |
| HARDWARE FEATURES | |
| Interface | 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE) |
| Key | Reset |
| Diet | 802.3af PoE or external 9VDC/0.6A power supply |
| Energy consumption | 2.8W |
| Dimensions (L x W x H) | 7.5×6.7×1.2 in (189.5×170.5×29.7mm) |
| Antenna type | Internal 2×4 dBi Omni |
| Mounting type | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 60㎡(650ft²)§ |
| Wireless Client Capacity | 100+ |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal rate | 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) |
| Reception sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Wireless functionality | Multiple SSIDs（Up to 8 SSIDs Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission power | THERE IS: ≤19dBm FCC: ≤26dBm |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| EAP Controller | |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Omada SDN - Software Defined Networking
|
|
|

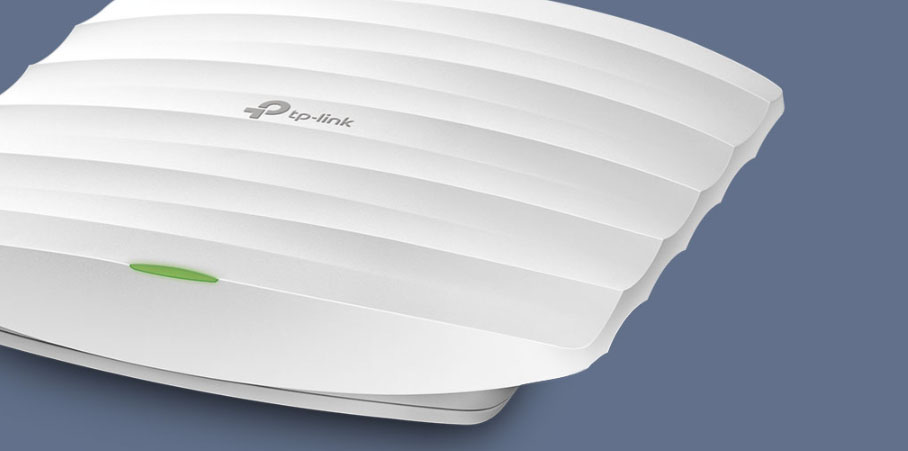

Flexible and fast positioning Omada EAP115, thanks to its elegant design and chassis designed for wall or ceiling mounting, is suitable for indoor installations. PoE support simplifies and makes the installation flexible and scalable.
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
