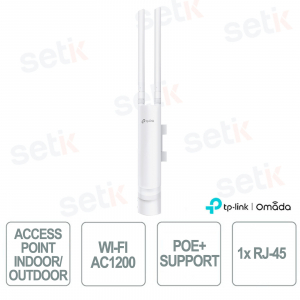

TP-Link Omada EAP225-Outdoor Access Point Indoor/Outdoor WiFi AC1200 MU-MIMO for High Density Enterprise Networks
TP-Link Omada EAP225-Outdoor is an Indoor / Outdoor WiFi AC1200 access point designed to provide fast, stable and reliable wireless connections in high-density environments, such as offices, schools and retail stores. With combined speeds of up to 1.2 Gbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. The TP-Link Omada EAP225-Outdoor is the ideal choice for implementing modern, reliable and scalable business networks. IP65 protection.
FIND INSTALLER
AC1200 ACCESS POINT INDOOR / OUTDOOR DUAL-BAND Wi-Fi MU-MIMO - TPLINK OMADA
AC1200 Dual-Band Wall Mount Wi-Fi Access Point with 1 x Gigabit Ethernet port (RJ-45). Offers speeds up to 1.2Gbps (300Mbps 2.4GHz and 867Mbps 5GHz). Supports 802.3af/at PoE and 24V Passive PoE. Includes 2 internal antennas and advanced features such as MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- AC1200 Wi-Fi : Offers wireless speeds up to 1.2Gbps (300Mbps 2.4GHz and 867Mbps 5GHz) .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3af/at PoE standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a length of 46mm, a height of 214.9mm and a thickness of 26.7mm, the EAP225-Outdoor model integrates perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP225-Outdoor |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE) |
| Key | Reset |
| Diet | 802.3af/at PoE 24V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included) |
| Energy consumption | 10.5W |
| Dimensions (L x W x H) | 8.5 × 1.8 × 1.1 in (214.9 × 46 × 26.7 mm) (without antenna & mounting kit) |
| Antenna type | 2 Dual-Band Omni Antennas (External Detachable) 2.4GHz: 2 x 3dBi 5GHz: 2 x 5dBi |
| Weatherproof Enclosure | IP65 |
| Mounting type | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless functionality | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission power | CE: <20 dbm="" 2="" 4="" ghz="" eirp="" 27="" 5="" br=""> FCC: <23 dbm="" 2="" 4="" ghz="" 22="" 5="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Yes |
| SSH | Yes |
| Web-based management | Yes |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | Access Point EAP225-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide Waterproof Rubber Insert Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Omada Mesh Technology
|
|
|

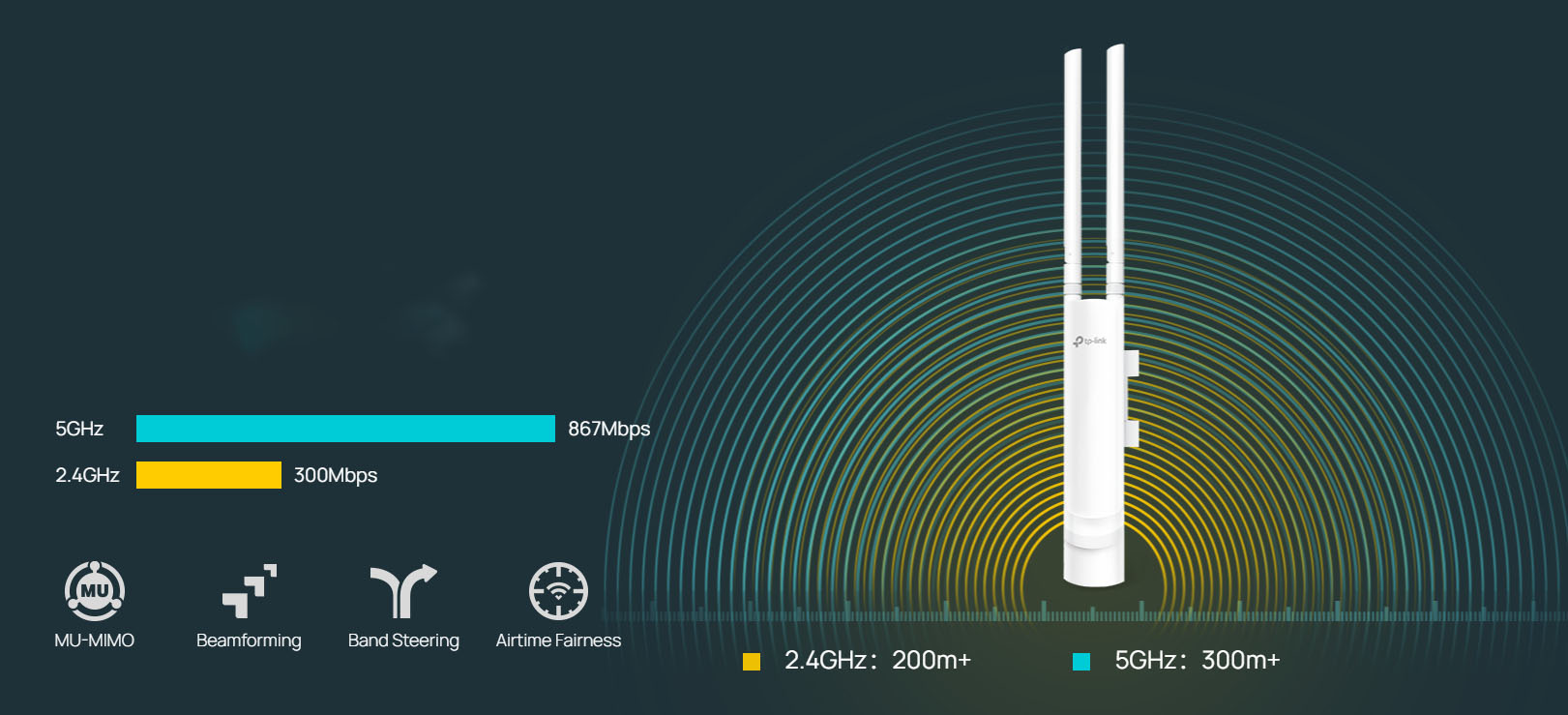

Long-distance wireless coverage with MU-MIMO technology
|
|
|

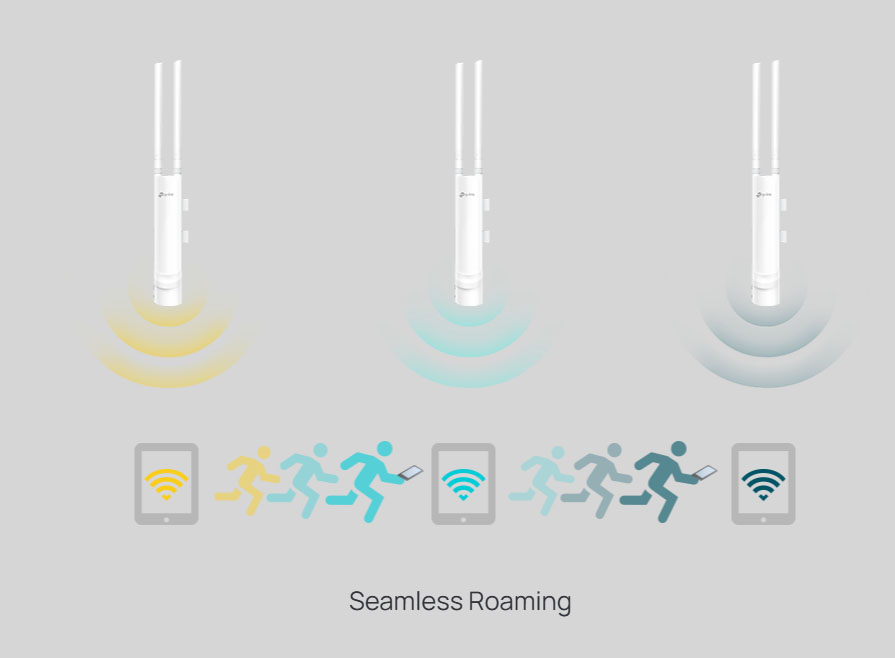

Seamless Roaming
|
|
|
Ideal for outdoor installations IP65 certification and water and dust resistant case.
|
|
|
Compact and elegant design The compact and functional design allows for various types of installation and fixing options both in indoor and outdoor environments.
|
|
|

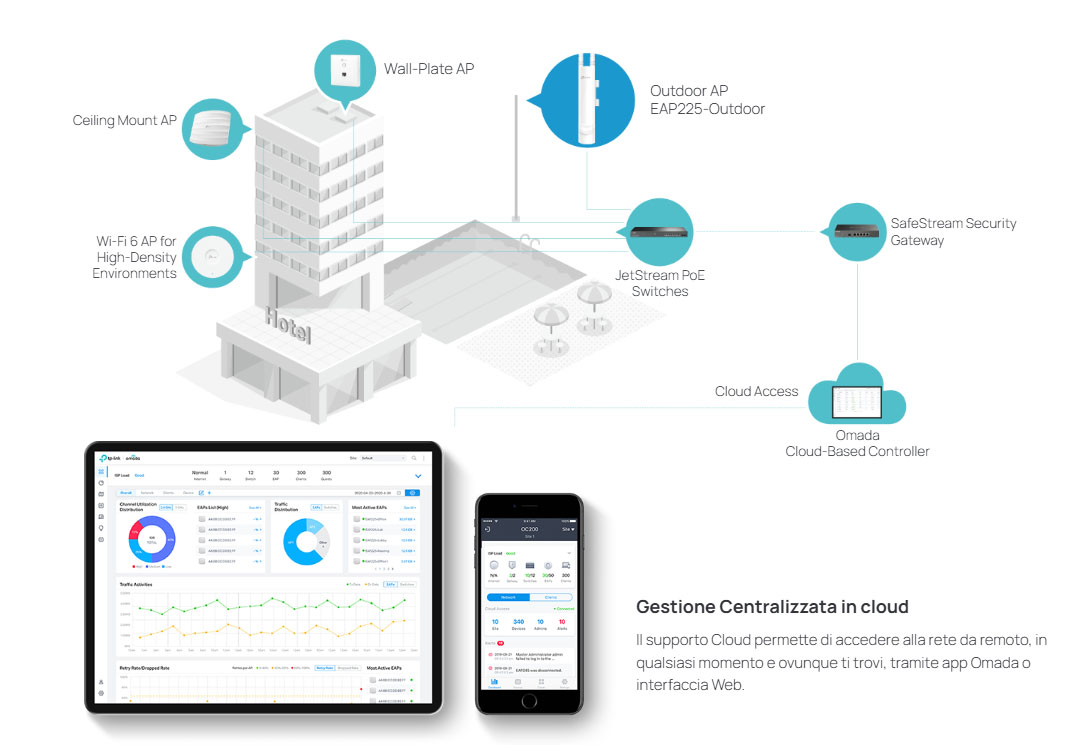

Omada SDN - Software Defined Networking Omada SDN is the new professional solution from TP-Link that integrates access points, switches and gateways managed by a single centralized Hybrid-Cloud or Full-Cloud controller, ensuring maximum efficiency, reliability and network security for your business.
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
