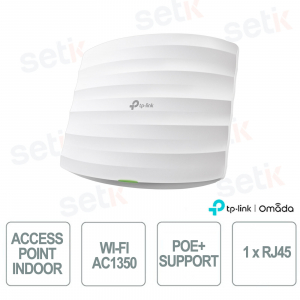

TP-Link Omada EAP225 is an AC1350 indoor WiFi access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 1.3 Gbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for easy and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP225 is the ideal choice for implementing modern, reliable and scalable business networks.
FIND INSTALLER
AC1350 INDOOR CEILING ACCESS POINT DUAL-BAND Wi-Fi MU-MIMO - TPLINK OMADA
AC1350 Dual-Band Ceiling Mount Wi-Fi Access Point with 1 x Gigabit (RJ-45) port. Offers speeds of 1.3Gbps (450Mbps in 2.4GHz and 867Mbps in 5GHz). Supports power supply via 802.3at PoE or 24V Passive PoE. Includes 4 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- AC1350 Wi-Fi : Offers wireless speeds of up to 1.3Gbps (450Mbps in 2.4GHz and 867Mbps in 5GHz) .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 5 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a length of 205.5mm, a height of 181.5mm and a thickness of 37.1mm, the EAP225 integrates seamlessly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP225 |
| HARDWARE FEATURES | |
| Interface | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) |
| Physical security lock | Yes |
| Key | Reset |
| Diet | 802.3at PoE 24V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included) |
| Energy consumption | EU: 10.5W US: 12.6W |
| Dimensions (L x W x H) | 205.5 × 181.5 × 37.1 mm |
| Antenna type | 3 Internal Omni 2.4GHz: 4dBi 5GHz: 5dBi |
| Mounting type | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 450Mbps |
| Wireless functionality | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission power | THERE IS: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <24dbm 2="" 4ghz="" br=""> <22dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes, through OC300 OC200 Omada Software Controller Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
High-performance Wi-Fi with MU-MIMO technology
|
|
|
Centralized Control in Cloud - Anytime, Anywhere Omada Hardware Controller OC200 and Omada Controller Software provide you with an intuitive and effective real-time network monitoring and control system, while cloud support allows you to quickly and securely access your network remotely, wherever you are.
|
|
|

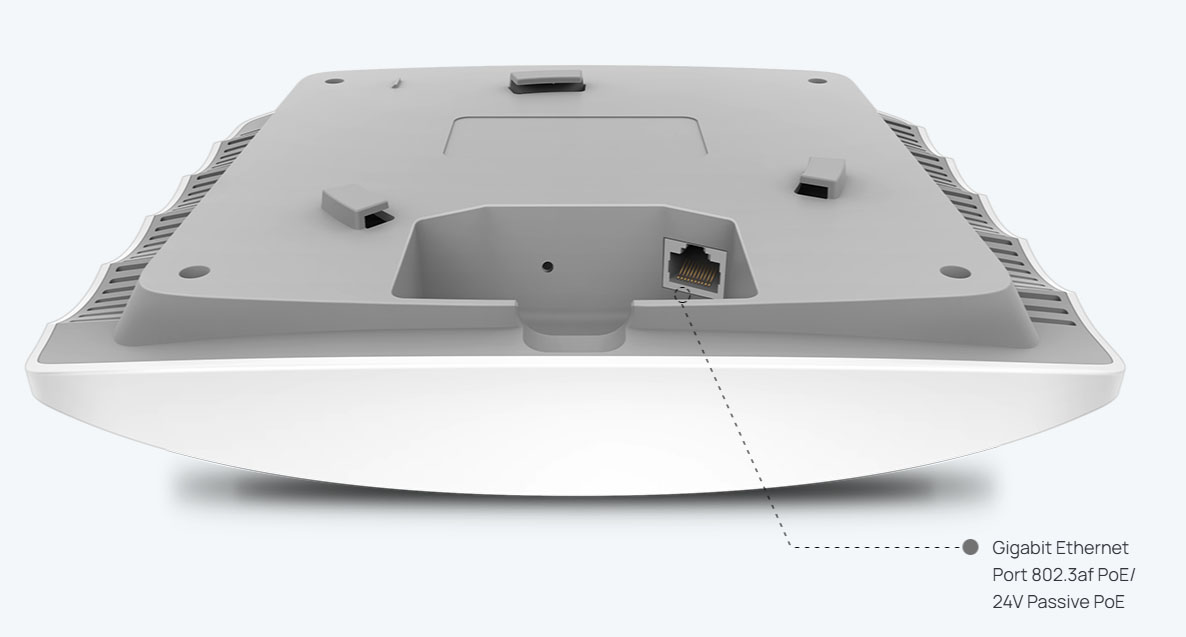

PoE support for easy installation
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
