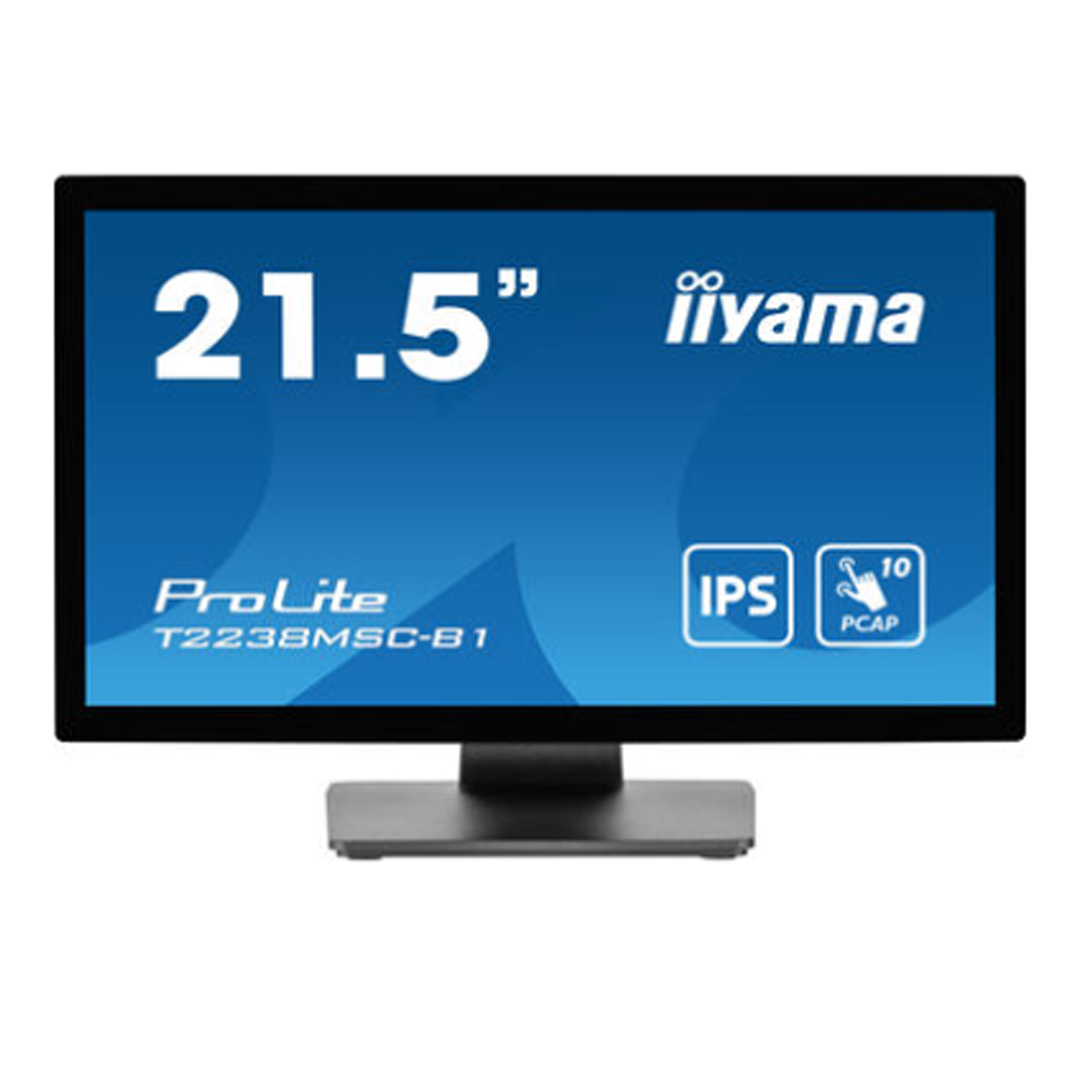

T2238MSC-B1 - IIYAMA - IPS LED Monitor - 21.5 Inch - 10-point Touchscreen - Scratch Resistance - With Speakers
The ProLite T2238MSC-B1 monitor It is a 21.5-inch IPS LED backlit monitor, with Full-HD resolution, with 5MS response time , HDMI Video Interface, Displayport, VESA, Scratch Resistance, 10-point PCAP Touchscreen, Android OS operating system and Stereo Speakers - IP1X protection - 2 USB ports - Energy class D
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
PROLITE LED MONITOR 21.5" FULL HD WITH SPEAKERS - CAPACITIVE TOUCHSCREEN - HDMI - DISPLAYPORT - SCRATCH RESISTANCE - IIYAMA T2238MSC-B1
LCD Monitor - IIYAMA - T2238MSC-B1
Size: 21.5" - Display with IPS technology - Full HD resolution 1920 x 1080P progressive
Equipped with Speakers - HDMI - DisplayPort - Scratch resistance - Capacitive Touchscreen 10 points PCAP - IP1X - USB Touch Interface - 2 USB ports - Android OS
3 Years Direct Manufacturer's Warranty
Product details
- Monitor: IIYAMA - T2238MSC-B1
- Type: IPS monitor
- 21.5" FULL HD 1920x1080P progressive display
- Integrated Stereo Speakers ( 2 x 2 W ~ Stereo)
- Vesa mount support: 100x100mm
- HDMI, DisplayPort
- Response time 5ms
- Typical 1000:1 contrast with touch
- Scratch resistance
- 10-point PCAP capacitive touchscreen
- Android OS operating system
- USB Touch Interface
- 2 USB ports
- Neat cable management system
- Edge to edge design
- OSD Key Lock
- Dimensions: 512.5 x 353.5 x 239.5mm
- Color: Black, Matte
Data sheet
| Model | T2238MSC-B1 |
| DISPLAY CHARACTERISTICS | |
| Diagonal | 21.5", 55cm |
| Design | Edge to edge glass |
| Panel | IPS |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 600 cd/m² |
| Brightness | 525 cd/m² with touch |
| Static Contrast | 1000:1 with touch |
| Light transmittance | 87% |
| Response Time | 5ms |
| Viewing Zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million |
| Horizontal Sync | 30 - 83kHz |
| Viewable area W x H | 479 x 260mm, 20.2 x 11.8" |
| Pixel pitch | 0.249mm |
| Colour | matte, black |
| TOUCH | |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output | HDMI x1 DisplayPort x1 |
| Audio output | Speakers 2 x 2W |
| HDCP | yes |
| USB ports | x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| FEATURES | |
| Extra | Optical bonding PCAP, metal housing, anti fingerprint coating, water proof touch function |
| Glass thickness | 3.6mm |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP1X (front) |
| Housing (bezel) | metal |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, CN, RU, JP, NL, PL |
| Control buttons | Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer , sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switches) |
| Blue light reducer | yes |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Display Position Adjustment | landscape, portrait, face-up |
| Fanless design | yes |
| VESA mounting | 100 x 100mm |
| ACCESSORIES INCLUDED | |
| Guides | quick start guide, safety guide |
| Cables | power, USB, HDMI |
| Cable Cover | Yes |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power usage | 17W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulation | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | D |
| REACH SVHC | above 0.1%: Leads |
| DIMENSIONS & WEIGHT | |

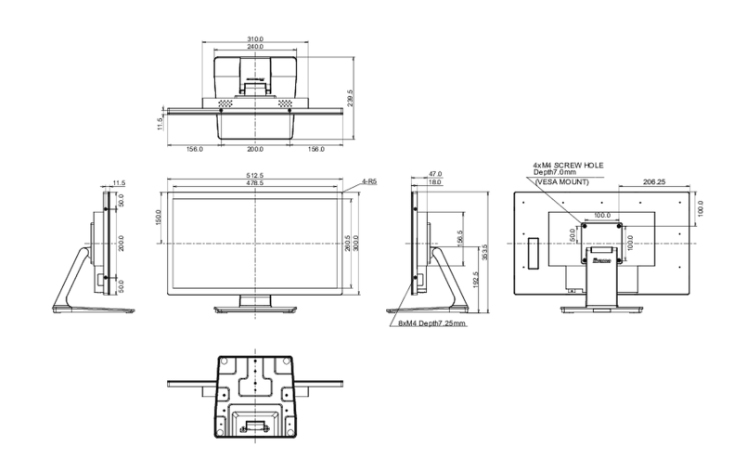

| Dimensions wxhxd | 512.5 x 353.5 x 239.5mm |
| Box dimensions W x H x D | 625 x 430 x 150mm |
| Weight (without box) | 6.8kg |
| Weight (with box) | 8.1kg |
 | LED backlit LCD monitor 21.5" backlit LED display. Common CCFL LCD monitors use 4 backlit bulbs.
|
 | TOUCH TECHNOLOGY - OPTICAL BONDED PCAP Optical Bonded PCAP (projective capacitive) touch technology reduces the air gap between the touch layer and the display, making the tactile response more precise. It also improves visual quality by reducing reflections and glare. Furthermore, the display is protected from dust and potential condensation.
|
 | IPS TECHNOLOGY IPS displays are best known for wide viewing angles and natural, accurate colors. They are particularly suitable for color-critical applications.
|
 | SCRATCH RESISTANCE Scratch resistance is essential for tactile solutions used in public places and schools. It is achieved thanks to a glass coating that covers the screen. It guarantees high durability of the touch function and, more importantly, the touch function remains unchanged even in the event of scratched glass.
|
 | FULL HD resolution (1920 x 1080) FULL HD With a 1920 x 1080p resolution the monitor displays high definition images. This means you can have more information on the screen; for example it captures 60% more information than a 1280 x 1024 monitor.
|
 | x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| Stereo Speakers The monitor is equipped with 2 2W (Stereo) speakers for clear, high-quality sound.
|
 | VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount. The VESA dimensions of this product are 100x100mm.
|
| This product features 1x HDMI port. and 1x Display Port |
 | This product features a response time of 5ms |
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
