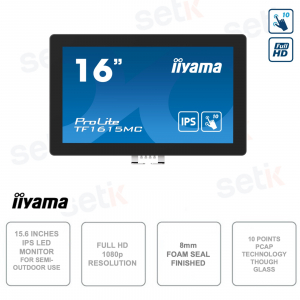

15.6 inch built-in monitor - Full HD - 10 point PCAP Through Glass technology

15.6 inch built-in monitor - Full HD - 10 point PCAP Through Glass technology

The ProLite TF1615MC-B1 is a 15.6" Touch built-in monitor with Full HD 1080p resolution with Though Glass 10-point PCAP touchscreen technology - and foam sealing . Screen with IPS panel technology . 1000:1 static contrast with touch, response times fast 25ms , HDCP compliant, VGA, HDMI, Display Port, Audio (Mini Jack) - IP65 protection for semi-outdoor use - VESA 100x100mm.



Reference: TF1615MC-B1

Brand: IIYAMA

EAN: 4948570121793

FIND INSTALLER

€442.86

taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%



15.6" MONITOR MONITOR IIYAMA PROLITE WITH TOUCHSCREEN THROUGH GLASS DISPLAY - IP65 PROTECTION - TF1615MC-B1

Made by IIYAMA
IIYAMA 15.6" IPS built-in monitor - TF1615MC-B1
Dimension: 15.6" - Open Frame Design - Display with IPS Panel, Touchscreen with Through Glass PCAP technology with 10 points of contact , scratch resistant - 1xVGA - 1xDisplayPort - 1xHDMI - Response time 25ms - Typical contrast 1,000:1 - MiniJack output for headphones - IP65 protection for semi-outdoor use - DC12V power supply - External power supply -
3 Years Direct Manufacturer's Warranty

Product details

Monitor 12
  • 15.6" Monitor IPS Technology - IIYAMA - TF1615MC-B1
  • Type: IPS LED panel
  • Nesting monitor
  • Open Frame Design
  • Sealed with 8mm foam
  • Touchscreen display with Through Glass technology
  • 10-point PCAP contact for precise touch.
  • Full HD 1080p resolution (1920x1080p)
  • Aspect: 16:9
  • Brightness: 450cd/m2
  • Ideal for semi-outdoor uses
  • Can be used in portrait, landscape or lying orientation
  • Input video interface: VGA - DISPLAY PORT - HDMI
  • Headphone output via MiniJack Interface
  • Response time 25 ms
  • Static contrast ratio: 1000:1 typical
  • VESA mount support 100 x 100mm
  • Dimensions: 398.5 x 246 x 42mm
  • External power supply unit
  • Power supply: DC 12V
  • Net weight: 2.5Kg
  • Frame color and finish: Black

Data sheet

CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA

TF1615MC-B1

DISPLAY CHARACTERISTICS

Design

Open Frame

Diagonal

15.6", 39.5cm

Panel

IPS

Native resolution

1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio

16:9

Panel brightness

450 cd/m²

Brightness

405 cd/m² with touch

Light transmittance

90%

Static contrast

1000:1

Response time (BTB)

25ms

Viewing zones

horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Energy efficiency class (Regulation (EU) 2017/1369)

AND

REACH SVHC

above 0.1%: Leads

DIMENSIONS / WEIGHT

Product dimensions W x H x D

398.5 x 246 x 42mm

Box dimensions W x H x D

470 x 145 x 343mm

Weight (without box)

2.5kg

Weight (with box)

4.3kg

Further details


SEMI OUTDOOR SOLUTION

The screen can operate at low and high temperatures and is IP65 rated resulting in dust and water resistance from the front, making it a reliable solution for cash points and kiosks in environments such as petrol or train stations. The high brightness ensures readability in any lighting condition.


Backlit LED display

IPS LED monitor.

15.6 " display
High quality images

2.0 Megapixel Full-HD 1920x1080 resolution

FULL HD resolution (1920 x 1080)

FULL HD

With a 1920 x 1080p resolution the monitor displays high definition images. This means you can have more information on the screen; for example it captures 60% more information than a 1280 x 1024 monitor.

Risoluzione FULL HD 1920x1080 Monitor E2280HS-B1

touchscreen capacitivo

Touch Technology - Capacitive - Through Glass Panel

This technology uses a grid of micro-wire sensors integrated into the glass covering the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unchanged even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.

Touchscreen capacitivo proiettivo

tocco attraverso vetro

Touch through glass

The back window or through glass function makes glass surfaces an interactive display. For rear window use, real estate agencies, POS, and restaurants.

tocco attraverso vetro

guarnizione in materiale espanso

Expanded material gasket

The foam finish (8 mm) around the monitor ensures perfect integration and excellent protection from dust.

guarnizione in materiale espanso

rivestimento anti impronta diagonale

Diagonal anti-fingerprint coating

This technology uses a sensor grid made up of micro-thin wires, integrated into the glass that covers the screen. By placing your finger on the glass, the electrical characteristics of the sensor grid vary and thus the touch is detected. Thanks to the glass coating, this technology is not damaged over time and the touch function remains unchanged even in the event of scratched glass. It offers perfect image quality and works with the human finger (even if the hand is wearing latex gloves) and with the magnetic stylus.

rivestimento anti impronta diagonale

Open frame brackets.jpg

Open frame brackets

This Open Frame monitor can be equipped with side fixing brackets which can be ordered as an option. They guarantee easy integration for installation in kiosks, totems and built-in solutions.

open frame brackets

Questo DVR presenta 1 porta HDMIUscita VGA

Porta Display port

This product features 1x HDMI port, 1x VGA port and 1x DISPLAY PORT

Attacco vesa

VESA attachment

VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.

Specific VESA attachment: 100x100mm

Attacco VESA

Garanzia diretta fornitore 3 anni

This product is covered by a 3 YEAR DIRECT manufacturer's warranty .
