The ProLite TF1633MSC-B1 is a 15.6" display with 1920x1080 Full HD 2 MP resolution and 10-point projective capacitive touchscreen for precise touch. Screen with IPS PANEL technology - 1000:1 static contrast ratio, 5ms response time - Shockproof scratches - Blue Light Reducer Technology - HDMI, Display Port Video Inerface - 2x2W Stereo Speakers - USB HUB (2 x 2.0) - USB Touch Interface - Fanless Design - 100x100mm Vesa connection, energy class C.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

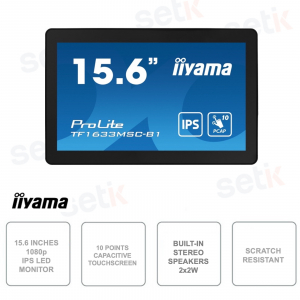

15.6" IIYAMA PROLITE MONITOR WITH 10 POINT TOUCHSCREEN DISPLAY - FULL HD 1080p - IPS LED - TF1633MSC-B1
Size: 15.6" - IPS Panel Technology LED display - 10-point Projective Capacitive touchscreen , scratch resistant
HDMI - Display Port - 2x USB 2.0 - 2x2W stereo speakers - USB 2x2.0 - USB Touch Interface - IP54 protection - 5ms response time - 3 Years Direct Manufacturer's Warranty - Ideal for use in the retail sector - Color black, matte.
Product details
- 15.6" LCD monitor - IIYAMA - TF1633MSC-B1
- Type: IPS Panel LED monitor, with edge-to-edge glass design
- 15.6 inch IPS LED backlit display
- 10-point capacitive projective touchscreen for better touch, scratch resistant
- 1920x1080P FULL HD resolution
- Blue Light Reducer technology against eye strain
- HDMI Video Interface
- Display Port Video Interface
- 2x2W Stereo Speakers
- Response time in 5 ms
- HUB x2 (v.2.0)
- HDCP Protocol
- USB Touch Interface
- Static contrast: 1,000:1
- Panel brightness 450 cd/m²
- Fanless Desiign (design without cooling fan)
- VESA 100x100mm mount support
- Dimensions: 389 x 246.5 x 45.5mm
- Product net weight: 2kg
- External power supply unit
- Power supply: DC 12V
- Intelligent cable management system
- Energy class: C
- Color: Black, Matte
Data sheet
|
TF1633MSC-B1 |
|
|
DISPLAY CHARACTERISTICS |
|
|
Design |
Edge to edge glass |
|
Diagonal |
15.6", 39.5cm |
|
Panel |
IPS |
|
Native resolution |
1920 x 1080 @60Hz (2.0 megapixels) |
|
Aspect ratio |
16:9 |
|
Panel brightness |
450 cd/m² |
|
Brightness |
385 cd/m² with touch |
|
Light transmittance |
85% |
|
Static contrast |
1000:1 |
|
Response time (GTG) |
5ms |
|
Viewing zones |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
|
Color support |
16.7 million |
|
Horizontal Sync |
30 - 68kHz |
|
Product dimensions W x H x D |
389 x 246.5 x 45.5mm |
|
Box dimensions W x H x D |
475 x 343 x 169mm |
|
Weight (without box) |
2kg |
|
Weight (with box) |
3.9kg |
Further details
 |
FULL HD resolution (1920 x 1080) FULL HD With a 1920 x 1080p resolution the monitor displays high definition images. This means you can have more information on the screen; for example it captures 60% more information than a 1280 x 1024 monitor.
|
 |
Touch Technology - Capacitive This technology uses a grid of micro-wire sensors integrated into the glass covering the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unchanged even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
|
 |
LED backlit A typical CCFL LCD uses four backlight lamps. The use of LED diodes significantly reduces energy consumption and reduces CO 2 emissions into the environment, making this LCD a truly ECO-Friendly product.
|
 |
Scratch resistant Scratch resistance is essential for tactile solutions used in public places and schools. This result is achieved thanks to a glass plate that covers the screen. It ensures a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched. |
 |
This product offers an IP54 level of protection. This results in greater resistance to foreign objects, humidity, dust and splashes of water. |
 |
USB x2 (2.0) |
 |
Stereo Speakers The monitor is equipped with 2 2W speakers. High quality sound
|
|
|
This product features 1x HDMI port and 1x DisplayPort |
 |
VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount. VESA mount for this model: 100x100mm.
|
 |
This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
