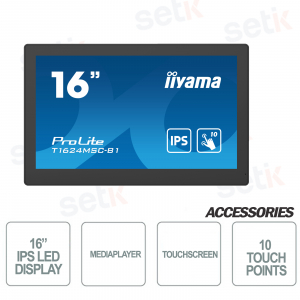

The ProLite T1624MSC-B1 is a 16 "monitor with 1920x1080 Full HD 2.1 MP resolution and 10-point capacitive projective touchscreen for precise touch. LED backlit LCD screen with IPS PANEL technology . Can be used lying down like a tablet . Static contrast ratio 800: 1, 25ms response time, HDMI, Mini Jack Audio Input, 2 Speakers (2W), USB HUB (2 x 2.0) . MediaPlayer - Vesa connection, energy class E
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
16 "IIYAMA PROLITE MONITOR WITH 10-POINT TOUCHSCREEN DISPLAY - MEDIAPLAYER
Size: 16 " - IPS Panel Technology LED display - Media player - Projective Capacitive 10-point scratch-resistant touchscreen
HDMI - 2x USB 2.0 - Mini Jack Audio Input x1
25ms Response Time - Speakers and Headphones - 3 Year Direct Manufacturer Warranty
Product details
- 16 "LCD Monitor - IIYAMA T1624MSC-B1
- Type: IPS Panel LED Monitor
- 16 Inch VA MATRIX LCD LED backlit display, 10-point capacitive projective touchscreen for better touch, scratch resistant (Edge to Edge design)
- Resolution 1920x1080P FULL HD 2.1 MP
- Media Player!
- Headphone output
- HDMI
- Audio output: Mini Jack + Integrated Speakers (2 x 2W)
- Response time 25 ms
- HUB x2 (v.2.0)
- Static contrast: 800: 1
- Energy efficiency class: E
- VESA mount support
- Dimensions: 388 x 245 x 159.5mm
- Color: Black, Matte
Data sheet
| Model | T1624MSC-B1 |
| DISPLAY CHARACTERISTICS | |
| design | Edge to edge glass |
| Diagonal | 15.6 ", 39.5cm |
| Panel | IPS Panel Technology, LED |
| Native resolution | 1920 x 1080 (2.1 megapixel HD) |
| Aspect ratio | 16: 9 |
| Panel Brightness | 450 cd / m² |
| Brightness | 385 cd / m² with touch |
| Light transmittance | 85% |
| Static contrast | 800: 1 with Touch |
| Response time | 25ms |
| Viewing zone | horizontal / vertical: 170 ° / 170 °, right / left: 85 ° / 85 °, up / down: 85 ° / 85 ° |
| Color support | 16.7mln 8bit |
| Horizontal Sync | 30. - 84.kHz |
| Viewable area W x H | 344.16 x 193.59mm, 13.5 x 7.6 " |
| Pixel pitch | 0.17925mm |
| Color | black, matte |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input | HDMI x1 |
| Audio output | Mini jack x1 |
| Audio outpu | Speakers 2 x 2W |
| USB ports | x2 (v.2.0) |
| FEATURES | |
| Extra | media player, SD card slot |
| Max. Non-stop operating time | 24/7 |
| Glass thickness | 1.8mm |
| Glass hardness | 6H |
| OSD key lock | yes |
| GENERAL | |
| Control buttons | Power / Input select, navigation button (up, down, left, right, play / enter, pause), menu / exit |
| User controls | Photo, music, video, calendar, settings (OSD language, auto play, repeat mode, slideshow time, time, display mode, brightness, contrast, saturation, auto power, restore factory mode) |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| ACCESSORIES INCLUDED | |
| Cables | USB, HDMI |
| Other | quick start guide, safety guide, AC adapter |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 7W typical, 0.5W stand by, 0.1W off mode |
| SUSTAINABILITY | |
| Regulations | CE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class | And |
| Other | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 388 x 245 x 159.5mm |
| Weight (without box) | 2.6kg |
Further details
 | FULL HD resolution (1920 x 1080) FULL HD With a resolution of 1920 x 1080p the monitor displays high definition images. This means that it is possible to have more information on the screen; for example it captures 60% more info than a 1280 x 1024 monitor.
|
 | Touch technology - Capacitive This technology uses a grid of micro-wire sensors built into the glass that covers the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
|
 | IPS LED monitor 16 "display. |
 | Scratch resistant Scratch resistance is essential for tactile solutions used in public places and schools. This result is achieved thanks to a glass plate that covers the screen. It guarantees a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched. |
 | USB x2 (2.0) |
 | Stereo Speakers The monitor is equipped with 2 x 2 W speakers. High quality sound
|
 | Don't you want to disturb those around you? Use the headphone output to connect your headphones |
| This product features 1x HDMI port |
 | VESA connection VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
|
 | This product is covered by the manufacturer's 3 YEAR DIRECT Warranty . |
