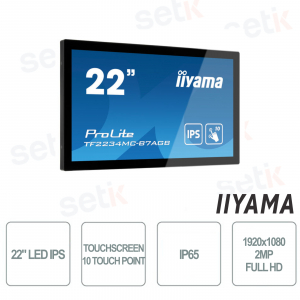

The ProLite TF2234MC-B7AGB is a 21.5 "Touch monitor with 1920x1080 FULL HD resolution and touch technology, anti-reflective coating . LED backlit screen with IPS Panel technology . Static contrast 1000: 1 with touch, fast response times 8 ms, VGA, Display Port, HDMI, USB, IP65 ports, 100x100mm Vesa connection, energy class F - Matt black color.
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
22 "IIYAMA PROLITE MONITOR WITH TOUCHSCREEN DISPLAY - IP65
22 "IPS IIYAMA monitor
Size: 21.5 " - IPS Display Panel LED technology - 1920x1080 resolution - Anti- glare panel - Touchscreen
VGA - DISPLAY PORT - HDMI - USB
Response time 8ms - IP65 - 3 Year Direct Manufacturer Warranty
Size: 21.5 " - IPS Display Panel LED technology - 1920x1080 resolution - Anti- glare panel - Touchscreen
VGA - DISPLAY PORT - HDMI - USB
Response time 8ms - IP65 - 3 Year Direct Manufacturer Warranty
Product details
- 22 " IPS Monitor - IIYAMA TF2234MC-B7AGB
- Type: IPS LED Technological Panel
- 21.5 Inch Touchscreen Display - PCAP
- 1920x1080 resolution
- VGA - DISPLAY PORT - HDMI
- Anti-reflective coating
- IP65
- Response time 8 ms
- USB
- Static contrast ratio: 1000: 1 with touch
- VESA mount support
- Dimensions: 517.5 x 313.5 x 46mm
- Color: black, matte
Data sheet
| Model | TF2234MC-B7AGB |
| DISPLAY CHARACTERISTICS | |
| design | Open Frame |
| Diagonal | 21.5 ", 54.6cm |
| Panel | IPS LED, Anti Glare Glass |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16: 9 |
| Brightness | 350 cd / m² typical |
| Brightness | 300 cd / m² with touch |
| Static contrast | 1000: 1 with touch |
| Light transmittance | 85% |
| Response time | 8ms |
| Viewing zone | horizontal / vertical: 178 ° / 178 °, right / left: 89 ° / 89 °, up / down: 89 ° / 89 ° |
| Color support | 16.7mln (8bit) |
| Horizontal Sync | 30 - 84kHz |
| Viewable area W x H | 476.0 x 267.7mm, 18.7 x 10.5 " |
| Pixel pitch | 0.247mm |
| Color | black, matte |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| Palm rejection | yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| HDCP | Yes |
| FEATURES | |
| Water and dust protection | IP65 (front) |
| Glass thickness | 1.5mm |
| Glass hardness | 6H |
| Extra | anti-glare coating, touch through-glass |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, factory) |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI |
| Guides | quick start guide, safety guide |
| Othe | AC adapter |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 18W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F. |
| Other | RREACH SVHC above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 517.5 x 313.5 x 46mm |
| Box dimensions W x H x D | 610 x 405 x 160mm |
| Weight (without box) | 4.4kg |
| Weight (with box) | 6.8KG |
| EAN code | 4948570118373 |
Further details
 |
FULL HD resolution (1920 x 1080) FULL HD With a resolution of 1920 x 1080p the monitor displays high definition images. This means that it is possible to have more information on the screen; for example it captures 60% more info than a 1280 x 1024 monitor.
|
 |
Touch technology - Capacitive This technology uses a grid of micro-wire sensors built into the glass that covers the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
|
 |
LED backlit LED monitor 21.5 " backlit LED display. Common LCD CCFL monitors use 4 backlit bulbs. |
  |
USB |
|
|
This product features 1x HDMI port , 1x VGA port and 1x DVI |
 |
VESA connection VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount. This model has VESA dimensions for mounting equal to 100x100mm.
|
 |
This product is covered by the manufacturer's 3 YEAR DIRECT Warranty . |
