The ProLite TF1634MC-B8X is a 15.6 "Touch monitor with 1920x1080 Full HD resolution and touch technology . LED backlit LCD screen with IPS Panel technology . 700: 1 static contrast with touch, fast response times 25ms, VGA, Display Port, HDMI , USB. Vesa connection 100x100mm, energy class F - Matt black color.
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

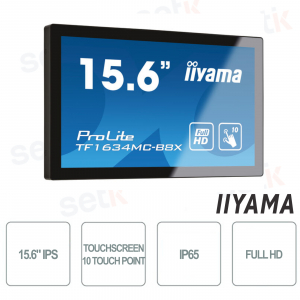

15.6 "IIYAMA PROLITE MONITOR WITH TOUCHSCREEN DISPLAY - IP65
15.6 "IPS IIYAMA monitor
Size: 15.6 " - IPS Display Panel LED technology, Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - USB
25ms Response Time - 3 Year Direct Manufacturer Warranty
Size: 15.6 " - IPS Display Panel LED technology, Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - USB
25ms Response Time - 3 Year Direct Manufacturer Warranty
Product details
- 15.6 " IPS Monitor - IIYAMA TF1634MC-B8X
- Type: IPS LED Technological Panel
- 15.6 Inch Touch Touchscreen Display - PCAP
- 1920x1080P FULL HD resolution
- VGA - DISPLAY PORT - HDMI
- Response time 25 ms
- USB
- Static contrast ratio: 700: 1 with touch
- VESA mount support
- Dimensions: 381 x 230.5 x 46mm
- Color: black, matte
Data sheet
| Model | TF1634MC-B8X |
| DISPLAY CHARACTERISTICS | |
| design | Edge to edge glass, Open Frame |
| Diagonal | 15.6 ", 39.5cm |
| Panel | IPS Panel Technology LED |
| Native resolution | 1920 x 1080 @ 60Hz (2.1 megapixel) |
| Aspect ratio | 16: 9 |
| Brightness | 450 cd / m² typical |
| Brightness | 405 cd / m² with touch |
| Static contrast | 700: 1 with touch |
| Light transmittance | 90% |
| Response time | 25ms |
| Viewing zone | horizontal / vertical: 178 ° / 178 °, right / left: 89 ° / 89 °, up / down: 89 ° / 89 ° |
| Color support | 16.2mln (6bit + Hi-FRC) |
| Horizontal Sync | 30 - 84kHz |
| Viewable area W x H | 344.2 x 193.5mm, 13.6 x 7.6 " |
| Pixel pitch | 0.179mm |
| Color | black, matte |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| HDCP | Yes |
| FEATURES | |
| Extra | anti-fingerprint coating, touch through-glass |
| Glass thickness | 2.4mm |
| Glass hardness | 7H |
| Water and dust protection | IP65 (front) |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, factory) |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Othe | AC adapter |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 18W typical, 0.5W stand by, 0.5W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F. |
| Other | RREACH SVHC above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 381 x 230.5 x 46mm |
| Box dimensions W x H x D | 455 X 365 X 290MM |
| Weight (without box) | 2.0kg |
| Weight (with box) | 4KG |
Further details
 |
FULL HD resolution (1920 x 1080) FULL HD With a resolution of 1920 x 1080p the monitor displays high definition images. This means that it is possible to have more information on the screen; for example it captures 60% more info than a 1280 x 1024 monitor. |
 |
Touch technology - Capacitive This technology uses a grid of micro-wire sensors built into the glass that covers the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
|
 |
IPS monitor LED TECHNOLOGY PANEL 15.6 " display. |
 |
Scratch resistant Scratch resistance is essential for tactile solutions used in public places and schools. This result is achieved thanks to a glass plate that covers the screen. It guarantees a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched.
|
  |
USB |
|
|
This product features 1x HDMI port , 1x VGA port and 1x DVI |
 |
VESA connection VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount. This model has VESA dimensions for mounting equal to 100x100mm.
|
 |
This product is covered by the manufacturer's 3 YEAR DIRECT Warranty . |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
