The ProLite TF2215MC-B2 is a 22 "Touch monitor with 1920x1080 Full HD resolution and touch technology . LED backlit LCD screen with IPS Panel technology . Thanks to the design , static 1000: 1 with touch, fast response times 14ms, VGA, Display Port, HDMI, Output, USB. Scratch resistant display, Foam packings, Anti-fingerprint coating. Possibility to be equipped with external mounting brackets. IP65 (Screen)
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

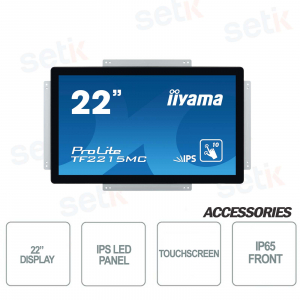

22 "IIYAMA PROLITE MONITOR WITH IPS LED TOUCHSCREEN DISPLAY - IP65
22 "IPS LED IIYAMA monitorSize: 22 " - IPS Display Panel LED technology, Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - USB - Technology
Response Time 14ms - 3 Year Direct Manufacturer Warranty
Product details
- 22 " IPS Monitor - IIYAMA TF2215MC-B2
- Type: IPS LED Technological Panel
- 22 inch touch screen display
- 1920x1080P FULL HD resolution
- VGA - DISPLAY PORT - HDMI
- Response time 14 ms
- USB
- Static contrast ratio: 1000: 1 typical
- VESA mount support
- Dimensions: 520 x 315 x 42.5mm
- Color: black
Data sheet
| Model | TF2215MC-B2 |
| DISPLAY CHARACTERISTICS | |
| design | Open Frame |
| Diagonal | 21.5 ", 54.6cm |
| Panel | IPS LED |
| Native resolution | 1920 x 1080 (2.1 megapixel FULL HD) |
| Aspect ratio | 16: 9 |
| Brightness | 350 cd / m² typical |
| Brightness | 315 cd / m² with touch |
| Static contrast | 1000: 1 typical |
| Light transmittance | 90% |
| Response time | 14ms |
| Viewing zone | horizontal / vertical: 178 ° / 178 °, right / left: 89 ° / 89 °, up / down: 89 ° / 89 ° |
| Color support | 16.2mln (6bit + Hi-FRC) |
| Horizontal Sync | 31.4 - 82kHz |
| Viewable area W x H | 476.064 x 267.786mm, 18.7 x 10.5 " |
| Pixel pitch | 0.24795mm |
| Color | black |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input |
HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 |
| HDCP | Yes |
| FEATURES | |
| Extra | anti-fingerprint coating, touch through-glass |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Water tight seal | yes |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option ( reset, language, source select, display mode, factory) |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 0 ° C - 40 ° C |
| Storage temperature range | - 20 ° C - 60 ° C |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 20.8W typical, 1.05W stand by, 0.32W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F. |
| Other | REACH SVHC above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 520 x 315 x 42.5mm |
| Weight (without box) | 4.4kg |
Further details
 |
FULL HD resolution (1920 x 1080) FULL HD With a resolution of 1920 x 1080p the monitor displays high definition images. This means that it is possible to have more information on the screen; for example it captures 60% more info than a 1280 x 1024 monitor.
|
 |
Touch technology - Capacitive This technology uses a grid of micro-wire sensors built into the glass that covers the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
|
 |
IPS monitor LED TECHNOLOGY PANEL 22 " display. |
 |
Scratch resistant Scratch resistance is essential for tactile solutions used in public places and schools. This result is achieved thanks to a glass plate that covers the screen. It guarantees a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched. |
|
|
This product features 1x HDMI port , 1x VGA port and 1x DISPLAY PORT |
 |
VESA connection VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
|
 |
This product is covered by the manufacturer's 3 YEAR DIRECT Warranty . |
