The ProLite TF1515MC-B2 is a 15 "Touchscreen monitor with resolution 1024 x 768 (0.8 megapixel) and PCAP technology . TN LED screen. Thanks to the design , static 800: 1 with touch, fast response times 8ms, VGA, DVI, HDMI , Output, USB. Foam gasket, Touch - capacitive technology, Anti-fingerprint coating, can be mounted on external mounting brackets. IP65 (Screen)
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

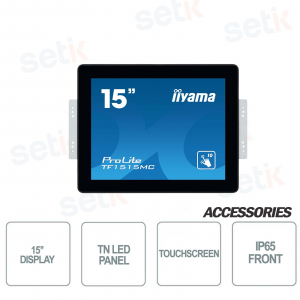

15 "IIYAMA PROLITE MONITOR WITH TOUCHSCREEN DISPLAY - IP65
15 "PCAP IIYAMA Touchscreen MonitorSize: 15 " - TN LED display, Touchscreen
VGA - DISPLAY PORT - HDMI - USB - Touch technology - capacitive
Response Time 8ms - 3 Year Direct Manufacturer Warranty
Product details
- 15 " PCAP Monitor - IIYAMA TF1515MC-B2
- Type: TN LED panel
- 15 Inch Touch Touchscreen Display - PCAP
- Resolution 1024 x 768 (0.8 megapixel)
- VGA - DISPLAY PORT - HDMI
- Response time 8 ms
- USB
- Static contrast ratio: 800: 1 with touch
- VESA mount support
- Dimensions: 364 x 291 x 41.5mm
- Color: black
Data sheet
| Model | TF1515MC-B2 |
| DISPLAY CHARACTERISTICS | |
| design | Open Frame |
| Diagonal | 15 ", 38cm |
| Panel | TN LED |
| Native resolution | 1024 x 768 (0.8 megapixel) |
| Aspect ratio | 4: 3 |
| Brightness | 350 cd / m² typical |
| Brightness | 315 cd / m² with touch |
| Static contrast | 800: 1 with touch |
| Light transmittance | 90% |
| Response time | 8ms |
| Viewing zone | horizontal / vertical: 160 ° / 150 °, right / left: 80 ° / 80 °, up / down: 75 ° / 75 ° |
| Color support | 16.2mln (6bit + Hi-FRC) |
| Horizontal Sync | 31.4 - 60kHz |
| Viewable area W x H | 304.1 x 228.1mm, 12 x 9 " |
| Pixel pitch | 0.297mm |
| Color | black |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input |
HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 |
| HDCP | Yes |
| FEATURES | |
| Extra | anti-fingerprint coating, touch through-glass, foam seal |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | menu, scroll up / brightness, scroll down / contrast, select, power |
| User controls | picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (color temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 0 ° C - 40 ° C |
| Storage temperature range | - 20 ° C - 60 ° C |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Remote control | external control pad |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 16W typical, 1.2W stand by |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | IS |
| Other | REACH SVHC above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 364 x 291 x 41.5mm |
| Box dimensions W x H x D | 460 x 470 x 175mm |
| Weight (without box) | 2.9kg |
| Weight (with box) | 4.6kg |
| EAN code | 4948570116751 |
Further details
 |
Touch technology - Capacitive This technology uses a grid of micro-wire sensors built into the glass that covers the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
|
 |
TN LED monitor 15 " display. |
 |
Scratch resistant Scratch resistance is essential for tactile solutions used in public places and schools. This result is achieved thanks to a glass plate that covers the screen. It guarantees a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched. |
|
|
This product features 1x HDMI port , 1x VGA port and 1x DISPLAY PORT |
 |
VESA connection VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
|
 |
This product is covered by the manufacturer's 3 YEAR DIRECT Warranty . |
Download
