The ProLite TF1215MC-B1 is a built-in 12" Touch monitor with 1024 x 768 resolution with touch technology . Screen with IPS Panel technology . Static contrast 1000:1 with touch, fast response time 25ms, VGA,HDMI, Display Port, Audio (Mini Jack) IP65 protection
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

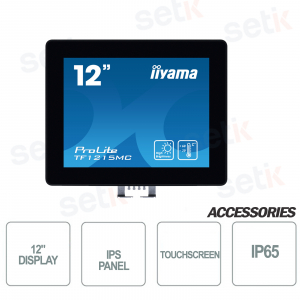

12" IIYAMA PROLITE MONITOR WITH TOUCHSCREEN DISPLAY - IP65
12" IPS IIYAMA built-in monitorSize: 12" - Display with IPS Panel, Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - IP65 - DC12V power supply
Response time 25ms - 3 Years Direct Manufacturer Warranty
Product details
- 12" monitor IPS technology - IIYAMA TF1215MC-B1
- Typology: IPS panel
- 12 inch touch screen display - PCAP
- Resolution 1024x768
- VGA - DISPLAY PORT - HDMI
- Response time 25ms
- Contrast Ratio Static: 1000:1 typical
- VESA mount support
- Dimensions: 308.5 x 248 x 41.5mm
- Frame color and finish: Black
Data sheet
| model | TF1215MC-B1 |
| DISPLAY CHARACTERISTICS | |
| design | OpenFrame |
| diagonal | 12.1", 31cm |
| panel | IPS Technology |
| Native resolution | 1024 x 768 (0.8 megapixels) |
| aspect ratio | 4:3 |
| Brightness | 540 cd/m² typical |
| Brightness | 450 cd/m² with touch |
| Static contrast | 1000:1 typical |
| Light transmittance | 85% |
| Response time | 25ms |
| Viewing zones | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.2m (6bit + Hi-FRC) |
| Horizontal Sync | 31.4 - 60kHz |
| Vertical Sync | 56 - 75Hz |
| Viewable area W x H | 245.8 x 184.3mm, 9.7 x 7.2" |
| Pixel pitches | 0.24mm |
| Colour | black |
| TOUCH | |
| Touch technology | capacitive projects |
| Touchpoints | 10 (HID, only with supported OS) |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section |
| Through glass | 6mm |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1DisplayPort x1 |
| Audio Outputs | Mini Jack x1 |
| HDCP extension | Yes |
| FEATURES | |
| Extra | anti-fingerprint coating, touch through glass |
| Glass thickness | 3.15mm |
| Glass hardness | 7H |
| Water and dust protection | IP65 (front) |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch ), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range (-°/+°) | -20°C - 60°C |
| Storage temperature range | - 20°C - 60°C |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Othe | AC adapter, external control pads |
| remote control | external control pad |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12V |
| Power Usage | 10W typical, 0.55W standby, 0.5W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Other | b |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 308.5 x 248 x 41.5mm |
| Weight (without box) | 2.1kg |
Further details
 |
SEMI OUTDOOR SOLUTIONThe screen can operate in both low and high temperatures and is IP65 rated resulting in dust and water resistance from the front, making it a reliable solution for pick-up points and kiosks in environments such as petrol or train stations. The high luminosity ensures readability in any lighting condition.
|
 |
Touch Technology - Capacitive This technology uses a sensor grid of micro-wires embedded in the glass that covers the screen. Touch is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with human finger (even with latex gloves) and stylus pen.
|
|
|
This product features 1x HDMI port, 1x VGA port and 1x DISPLAY PORT |
 |
VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount.
|
 |
This product is covered by the manufacturer's 3 YEAR DIRECT Warranty . |
