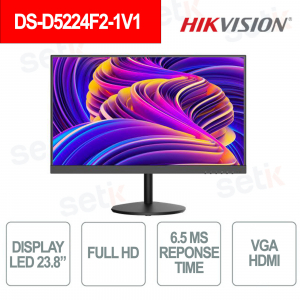

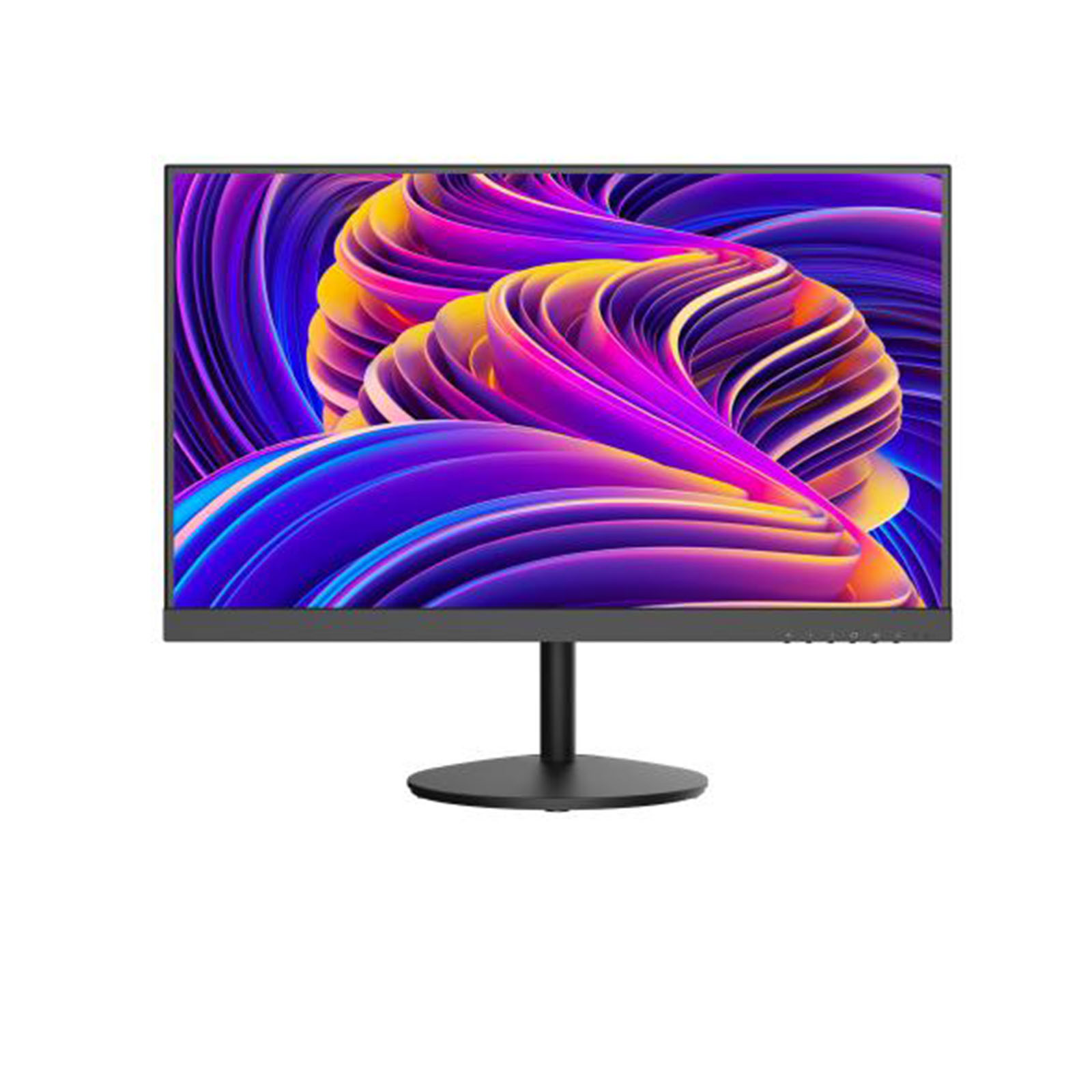

23.8 INCH LED MONITOR - FULL HD - 6.5MS - 75HZ - VGA - HDMI - SPEAKERS - HIKVISION - DS-D5224F2-1V1S
DESCRIPTION:
DS-D5224F2-1V1S is a 23.8 -inch Full HD (1920x1080) LED display monitor , ideal for professional video surveillance and monitoring systems . Thanks to anti-glare technology and a wide viewing angle , it ensures clear and detailed images in any lighting condition. Equipped with HDMI and VGA inputs and integrated speakers , it offers complete connectivity for DVR, NVR and other video sources. The elegant design , low power consumption and 24/7 reliability make it perfect for security environments and control stations.
Quality product.
Product Details:
|
Technical data sheet
| DS-D5224F2-1V1S | |
| Display | |
| Screen Size | 23.8 inches |
| Active Display Area | 527.04mm (H) × 296.46mm (V) |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| PixelPitch | 0.2745 (H) mm × 0.2745 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit |
| Contrast Ratio | 4000 : 1 |
| Response Time | 6.5 ms (typical) |
| Refresh Rate | Max. 75Hz , Typ. 60 Hz |
| Haze | Haze 25%, 3H |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1，BNC（CVBS） × 1，AUDIO IN × 1 |
| Video & Audio Output | Speaker(8Ω 2W) × 2 |
| Data Transmission Interface | USB2.0 (support program upgrade and USB online playback) × 1 |
| Power | |
| Power Supply | 100~240 VAC, 50/60 Hz, 0.5A Max |
| Power Consumption | ≤ 25W |
| Standby Consumption | ≤ 0.5W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 10% to 80% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 5% to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 75mm × 75mm (4 - M4 × 6mm) |
| Bezel Width | 1.75 mm (top/left/right), 23.55 mm (bottom) |

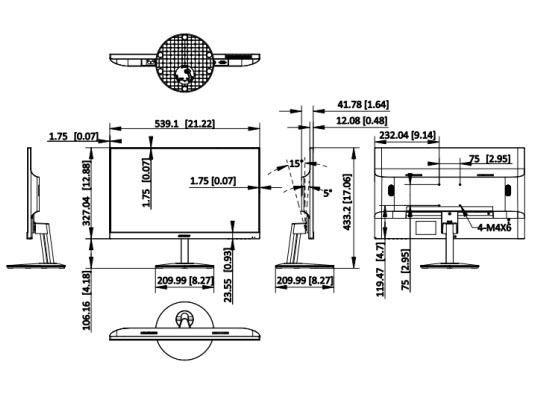

| Product Dimensions (W × H × D) | without stand：539.1 (W) mm × 327.04 (H) mm × 41.78 (D) mm（21.22″ × 12.88″ × 1.64″) with stand：539.1 (W) mm × 433.2 (H) mm × 209.99 (D) mm（21.22″ × 17.06″ × 8.27″） |
| Package Dimensions (W × H × D) | 652 (W) mm × 445 (H) mm × 116 (D) mm（25.67″ × 17.52″ × 4.57″） |
| Net Weight | 3.32 ± 0.5 kg |
| Gross Weight | 4.66 ± 0.5 kg |
| Packing List | Monitor × 1, Component base × 1, AC power cable (1.5 m) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
Further details
 | 23.8" 1920 × 1080 (FullHD) LED display |
 | VESA mount VESA mount compatibility means you can easily mount the LCD to any VESA compatible stand. This model has a VESA size of 75x75mm.
|
| This product features HDMI 1.4 × 1, VGA × 1，BNC（CVBS） × 1，AUDIO IN × 1 |
 | This product features a response time of 6.5 ms. |
 | This product is covered by a 24 month warranty. |
