The ProLite LH6541UHS-B1AG IIYAMA is a 65 'monitor with VA technology panel and 4K FULL HD resolution . Static contrast ratio 50 00:1 , 3x HDMI . Audio Input Mini Jack, RS-232c, RJ45, IR, RCA audio output, 2 Speakers, 1x USB, MicroSD Slot. Media Playback for playing media content from a USB stick or internal memory. VESA mount
FIND INSTALLER
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

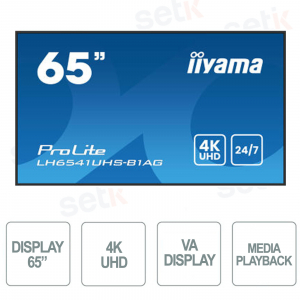

LH6541UHS-B1AG IIYAMA MONITOR PROLITE 65" VA TECHNOLOGY UHD 4K DISPLAY - IIYAMA
IIYAMA Professional VA Monitor
Size: 65" - 4K UHD 3840 x 2160 resolution - VA display orientable landscape
3x HDMI, 1x USB , Audio Input Jack - 2x Speakers - RS232c - RJ45 -1x IR
3 Years Direct Manufacturer Warranty
Product details
- IIYAMA Professional Monitor
- 65 Inch VA Landscape Rotatable Display
- 4K UHD 3840 x 2160 resolution
- Static Contrast Ratio: 5000:1
- Response time 6.5 ms
- Audio: Mini Jack input / 2x 10W speakers
- Control inputs: RS-232c, RJ45 LAN, IR
- Control Outputs: RS-232c, IR
- HDCP
- 1x USB with Media Playback function
- Multilingual OSD menu
- Control keys
- Thin bezel design
- Accessories included: Power cable, HDMI, RS-232c
- VESA mount support 500 x 500mm
- Efficiency class G
- Dimensions: 1456.5 x 831.5 x 69mm
Technical data sheet
| Model | LH6541UHS-B1AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 64.5", 164cm |
| Panel | VA, Anti-Glare coated glass, matt finish, haze 25% |
| Native Resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m² typical |
| Static Contrast | 5000:1 |
| Response Time | 6.5ms |
| Viewing Area | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync | 30 - 80kHz |
| Vertical Sync | 50 - 75Hz |
| Viewable area W x H | 1428.5 x 803.5mm, 56.2 x 31.6" |
| Bezel width (sides, top, bottom) | 12.8mm, 12.8mm, 12.8mm |
| Pixel pitch | 0.372mm |
| Bezel color and finish | black, glossy |
| INTERFACES & CONNECTORS | |
| Digital signal input | HDMI x3 (2.0, max. 3840x2160 @60Hz) |
| Monitor control input | RS-232c x1 RJ45 (LAN) x1 IR x1 |
| Digital signal output | HDMI x1 |
| Audio output | Speakers 2 x 10W |
| Monitor control output | RS-232c x1 IR loop through x1 |
| HDCP | 2.2 |
| USB ports | x1 (2.0, USB Media Player) |
| FEATURES | |
| Max. non-stop operating time | 24/7 |
| Media playback | Yes (in pivot not supported) |
| General | |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL |
| Control buttons | Power |
| User controls | picture (brightness, contrast, sharpness, black level, tint, color, noise reduction, gamma selection, color temperature, color control, smart power, overscan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, configuration 1 reset, factory reset), Configuration 2 (OSD turn off, OSD HPosition, OSD V-position, rotation, information OSD, logo, monitor ID, monitor information, HDMI version, configuration 2 reset), Advanced option (IR control, Power LED light, keyboard control, off timer, date and time, schedule, language, OSD transparency, power save, SDM settings, advanced option reset) |
| Mechanical | |
| Orientation | landscape, portrait |
| Fanless design | yes |
| VESA mounting | 500 x 500mm |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| Accessories Included | |
| Cables | power, HDMI, RS-232c |
| Guides | quick start guide, safety guide |
| Other | Included Wall Mount Bracket VESA 500x500 |
| Remote Control | yes (batteries included) |
| Power Management | |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 115W typical, 0.5W stand by, 0.3W off mode |
| Sustainability | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA (RoHS2.0, PFOS) |
| Energy efficiency class | G |
| REACH SVHC | above 0.1%: Lead |
| Dimensions / weight | |
| Product dimensions W x H x D | 1456.5 x 831.5 x 69mm |
| Box dimensions W x H x D | 1640 x 990 x 164mm |
| Weight (without box) | 17.7kg |
| Weight (with box) | 25.7kg |
Further details
 | New ULTRA HD 4K Technology ( 3840 x 2160) |
 | LAN Control LAN Control allows you to make adjustments to the display's OSD menu over the network (software not included).
|
 | GO VA panel technology offers high contrast and good color brilliance with a much wider viewing angle than standard TN panel technology.
|
 | Anti-glare coating Anti-glare coating is used in professional displays to prevent reflections and disturbances caused by external light sources, which worsen color reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt. |
 | Media player (not supported in pivot) Listen to your favorite music and display your best pictures, photos and videos directly on the screen, stored on a USB flash drive or internal memory, with the integrated media player.
|
  | Audio - inputs The monitor is equipped with 1x Mini Jack Audio Outputs and Stereo Speakers The monitor is equipped with RCA audio output (L/R) and 2 x 10W Speakers (Stereo). High quality sound
|
| This product features 3x HDMI port |
| Equipped with a RJ45 LAN PORT for OSD menu control |
 | VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount.
|
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
