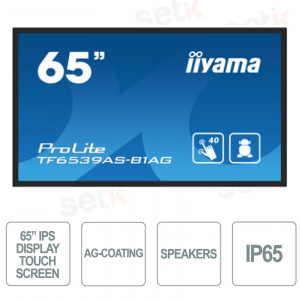

The ProLite TF6539AS-B1AG is a 65" Touch monitor with UltraHD 4K 3840x2160p resolution and 40-point capacitive touch technology . LED-backlit screen with IPS LED panel technology and AG Coated Glass to protect the glass from reflections. IP65 front panel protection level. Open Frame / Edge-to-edge Glass design. Typical contrast 1 200:1, response time 8ms, HDMI, DisplayPort, USB, 2x10W speakers, mini jack. Suitable for 24/7 continuous operation.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
65" IIYAMA PROLITE MONITOR WITH ANTI-GLARE TOUCHSCREEN DISPLAY - 4K UHD - IPS LED - IP65 Protection
65" IPS LED IIYAMA Monitor - AG Coated Glass to protect the device glass from reflections
Size: 65" - IPS LED display, 50-point capacitive touchscreen , 24/7 continuous operation
DISPLAY PORT - HDMI - DVI - USB Touch Interface - RS-232c - IR - RJ45 LAN - MiniJack - Stereo Speakers 2x10w - 8bit color technology, 16.7 million colors - Glass thickness 4mm - Weight 53.7Kg - Response time 8ms - 3 Years Direct Manufacturer Warranty
Product details
- 65" IPS LED Monitor - IIYAMA
- Type: IPS LED
- Display 65 Inch Touchscreen - Capacitive 50 points
- Edge to edge design, anti-glare
- Resolution 3840x2160p 4K UHD
- VGA - DISPLAY PORT - HDMI
- Response time 8ms
- USB Touch Interface
- Glass thickness 4mm
- Glass hardness 3H
- 2x 10W Stereo Speakers
- Mini Jack Input
- RS232c - RJ45 LAN
- IP65 protection
- Ability to operate continuously 24/7
- Static Contrast Ratio: 1200:1
- VESA Mount Support: 400x400mm
- Dimensions: 1495 x 870 x 66mm
- Weight: 53.7kg
- Color: Black
Technical data sheet
| Model | TF6539AS-B1AG |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass, Open Frame |
| Diagonal | 64.5", 163.9cm |
| Panel | IPS LED, AG coated glass, matte finish |
| Native resolution | 3840 x 2160 @60Hz (8.3 megapixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Brightness | 435 cd/m² with touch |
| Static contrast | 1 200:1 with touch |
| Light transmittance | 87% |
| Response time | 8ms |
| Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07G (8 Bits+FRC) (72% NTSC) |
| Horizontal Sync | 28 - 160kHz |
| Viewable area W x H | 1428.5 x 803.5mm, 56.2 x 31.6" |
| Bezel Width | 31.5mm, 31.5mm, 31.5mm |
| Pixel pitch | 0.372mm |
| Bezel color and finish | black, matte |
| TOUCH | |
| Touch technology | PCAP bonded |
| Touchpoints | 40 |
| Touch accuracy | +- 2.5mm |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through Glass | 6mm |
| Palm Rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input | HDMI x2 (2.0, max. 3840x2160 @60Hz) DisplayPort x1 (v.1.2 max. 3840x2160 @60Hz) |
| Monitor control input | RS-232c x1 RJ45 (LAN) x1 |
| Audio output | Mini jack x1 Speakers 2 x 10W |
| HDCP | 2.2 |
| USB ports | x2 (2.0 x2 (Type A)) |
| FEATURES | |
| Integrated software | Android 11 OS, iiSignage², EShare, FailOver |
| Hardware | CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB |
| Extra | handles, touch through glass |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 4mm |
| Glass hardness | 3H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| OSD key lock | yes |
| Remote control lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | power |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, color temp., color control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock , Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer , schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face up |
| VESA mounting | 400 x 400mm |
| Mini PC mount | VESA 100 x 100, INTEL NUC |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) |
| Guides | quick start guide, safety guide |
| Cable cover | yes |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 1383W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1495 x 870 x 66mm |
| Box dimensions W x H x D | 1650 x 1010 x 194mm |
| Weight (without box) | 53.7kg |
| Weight (with box) | 65kg |
Further details
 | IPS LED Monitor - ANTI-GLARE 65" display. |
 |
New ULTRA HD 4K Technology (3840 x 2160) |
Android OS Thanks to the Android operating system, you can easily customize the display to suit your needs by installing applications directly on it.
| |
iiSignage² iiSignage² is our content management platform for digital signage, which can be used to easily view and control content and securely manage iiyama displays. The content management system (CMS) gives you complete control of your messages and advertising, which you can manage remotely, easily and securely.
| |
Signal Failover FailOver is a feature that automatically detects input sources. If there is no signal at the default input, the device automatically switches to the closest available input. FailOver allows the customer to prioritize a number of inputs (including browser, media player and Custom) and ensures that their content is always actively displayed.
| |
Touch through glass The back-window or through-glass function makes glass surfaces an interactive display. For back-window use, real estate agencies, POS, and restaurants.
| |
Huddle Spaces Transform small meeting rooms into clean collaboration spaces using built-in applications such as Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive touchscreens. With the Android operating system, you can easily customize the display by installing applications directly on it. With the EShare app, you can share, broadcast and edit content from any device directly on the screen and transform your team meetings into an easy, fast and seamless interactive session.
| |
Commercial Installations Interactive 4K touchscreens are the key to immersive interactive experiences for retail design. Allow customers to explore your website right there and then or interact with a range of creative or experiential applications you wish to host. The flexibility to use in landscape or portrait modes with 24/7 operation. Android and MediaPlayer make the series displays one of the most adaptable touchscreen solutions available.
| |
 | Stereo Speakers The monitor is equipped with 2 x 10W Speakers (Stereo). High quality sound. It also features a mini jack input.
|
 | Scratch resistant Scratch resistance is essential for touch solutions used in public places and schools. This is achieved by a glass plate that covers the screen. It ensures a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched. |
| This product features 2x HDMI, 1x DisplayPort. |
| Equipped with a LAN PORT and a RS232C
|
 | VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount. For this model, the standard
|
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
