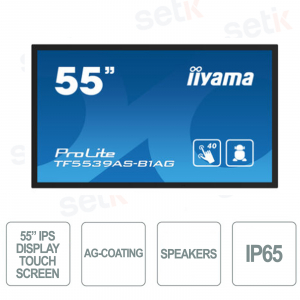

The ProLite TF5539AS-B1AG is a 55" Touchscreen monitor with 4K UHD resolution and 40-point capacitive touchscreen technology (PCAP) . Continuous 24/7 operation . IPS LED display, Anti-glare (AG Coating) and IP65 protection, Edge-to-edge glass design, Open Frame. Typical contrast 1200:1, 16.7 million 8-bit colors, 8ms response time. 1 Display Port, 2 HDMI. 2 10W stereo speakers, USB Touch Interface. VESA 400x400. Matte black color.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
Description Details Data sheet Information Download
55" IIYAMA PROLITE MONITOR WITH 40-POINT CAPACITIVE TOUCHSCREEN DISPLAY - IP65 PROTECTION - 4K UHD RESOLUTION - BLACK
55" IPS LED monitor - IIYAMA TOUCHSCREEN
Size: 55" - IPS LED display, AG Coated Glass - Capacitive touchscreen - Scratch resistant - Touch Trhrough glass technology - 1x DiplayPort - 2x HDMI - USB Touch Interface - HDCP - MiniJack (x1) - 2x10W stereo speakers - Compatible with 24/7 continuous operation - 8ms response time - 1x RS232c - 1x RJ45 LAN - 4mm glass thickness, 3H hardness - Multilingual OSD - Metal frame - Operation with display facing up - Matt white color - Weight: 39.6Kg - 3 Years Direct Manufacturer's Warranty
Product details
- 55" IPS LED Monitor - IIYAMA
- Type: IPS LED, AG Coated Glass
- Aspect ratio: 16:9
- Display 55 Inch Capacitive Touchscreen - 40 Point PCAP
- Scratch resistant
- Resolution 3840 x 2160 @60Hz (8.3 megapixel 4K UHD)
- 1x DISPLAY PORT - 2x HDMI
- Response time 8ms
- USB Touch Interface
- Static Contrast Ratio: 1200:1
- VESA 400x400 mount support
- 1x RS232c
- 1x RJ45 LAN
- 8-bit color, 16.7 million colors
- 1x Mini Jack
- 2x 10W Stereo Speakers
- HDCP
- Metal frame
- Designed for 24/7 continuous operation
- Dimensions: 1274 x 744.8 x 65.2mm
- Weight: 39.6kg
- Color: Black, Matte
Technical data sheet
| Model | TF5539AS-B1AG |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass, Open Frame |
| Diagonal | 54.6", 139cm |
| Panel | IPS LED, AG coated glass, matte finish |
| Native resolution | 3840 x 2160 @60Hz (8.3 megapixels 4K UHD) |
| Aspect ratio | 16:9 |
| Brightness Panel | 500 cd/m² |
| Brightness | 435 cd/m² with touch |
| Light transmittance | 87% |
| Static contrast | 1200:1 |
| Response time (GTG) | 8ms |
| Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07G (8 Bits+FRC) (72% NTSC) |
| Horizontal Sync | 28 - 160kHz |
| Viewable area W x H | 1209.6 x 680.4mm, 47.6 x 26.8" |
| Bezel width (sides, top, bottom) | 30mm, 30mm, 30mm |
| Pixel pitch | 0.315mm |
| Colour | black, matte |
| TOUCH | |
| Touch technology | bonded PCAP |
| Touchpoints | 40 |
| Touch Accuracy | +- 2.5mm |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through Glass | 6mm |
| Palm rejection | yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 (max. 1920x1080 @60Hz) |
| Digital signal input | HDMI x2 (2.0, max. 3840x2160 @60Hz) |
| Audio output | Mini-jack x1 Speakers 2 x 10W |
| HDCP | 2.2 |
| USB ports | x2 (2.0 x2 (Type A)) |
| FEATURES | |
| Integrated software | Android 11 OS, iiSignage², EShare, FailOver |
| Hardware | CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB |
| Extra | handles, Touch Through-Glass |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Anti-image retention | Yes |
| Glass thickness | 4mm |
| Glass Hardness | 3H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| OSD key lock | yes |
| Remote control lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | power |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, color temp., color control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, OSD info, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face up |
| VESA mounting | 400 x 400 mm |
| Mini PC Mount | VESA 100 x 100, INTEL NUC |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) |
| Guides | quick start guide, safety guide |
| Cable cover | yes |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 139W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Other | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1274 x 744.8 x 65.2mm |
| Box dimensions W x H x D | 1428 x 894 x 185mm |
| Weight (without box) | 39.6kg |
| Weight (with box) | 47.2kg |
Further details
 | IPS LED monitor. 55 " IPS LED display, TOUCHSCREEN. |
 | New ULTRA HD 4K Technology (3840 x 2160)
|
Android OS Thanks to the Android operating system, you can easily customize the display to suit your needs by installing applications directly on it.
| |
iiSignage² iiSignage² is our content management platform for digital signage, which can be used to easily view and control content and securely manage iiyama displays. The content management system (CMS) gives you complete control of your messages and advertising, which you can manage remotely, easily and securely.
| |
Signal Failover FailOver is a feature that automatically detects input sources. If there is no signal at the default input, the device automatically switches to the closest available input. FailOver allows the customer to prioritize a number of inputs (including browser, media player and Custom) and ensures that their content is always actively displayed.
| |
Touch through glass The back-window or through-glass function makes glass surfaces an interactive display. For back-window use, real estate agencies, POS, and restaurants.
| |
Touch through glass Transform small meeting rooms into clean collaboration spaces using built-in applications such as Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive touchscreens. With the Android operating system, you can easily customize the display by installing applications directly on it. With the EShare app, you can share, broadcast and edit content from any device directly on the screen and transform your team meetings into an easy, fast and seamless interactive session.
| |
Commercial Installations Interactive 4K touchscreens are the key to immersive interactive experiences for retail design. Allow customers to explore your website right there and then or interact with a range of creative or experiential applications you wish to host. The flexibility to use in landscape or portrait modes with 24/7 operation. Android and MediaPlayer make the series displays one of the most adaptable touchscreen solutions available.
| |
 | Stereo Speakers The monitor is equipped with 2 x 10W Speakers (Stereo). High quality sound in stereo format!
|
| This product features HDMI (2x), DisplayPort 1x ports. |
 | Scratch Resistant - IP65 Level Protection (Front) Scratch resistance is essential for touch solutions used in public places and schools. This is achieved by a glass plate that covers the screen. It ensures a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched.
|
 | USB Touch Interface |
  | This model is equipped with an RJ45 LAN PORT and an RS232C port, for multilingual OSD menu control. |
 | VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount. For this product, the VESA dimensions are 400x400mm. |
 | This product features a fast response time for refreshing images displayed on the screen, equal to 8ms . |
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
