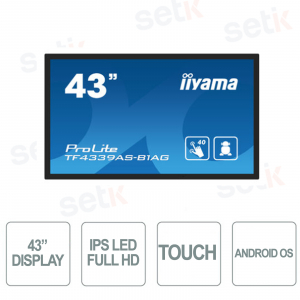

The ProLite TF4339AS-B1AG is a 43" 3840 x 2160 monitor with Edge to edge glass design, Open Frame and 40-point PCAP projective capacitive touchscreen for precise touch. IPS LED screen with AG glass treatment, matte finish and 16:9 aspect ratio - Static contrast ratio of 1200:1 - Response time 8ms - 2xHDMI - 1xDisplay Port - 1x RS-232c - 1x RJ45 (LAN), Audio Output: Speakers 2 (2x10W), Mini-Jack for headphones - Vesa attachment 200 x 200mm - Energy class F - Matte black color - Ideal for video surveillance systems.
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
43" IIYAMA PROLITE MONITOR WITH 40-POINT TOUCHSCREEN DISPLAY - IPS LED - 60Hz - 16:9 - WITH SPEAKERS
![Made by IIYAMA](https://www.setik.biz/storage/images/Articoli/logo_iiyama_black.jpg)
Monitor 43" Inch Touchscreen 60Hz - IIYAMA - TF4339AS-B1AG
40-point Projective Capacitive Touchscreen - 2xHDMI - 1xDisplayPort - 1200:1 Static Contrast - VESA 200x200mm - Multilingual OSD - Fast 8ms Response Time - 2x10W Speakers - MiniJack Headphone Input - Energy Efficiency Class: F - 3 Years Direct Manufacturer Warranty
Product details
![Monitor - X2783HSU-B3 TF4339AS-B1AG.jpg](/storage/images/Articoli/TF4339AS-B1AG.jpg)
- 43" LCD monitor - IIYAMA - TF4339AS-B1AG
- 43 inch IPS LED display, 40-point projective capacitive touchscreen for better touch
- Resolution 3840 x 2160
- Static contrast ratio: 1200:1
- Video interface: 2xHDMI - 1x Display Port
- 8ms response time
- USB x3 OUT (2.0 x1 (up Type B), 2.0 x2 (Type A))
- 2x10W stereo speakers
- Mini Jack input for headphones
- VESA mount 200x200mm
- Energy efficiency class: F
- OSD: EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
- Control keys
- Dimensions: 997.2 x 585.4 x 63.4mm
- Weight: 22.1kg
- Color: Black, Matte
Technical data sheet
Model | TF4339AS-B1AG |
DISPLAY CHARACTERISTICS | |
Design | Edge to edge glass, Open Frame |
Diagonal | 43", 108cm |
Panel | IPS LED, AG coated glass, matte finish |
Native resolution | 3840 x 2160 @60Hz (8.3 megapixels 4K UHD) |
Aspect ratio | 16:9 |
Brightness Panel | 500 cd/m² |
Light transmittance | 87% |
Static contrast | 1200:1 |
Response time (GTG) | 8ms |
Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 16.7ml 8bit (72% NTSC) |
Horizontal Sync | 23 - 85kHz |
Viewable area W x H | 941.2 x 529.4mm, 37 x 20.8" |
Pixel pitch | 0.245mm |
Bezel color and finish | black, matte |
TOUCH | |
Touch technology | PCAP bonded |
Touchpoints | 40 (HID, only with supported OS) |
Touch accuracy | +- 2.5mm |
Touch method | stylus, finger, glove (latex) |
Touch interface | USB |
Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
Through Glass | 6mm |
Palm rejection | Yes |
INTERFACES / CONNECTORS / CONTROLS | |
Digital signal input | HDMI x2 (2.0, max. 3840x2160 @60Hz) Display Port x1 (1.2, max. 3840x2160 @60Hz) |
Monitor control input | RS-232c x1 (Get/Set Command) RJ45 (LAN) x1 (Control and Internet) |
Audio output | Mini jack x1 Speakers 2 x 10W |
HDCP | 2.2 |
USB ports | x3 OUT (2.0 x1 (up Type B), 2.0 x2 (Type A)) |
FEATURES | |
Integrated software | Android 11 OS, iiSignage², EShare, FailOver |
Hardware | CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB |
Extra | handles, Touch Through-Glass, temperature sensor with OSD fan control |
Kiosk mode | yes |
Max. non-stop operating time | 24/7 |
Glass thickness | 3mm |
Glass hardness | 3H |
60950 Ball drop test | yes |
Water and dust protection | IP54 (front) |
Housing (bezel) | metal |
OSD key lock | Yes |
Remote control lock | Yes |
GENERAL | |
OSD languages | EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
Control buttons | Power |
User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, color temp., color control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock , Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer , schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
Plug&Play | DDC2B |
MECHANICAL | |
Orientation | landscape, portrait, face up |
VESA mounting | 200 x 200mm |
Mini PC mount | VESA 100 x 100, INTEL NUC |
Operating temperature range | 0°C - 40°C |
Storage temperature range | - 20°C - 60°C |
MTBF | 50000 hours (excluding backlight) |
ACCESSORIES INCLUDED | |
Cables | power (1.8m), USB (1.8m), DP (1.8m) |
Guides | quick start guide, safety guide |
Cable Over | Yes |
Remote control | Yes (batteries included) |
POWER MANAGEMENT | |
Power Supply Unit | internal |
Power Supply | AC 100 - 240V, 50/60Hz |
Power Usage | 52.1W typical, 0.5W stand by, 0.3W off mode |
SUSTAINABILITY | |
Regulations | CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
Energy efficiency class | F |
REACH SVHC | above 0.1%: Lead |
DIMENSIONS & WEIGHT | |
Product dimensions W x H x D | 997.2 x 585.4 x 63.4mm |
Box dimensions W x H x D | 1105 x 712 x 157mm |
Weight (without box) | 22.1kg |
Weight (with box) | 27kg |
Further details
Android OS Thanks to the Android operating system, you can easily customize the display to suit your needs by installing applications directly on it. | |
iiSignage² iiSignage² is our content management platform for digital signage, which can be used to easily view and control content and securely manage iiyama displays. The content management system (CMS) gives you complete control of your messages and advertising, which you can manage remotely, easily and securely. | |
Commercial Installations Interactive 4K touchscreens are the key to immersive interactive experiences for retail design. Allow customers to explore your website right there and then or interact with a range of creative or experiential applications you wish to host. The flexibility to use in landscape or portrait modes with 24/7 operation. Android and MediaPlayer make the series displays one of the most adaptable touchscreen solutions available. | |
Huddle Spaces Transform small meeting rooms into clean collaboration spaces using built-in applications such as Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive touchscreens. With the Android operating system, you can easily customize the display by installing applications directly on it. With the EShare app, you can share, broadcast and edit content from any device directly on the screen and transform your team meetings into an easy, fast and seamless interactive session. | |
Failover Signal FailOver is a feature that automatically detects input sources. If there is no signal at the default input, the device automatically switches to the closest available input. FailOver allows the customer to prioritize a number of inputs (including browser, media player and Custom) and ensures that their content is always actively displayed. | |
Touch through glass The back-window or through-glass function makes glass surfaces an interactive display. For back-window use, real estate agencies, POS, and restaurants. | |
![]() | IPS LED monitor. 43 " display, touchscreen. |
![]() | Stereo Speakers The monitor is equipped with 2 x 10W speakers. High quality stereo sound. It is also equipped with a minijack input for the use of headphones. |
This product features 2x HDMI port and 1x Display Ports | |
![]() | x3 OUT (2.0 x1 (up Type B), 2.0 x2 (Type A)) |
![]() | This product features a response time of 8ms. |
![]() | VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA compatible stand. This model has a VESA mounting size of 200x200mm. |
![]() | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
