The ProLite TF1015MC-B3 is a 10" Touch monitor with a resolution of 1280 x 800 with touch technology . Screen with IPS panel technology . Static contrast 800:1 with touch, fast response time 29ms, VGA, HDMI, Display Port, Audio (Mini Jack). IP65 protection
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

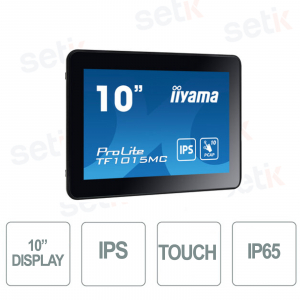

IIYAMA PROLITE 10" MONITOR WITH TOUCHSCREEN DISPLAY - IP65
Size: 10" - Display with IPS Panel, Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - IP65 - DC12V power supply
29ms Response Time - 3 Years Direct Manufacturer Warranty
Product details
- 10" monitor IPS technology - IIYAMA TF1015MC-B3
- Type: IPS Panel
- 10 Inch Touchscreen Display - PCAP
- Resolution 1280 x 800
- VGA - DISPLAY PORT - HDMI
- Response time 29ms
- Static Contrast Ratio: 8 00:1 typical
- VESA mount support
- Dimensions: 260.5 x 183.5 x 39.5mm
- Frame color and finish: Black
Technical data sheet
| Model | TF1015MC-B3 |
| DISPLAY CHARACTERISTICS | |
| design | Open Frame |
| Diagonal | 10.1", 25.7cm |
| Panel | IPS |
| Native resolution | 1280 x 800 (1 megapixel) |
| Aspect ratio | 16:10 |
| Brightness | 500 cd/m² typical |
| Brightness | 450 cd/m² with touch |
| Static contrast | 800:1 typical |
| Light transmittance | 85% |
| Response time | 29ms |
| Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7 million |
| Horizontal Sync | 30 - 49.7kHz |
| Viewable area W x H | 216.96 x 135.6mm, 8.5 x 5.3" |
| Pixel pitch | 0.1695mm |
| Colour | black |
| TOUCH | |
| Touch technology | projective capacitive |
| Touchpoints | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section |
| Through Glass | 6mm |
| Palm rejection | yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Monitor control input | RJ45 (LAN) x1 |
| Audio Output | Mini Jack x1 |
| HDCP | Yes |
| USB ports | x1 |
| FEATURES | |
| Extra | anti-fingerprint coating, touch through glass |
| Glass thickness | 3.3mm |
| Glass hardness | 7H |
| 60950 Ball drop test | Yes |
| Water and dust protection | IP65 (front) |
| Water tight seal | Yes |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch ), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face up |
| VESA mounting | 100 x 100mm |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours |
| ACCESSORIES INCLUDED | |
| Cables | Power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, external control pad |
| Cable cover | yes |
| Remote control | yes |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12V |
| Power Usage | 6W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | C |
| Other | REACH SVHC above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 260.5 x 183.5 x 39.5mm |
| Box dimensions W x H x D | 310 x 160 x 370mm |
| Weight (without box) | 1.4kg |
| Weight (without stand) | 2.7kg |
Further details
 | Touch through glassThe back-window or through-glass function makes glass surfaces an interactive display. For back-window use, real estate agencies, POS, and restaurants.
|
 | Expanded material gasketThe foam finish (8 mm) around the monitor ensures perfect integration and excellent protection from dust.
|
 | Touch Technology - Capacitive This technology uses a grid of micro-wire sensors embedded in the glass covering the screen. Touch is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass covering, this technology is highly durable and the touch function remains unchanged even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and the stylus pen.
|
 | Anti-fingerprint coating This special coating provides a smoother touch and less drag resistance. It makes the screen less static and susceptible to dirt, dust, fingerprints and improves the clarity of the content displayed on the screen.
|
 | Open frame brackets This Open Frame monitor can be equipped with side fixing brackets that can be ordered as an optional. They guarantee easy integration for installation in kiosks, totems and recessed solutions.
|
| This product features 1x HDMI port, 1x VGA port and 1x DISPLAY PORT |
 | 1x USB Hub |
 | VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA compatible stand.
|
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
