Product details

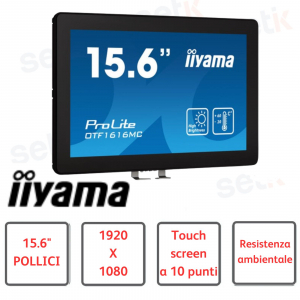

• 15.6" monitor - IIYAMA OTF1616MC-B1
• 15.6 inch tactile touchscreen display - PCAP
• Resolution 1920x1080
• VGA - DISPLAY PORT - HDMI-RJ45
• Response time 25 ms
• Static contrast ratio: 800 :1 typical
• VESA mount support (100x100 mm)
• Dimensions: 398.5 x 246 x 42mm
• Frame color and finish: Black

Data sheet

DISPLAY FEATURES

• Design : Open Frame
• Diagonal : 15.6", 39.5cm
• Panel : VA
• Native resolution : 1920 x 1080 @ 60Hz (2.1 megapixel)
• Format : 16:9
• Brightness : 1100 cd/m²
• Brightness with touch : 935 cd/m²
• Light transmission : 85%
• Static contrast : 800:1
• Response time (BTB) : 25ms
• Viewing Angle : Horizontal/Vertical: 178°/178°, Left/Right: 89°/89°, Up/Down: 89°/89°
• Supports color : 16.2mln (6bit + Hi-FRC)
• Horizontal sync : 31.5 - 67.5kHz
• Viewing Area : 345.2 x 194.6mm, 13.6 x 7.7"
• Pixel pitch : 0.179mm
• Frame color and finish : Black

TOUCH

• Touchscreen technology : Projective capacitive
• Touch Points : 10 (HID only with supported operating systems)
• Touch mode : Finger, glove (latex)
• Touch interface : USB
• Operating System Supported : HID only with supported operating systems
• Through glass : 6mm
• Palm rejection : Yes

INTERFACES / CONNECTORS / CONTROLS

• Analog input connector : VGA x1
• Digital input connector : HDMI x1, DisplayPort x1
• Monitor input controls : RJ45 (LAN) x1
• Audio output : Mini jack x1
• HDCP : Yes

SPECIAL FEATURES

• Extras : Anti-fingerprint coating, touch through glass, UV resistance, ambient light sensor, proximity sensor, automatic FAN control for cooling
• Glass thickness : 3.15mm
• Glass resistance : 7H
• Drop test (60950 Ball drop test) : Yes
• Water and dust protection : IP65 (front)
• Waterproof : Yes

GENERAL

• OSD Language : EN, DE, FR, ES, IT, CN, JP
• Control buttons : Menu, Up/Brightness, Down/Contrast, Select, Power
• User Control :
  • Image: Contrast, Brightness, H. Position, V. Position, Phase, Clock, Auto Adjustment
  • Advanced: Color Temperature, Sharpness
  • OSD: OSD Timeout, OSD Position, OSD H. Position, OSD V. Position, Touch Switch, Factory
  • Option: Reset, Language, Source Selection, Display Mode, Fan Control, Occupancy Sensor, Ambient Light Sensor
• Plug&Play : DDC2B

MECHANICS

• Orientation : Horizontal, Vertical, Face-up
• VESA mounting : 100 x 100mm
• Operating temperature range : -20°C - 60°C
• MTBF : 60000 hours

ACCESSORIES INCLUDED

• Cable : Power, USB, HDMI, DP
• Guide : Quick Start Guide, Safety Guide
• Other : AC adapter
• Cable Cover : Yes
• Remote Control : Remote Control Keyboard

DIET

• Power supply unit : External
• Power supply : DC 12 V
• Power Consumption : 24W typical, 1.5W standby, 0.3W off

SUSTAINABILITY

• Standards : CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
• Energy efficiency class (Regulation (EU) 2017/1369) : E
• REACH SVHC : Above 0.1%: Lead

DIMENSIONS / WEIGHT

• Product (W x H x D) : 398.5 x 246 x 42mm
• Box (L x H x D) : 485 x 370 x 150mm
• Net weight : 3kg
• Gross weight : 4.62kg
• EAN code : 4948570123742

Further details

	SEMI OUTDOOR SOLUTION The screen can operate at low and high temperatures and is IP65 rated resulting in dust and water resistance from the front, making it a reliable solution for cash points and kiosks in environments such as petrol or train stations. The high brightness ensures readability in any lighting condition.
	Touch Technology - Capacitive This technology uses a grid of micro-wire sensors embedded in the glass covering the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unchanged even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.
	This product features 1x HDMI port, 1x VGA port and 1x DISPLAY PORT
	VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
	This product is covered by a 3 YEAR DIRECT manufacturer's warranty .
