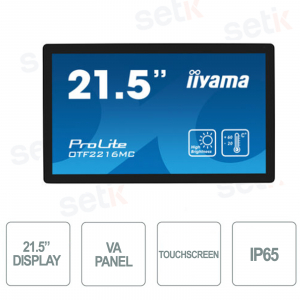

The ProLite OTF2216MC-B1 is a 21" Touch built-in monitor with 1920 x 1080 resolution with touch technology . Scratch-resistant edge-to-edge glass frame. 5000:1 static contrast with touch, intelligent sensors, environmental resistance, anti-fingerprint coating fast response times 25ms, VGA, HDMI, Display Port, Audio (Mini Jack). IP65 protection
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
21.5" IIYAMA PROLITE MONITOR WITH TOUCHSCREEN DISPLAY - IP65
Size: 21.5 " - Display with IPS Panel, Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - IP65 - DC12V power supply
Response times 25ms - 3 Years Direct Manufacturer's Warranty
Product details
- 21.5" Monitor IPS Technology - IIYAMA OTF2216MC-B1
- Type: scratch-resistant edge-to-edge glass
- 21.5" inch tactile touchscreen display - PCAP
- 1920 x 1080 resolution
- VGA - DISPLAY PORT - HDMI
- Response time 25 ms
- Static contrast ratio: 5000:1 typical
- VESA mount support
- Dimensions: 520 x 315 x 42.5mm
- Frame color and finish: Black
Data sheet
| Model | OTF2216MC-B1 |
| DISPLAY CHARACTERISTICS | |
| design | Open Frame |
| Diagonal | 22", 54.6cm |
| Panel | IT GOES |
| Native resolution | 1920 x 1080 @60Hz (2.1 megapixels) |
| Aspect ratio | 16:9 |
| Panel brightness | 1100 cd/m² |
| Brightness | 935 cd/m² with touch |
| Static contrast | 1000:1 typical |
| Light transmittance | 85% |
| Static contrast | 5000:1 |
| Response time | 25ms |
| Viewing zones | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million 8bit |
| Horizontal Sync | 31.4 - 82kHz |
| Viewable area W x H | 477 x 269mm, 18.8 x 10.6" |
| Pixel pitch | 0.248mm |
| Colour | black |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section |
| Through-Glass | 6mm |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Monitor control input | RJ45 (LAN) x1 |
| Audio Output | Mini Jack x1 |
| HDCP | Yes |
| FEATURES | |
| Extra | anti-fingerprint coating, touch through-glass, UV resistance, ambient light sensor, proximity sensor, auto FAN control for cooling |
| Glass thickness | 3.15mm |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Water tight seal | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch ), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Cable management system | yes |
| Operation temperature range (-°/+°) | -20°C - 60°C |
| MTBF | 60000 hours |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Others | AC adapter |
| Cable cover | yes |
| Remote control | external control pad |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12V |
| Power Usage | 43W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Others | AND |
| REACH SVHC | above 0.1%: Leads |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 520 x 315 x 42.5mm |
| Box dimensions W x H x D | 608 x 400 x 150mm |
| Weight (without box) | 4.6kg |
| Weight (with box) | 4.5kg |
Further details
 | HIGH BRIGHTNESSThe display offers a brightness of up to 935 cd/m², so that the contents displayed are visible even in very bright environments.
|
 | INTELLIGENT SENSORS A proximity sensor turns off the screen after a certain time when it detects no one in the environment, an ambient light sensor adjusts the screen brightness when the ambient light changes, and a temperature sensor linearly controls the fan speed, cooling the monitor when the temperature increases, resulting in energy savings and prolonging the life of the product.
|
 | ENVIRONMENTAL RESISTANCE The monitor offers complete protection against various environmental conditions. Thanks to its UV resistance and IP65 protection rating, it is protected from sunlight and is resistant to dust and water from the front. Furthermore, it can operate reliably at temperatures ranging from -20°C to 60°C, thus withstanding wide temperature variations.
|
 | ANTI-FINGERPRINT COATING This special coating ensures a smoother touch and less drag resistance. It makes the screen less static and susceptible to dirt, dust, fingerprints and improves the clarity of the content displayed on the screen.
|
 | OPEN FRAME BRACKETS This Open Frame monitor can be equipped with side fixing brackets which can be ordered as an option. They guarantee easy integration for installation in kiosks, totems and built-in solutions.
|
| This product features 1x HDMI port, 1x VGA port and 1x DISPLAY PORT |
 | VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
|
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
