The ProLite LH8665UHSB-B1 IIYAMA is an 86 ' ' monitor , 4K resolution . Static contrast ratio 1200:1, HDMI 2x, DisplayPort 1x - For professional 24/7 continuous use - Android 11 OS, iiSignage2, FailOver, EShare - RS-232c, RJ45, IR (1x Φ3.5mm stereo mini), 2 Stereo Speakers 10W, USB 1x2.0 *For assistance only
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
PROLITE LED MONITOR 86" - 4K UHD - STEREO SPEAKERS - DIGITAL SIGNAGE TECHNOLOGY - IIYAMA - LH8665UHSB-B1

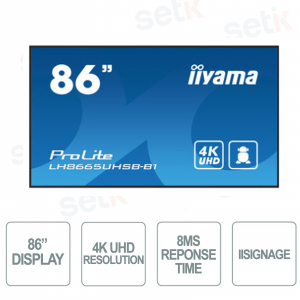

86 inch 4K UHD Monitor - IIYAMA LH8665UHSB-B1
Size: 86" - 4K Ultra-HD Resolution - Stereo Speakers (2x10W) - Inputs ( 2x HDMI, x1 DisplayPort ) - Response times 8ms
Designed for continuous professional use 24/7 - Supports DaisyChain mode - Panoramic and portrait viewing modes - RJ45 LAN port - Remote control - RS232c - IR - VESA 600x400mm mounting - 3 Years Direct Manufacturer's Warranty
Product details
- Monitors - IIYAMA - LH8665UHSB-B1
- 86 inch panel
- Color Depth: 1.07G (8 Bits+FRC) (NTSC 72%)
- 4K Ultra-HD 3840x2160p resolution
- Response time 8ms
- Integrated speakers ( 2 x 10 W (Stereo))
- 2x HDMI, 1x DisplayPort interface
- Static contrast ratio 1200:1
- Ideal for continuous professional use 24/7
- DaisyChain display mode via 1x DisplayPort
- Panorama and portrait view
- OSD languages: EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
- Remote control included (with batteries)
- RJ45 and RS232C LAN port for managing the OSD menu (software not included)
- VESA mount support 600 x 400 mm
- Dimensions: 1927 x 1098.5 x 57mm
- Weight: 49kg
Data sheet
| Model | LH8665UHSB-B1 |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 86", 217cm |
| Panel | IPS, haze 1% |
| Native Resolution | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 800 cd/m² |
| Static contrast | 1200:1 |
| Response time (GTG) | 8ms |
| Viewing zones | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89 |
| Color support | 1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync | 28 - 160kHz |
| Viewable area W x H | 1209.6 x 680.4mm, 47.6 x 28.6" |
| Bezel width (sides, top, bottom) | 16mm, 16.25mm, 16.25mm |
| Pixel pitch | 0.315mm |
| Bezel color and finish | black |
| INTERFACES & CONNECTORS / CONTROLS | |
| Digital signal input | HDMI x2 (max. 3840x2160 @60Hz) DisplayPort x1 (max. 3840x2160 @60Hz) |
| Monitor control input | RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 |
| Audio output | Mini jack x1 Speakers 2 x 10W |
| HDCP | v.2.2 |
| USB ports | x2 (v.2.0) |
| FEATURES | |
| Integrated software | Android 11 OS, iiSignage2, FailOver, EShare |
| Wifi | yes (Built-in, 802.11ac) |
| Hardware | CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB |
| Max. non-stop operating time | 24/7 |
| Anti image retention | yes |
| Housing (bezel) | metal |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | Power |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, color temperature, color control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance , treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version , configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off , advanced option reset) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait |
| Fanless Deisgn | Yes |
| VESA Mounting | 600 x 400mm |
| Operation Temperature Range | 0°C - 40°C |
| Storage Temperature Range | - 20°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power, HDMI, RS-232c |
| Guides | quick start guide, safety guide |
| Others | Stickers for screw holes, Adhesive clips for cable management, AC switch cover |
| Remote Control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 159W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | AND |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1927 x 1098.5 x 57mm |
| Box dimensions W x H x D | 2123 x 1247 x 225mm |
| Weight (without box) | 49kg |
| Weight (without box) | 64kg |
Further details
 | LED backlit VA monitor. 75" backlit LED display. |
 | UHD resolution (3840x2160), better known as 4K, offers a huge viewable area, with 4 times more information and working space than a Full HD screen. Thanks to its high DPI (dots per inch), images are incredibly sharp and clear. |
 | ANDROID OS Thanks to the Android operating system, you can easily customize the display for your needs by installing applications directly on the monitor.
|
 | IISIGNAGE² iiSignage² is our content management platform for digital signage, which can be used to easily view and control content and securely manage iiyama displays. The content management system (CMS) gives you total control of your messages and advertising, which you can manage remotely, simply and securely.
|
 | FAILOVER SIGNAL FailOver is a function that automatically detects input sources. If there is no signal at the default input, the unit automatically switches to the nearest available input. FailOver allows the client to prioritize a variety of inputs (including browser, media player and Custom) and ensures that their content is always actively displayed.
|
 | 24/7 24/7 displays are designed for continuous operation.
|
 | Stereo Speakers The monitor is equipped with 2 10W Speakers (Stereo). High quality stereo sound and 3.5mm MiniJack input.
|
| This product features 2x HDMI port and 2x DisplayPort. |
| Equipped with a LAN PORT and RS232C for OSD menu control |
 | VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
|
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
