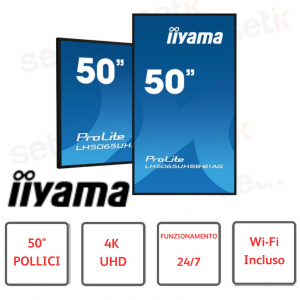

Iiyama 50 inch monitor with 4K UHD resolution

Data sheet

DISPLAY FEATURES

• Design : Skinny bezel
• Diagonal : 49.5", 125.7cm
• Panel : VA, matte finish, 25% opacity
• Native resolution : 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
• Format : 16:9
• Brightness : 800 cd/m²
• Static contrast : 5000:1
• Response time (GTG) : 9.5ms
• Viewing angle : horizontal/vertical: 178°/178°, left/right 89°/89°, up/down: 89°/89°
• Color Support : 1.07G (8 Bits+FRC) (NTSC 72%)
• Horizontal sync : 28 - 160kHz
• Viewing angle W x H : 1096 x 616.5mm, 43.1 x 24.3"
• Frame thickness (side, top, bottom) : 13.25mm, 13.5mm, 13.5mm
• Pixel pitch : 0.285mm
• Frame color and finish : black, matte

INTERFACES / CONNECTORS / CONTROLS

• Digital input connector : HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
• DisplayPort : x1 (v.1.2, max. 3840x2160 @60Hz)
• Monitor input controls : RS-232c x1 (2.5mm sub-mini jack)
• RJ45 (LAN) : x1
• Audio output : Mini jack x1 (3.5mm - stereo)
• Speakers : 2 x 10W
• HDCP : v.2.2
• USB Ports : x2 (v.2.0)

SPECIAL FEATURES

• Integrated Software : Android 11 OS, iiSignage2, FailOver, EShare
• WiFi : Yes (Built-in, 802.11ac)
• Hardware : CPU: A73 4+A53 4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
• Maximum non-stop operation time : 24/7
• Media Playback : Yes
• Casing (frame) : metal

GENERAL

• OSD Language : EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
• Control buttons : Power on
• User Control :
  • Image : brightness, contrast, sharpness, black level, tint, color, noise reduction, gamma selection, low blue light, color temperature, color control, image reset
  • Screen : zoom mode, custom zoom, screen reset
  • Audio : balance, treble, bass, volume, audio output, maximum volume, minimum volume, mute, audio reset, audio output sync, speaker setting
  • Configuration 1 : Android launcher, power-on state, panel save, RS232 routing, boot to source, WOL, configuration reset 1, factory reset
  • Configuration 2 : OSD timeout, OSD H position, OSD V position, system rotation, OSD information, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, reset of configuration 2
  • Advanced Option : No Signal Image, IR Control, Power LED Light, Sleep Timer, Schedule, Single Wire HDMI, Power Off, FailOver, Language, OSD Transparency, Power Saving, Auto Off, Advanced Option Reset
• Plug&Play : DDC2B

MECHANICS

• Orientation : horizontal, vertical
• Fanless : yes
• VESA mounting : 400 x 400mm
• Operating temperature range : 0°C - 40°C
• Storage temperature range : -20°C - 60°C
• MTBF : 50,000 hours (excluding backlight)

ACCESSORIES INCLUDED

• Cable : power, HDMI, RS-232c
• Guide : quick guide, safety guide
• Other : Screw hole stickers
• Remote Control : Yes (Batteries Included)

DIET

• Power supply unit : internal
• Power supply : AC 100 - 240V, 50/60Hz
• Power consumption : 65W typical, 0.5W stand by, 0.3W off

SUSTAINABILITY

• Standards : CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
• Energy efficiency class (Regulation (EU) 2017/1369) : E

DIMENSIONS / WEIGHT

• Product dimensions L x H x D : 1127.6 x 643.5 x 55mm
• Package dimensions L x H x D : 1370 x 850 x 156mm
• Weight (net) : 11.3kg
• Weight (gross) : 14.85kg
• EAN code : 4948570123568

Further details

	LED backlit VA monitor. 50" backlit LED display. High quality images.
	New Technology ULTRA HD 4K (3840 x 2160) Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	Stereo Speakers The monitor is equipped with 2 10W speakers. High quality stereo sound and 3.5mm MiniJack input.
	This product features 2x HDMI port and 1x DisplayPort.
	Equipped with a LAN PORT and RS232C
	VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount. For this model, the VESA standard is 400x400mm.
