The ProLite LH5041UHS-B2AG IIYAMA is a 50 ' ' monitor, Android OS and 4K resolution . Static contrast ratio 5000:1, VGA 1x, HDMI 3x, Mini Jack Audio Input, RS-232c, RJ45, 1x IR, Optical Audio Output, 2 Speakers 10W, USB 2x, MicroSD Slot. Media Playback for playing media content from USB stick or internal memory, Anti-glare coating. VESA attachment

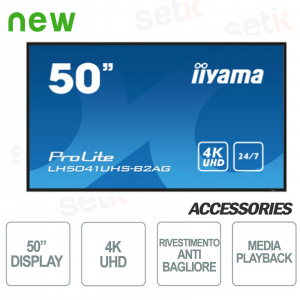

LH5041UHS-B2AG IIYAMA MONITOR PROLITE LED 50" DISPLAY VA 4K - IIYAMA
Size: 50" - 4K UHD 3840 x 2160 resolution - VA display
VGA, HDMI 3x, 1x USB with LFD Media Player function, Mini Jack Audio Input - Audio Output / 2x Speakers 10W - RS232c - RJ45 -1x IR
3 Years Direct Manufacturer's Warranty
Product details
- IIYAMA Professional Monitor
- 50 inch VA adjustable landscape, portrait display
- 4K UHD 3840 x 2160 resolution
- Static Contrast Ratio: 1300:1
- Response time 8 ms
- Inputs: VGA, 3x HDMI
- Audio: Mini Jack input / RCA output and 2x 10W speakers
- Control inputs: RS-232c, RJ45 LAN, IR
- Control outputs: RS-232c, IR
- HDCP
- 1x USB with Media Playback function
- LFD Media Player
- Multilingual OSD menu
- Control keys (Power, Mute, Input, Plus, Minus, Up, Down, Menu)
- Fanless design (without fan)
- Accessories included: Power cable, HDMI, RS-232c, remote control (batteries included), user manual
- VESA 400 x 400 mount support
- Efficiency class G
- Dimensions: 1122.5 x 643.5 x 55mm
Data sheet
Model | LH5041UHS-B2AG |
DISPLAY CHARACTERISTICS | |
Design | Thin bezel |
Diagonal | 50", 125.7cm |
Panel | VA, haze 25% |
Native Resolution | 3840 x 2160 (8.3 megapixels 4K UHD) |
Aspect Ratio | 16:9 |
Brightness | 500 cd/m² |
Static Contrast | 5000:1 |
Response Time | 9.5ms |
Viewing Zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Color support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
Horizontal Sync | 30 - 80KHz |
Viewable area W x H | 1096 x 616.4mm, 43.1 x 24.3" |
Bezel width (sides, top, bottom) | 13.9mm, 13.9mm, 14.9mm |
Pixel pitch | 0.285mm |
Bezel color and finish | black, glossy |
INTERFACES & CONNECTORS | |
Analog signal input | VGA x1 (max. 1920x1080 @60Hz) |
Digital signal input | HDMI x3 (max. 3840x2160 @60Hz) |
Audio input | Mini jack x1 |
Monitor control input | RS-232c x1 RJ45 (LAN) x1 IR x1 |
Audio output | S/PDIF (Optical) x1 Speakers 2 x 10W |
Monitor control output | RS-232c x1 IR loop through x1 |
HDCP | 2.2 |
USB ports | x1 (2.0, FW update support) |
FEATURES | |
Max. non-stop operating time | 24/7 |
Anti image retention | yes |
Housing (bezel) | plastic |
General | |
OSD languages | EN, DE, FR, ES, IT, RU, JP, NL |
Control buttons | Power |
User controls | picture (picture format, color temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset) |
Mechanical | |
Orientation | landscape, portrait |
Fanless design | yes |
VESA mounting | 400 x 400mm |
Operation temperature range | 0°C - 40°C |
Storage temperature range | - 20°C - %2°C |
MTBF | 50,000 hours (excluding backlight) |
Accessories Included | |
Cables | power, HDMI, RS-232c |
Guides | quick start guide, safety guide |
Others | Cable Management |
Remote control | yes (batteries included) |
Power Management | |
Power supply unit | Internal |
Power supply | AC 100 - 250V, 50/60Hz |
Power usage | 115W typical, 0.5W stand by, 0.3W off mode |
Sustainability | |
Regulations | CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA |
Energy efficiency class | G |
Others | above 0.1%: Leads |
Dimensions / weight | |
Product dimensions W x H x D | 1122.5 x 643.5 x 55mm |
Box dimensions W x H x D | 1261 x 761 x 132mm |
Weight (without box) | 11.1kg |
Further details
UHD resolution (3840x2160), better known as 4K, offers a huge viewable area, with 4 times more information and working space than a Full HD screen. Thanks to its high DPI (dots per inch), images are incredibly sharp and clear.
| |
MULTIMEDIA PLAYER Listen to your favorite music and display your best images, photos and videos directly on the screen, stored on a USB flash drive or internal memory, with the integrated media player. | |
IT GOES VA panel technology offers high contrast and good color brilliance with a much wider viewing angle than standard TN panel technology.
| |
Anti-glare coating Anti-glare coating is used in professional displays to avoid reflections and noise caused by external light sources, which worsen color reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt. | |
Audio - inputs The monitor is equipped with 1x Mini Jack Audio outputs and Stereo Speakers The monitor is equipped with RCA audio output (Optical) and 2 10W Speakers (Stereo). High quality sound | |
This product features 3x HDMI port, 1x VGA port and 1x DVI | |
Equipped with an RJ45 LAN PORT for OSD menu control | |
VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount. | |
This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
