The IIYAMA Professional Digital Signage LH3241S-B2 is a 32-inch IPS LED monitor , with 1080p FullHD resolution . Typical contrast ratio 1200:1, Signal FailOver Technology - VGA 1x, HDMI 3x, RJ45, RS-232c, USB 2x2.0 - 1x Minijack - 2 Speakers 10W - VESA 200x200mm connection - The product is designed for professional use, in sunny contexts and environments, ensuring clarity of reading of images and information. Supports panel rotation for portrait-portrait viewing mode - IIYAMA - Professional Digital Signage - LH3241S-B2
FIND INSTALLER

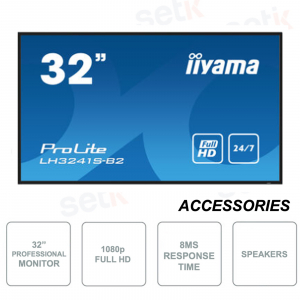

LH3241S-B2 - PROLITE - IIYAMA IPS LED MONITOR 32" - FULLHD 1080P - WITH SPEAKERS - IIYAMA
IIYAMA Professional 55 Inch LED IPS Monitor - LH3241S-B2
Size: 32" - FullHD 1920x1080p resolution - IPS LED display - VGA, HDMI interface - Signal FailOver technology - 3.5mm Mini Jack Audio Input - Audio Output / 2x Speakers 10W - RS232c - RJ45 - USB 2x2.0 - Response time 8ms - Contrast 1200:1 - Media Playback - Rotatable to allow viewing in portrait mode - Built for continuous 24/7 operation, ideal for professional use in video surveillance systems - Black color - 3 Years Direct Manufacturer's Warranty.
Product details
- IIYAMA Professional Monitor - PROLITE LH3241S-B2
- 32-inch IPS LED display adjustable landscape (horizontal viewing) and portrait (vertical)
- FullHD 1080p resolution (1920x1080p)
- Static Contrast Ratio: 1200:1
- Response time: 8 ms
- Signal FailOver technology
- AndroidOS operating system
- Media Playback
- Thin Bezel design with slim bezels
- Inputs: VGA, HDMI (3x)
- Audio: Mini Jack input - 2x 10W speakers
- Designed for continuous use 24/7
- Control input: RS-232c
- RJ45 interface
- MicroSD Card Slot
- HDCP
- 2xUSB 2.0
- OSD menu: EN, DE, FR, ES, IT, RU, JP, NL
- Control keys
- Remote control included
- Fanless design (without fan)
- Material: Metal Frame
- Operating temperature: 0°C - 40°C
- Mounting support VESA: 200x200mm
- Dimensions: 725.5 x 422 x 54mm
- Weight: 5.1kg
Data sheet
| Model | LH3241S-B2 |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 31.5", 80cm |
| Panel | IPS, haze 1% |
| Native Resolution | 1920 x 1080 (2.1 Megapixels Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m² |
| Static Contrast | 1200:1 |
| Response Time | 8ms |
| Viewing Zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support |
16.7m 8bit (NTSC 72%) |
| Horizontal Sync | 30 - 80kHz |
| Viewable area W x H | 698.4 x 392.9mm, 27.5 x 15.5" |
| Bezel width (sides, top, bottom) | 4.75mm, 14.75mm, 15mm |
| Pixel pitch | 0.364mm |
| Bezel color and finish | black, glossy |
| INTERFACES & CONNECTORS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x3 |
| Audio input | Mini jack x1 |
| Monitor control input | RS-232c x1 RJ45 (LAN) x1 IR x1 |
| Audio output |
RCA (L/R) x1 |
| Monitor control output | RS-232c x1 IR loop through x1 |
| HDCP | 2.2 |
| USB Ports | x1 (2.0, FW update support) |
| FEATURES | |
| Max. non-stop operating time | 24/7 |
| Media Playback | yes |
| Housing (bezel) | Plastic |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, NL |
| Control buttons | Power |
| User controls | picture (brightness, contrast, sharpness, black level, tint, color, noise reduction, gamma selection, color temperature, color control, smart power, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD turn off, OSD H-Position, OSD V-position, rotation, information OSD, logo, monitor ID, heat status, monitor information, DP version, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power save, SDM settings, advanced option reset), Android settings (network, signage display, apps, display, security, date & time, developer options, about) |
| MECHANICAL | |
| Orientation | landscape, portrait |
| Fanless design | yes |
| VESA mounting | 200 x 200mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF |
50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power, HDMI, RS-232c |
| Guides | quick start guide, safety guide |
| Others | Cable Management |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | Internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 39W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Leads |
| DIMENSIONS / WEIGHT | |
| Product dimensions W x H x D | 725.5 x 422 x 54mm |
| Box dimensions W x H x D | 824 x 554 x 119mm |
| Weight (without box) | 5.1kg |
Further details
 |
IPS LED monitor, perfect for 24/7 continuous use 32 " display. |
|
 |
FULL HD resolution (1920 x 1080p Progressive) FULL HD With a 1920 x 1080p resolution, this monitor displays high-definition images.
|
|
 |
Multimedia player Listen to your favorite music and display your best images, photos and videos directly on the screen, stored on a USB flash drive or internal memory, with the integrated media player.
|
|
 |
IPS IPS displays are best known for wide viewing angles and natural, accurate colors. They are particularly suitable for color-critical applications.
|
|
 |
Full HD Thanks to a resolution of 1920 x 1080, the monitor is capable of reproducing high definition images. This means that more information can be displayed on the screen; e.g., 60% more than the 1280 x 1024 monitor.
|
|
 |
|
|
 |
Audio - inputs The monitor is equipped with 1x Mini Jack (3.5mm) Stereo Speakers The monitor is equipped with 2 10W Speakers (Stereo). High quality sound
|
|
|
|
This product features 3xHDMI, VGA interface. |
|
 |
This IIYAMA model features 2x USB 2.0 ports. | |
 |
Equipped with an RJ45 LAN PORT | |
 |
This monitor features RS232c interface. | |
 |
VESA attachment VESA mount compatibility means you can easily mount the display to any stand that is compatible with this standard. For this model, the VESA measurements are: 200x200mm.
|
|
 |
This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
