BEST PRICE
-57%

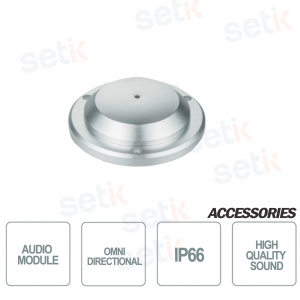

Dahua HAP320-V Audio Module , built-in microphone with metal case. Water resistant and dust protection, 5-100m range, ANC (Ambient Noise Cancellation) technology, clean and natural sound.
FIND INSTALLER
https://www.setik.biz/en/microphones/5017-dahua-hap320-v-dahua-microphone-audio-module-ip66-anc.html
€136.92
€318.42 -57%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA MICROPHONE AUDIO MODULE - IP66 - HIGH RELIABILITY - ANC TECHNOLOGY
Omnidirectional Dahua microphoneReliable sound module - clean and natural sound - range 5-100m2 - Metal
Equipped with IP66 protection) - Flush mounting
Incorporated ANC technology - Quality product
Product details
Omnidirectional Dahua microphone
Clean and natural sound
Flush mounting
IP66 protection
IP66 protection
Range 10-150m2
High reliability
ANC (Ambient noise cancellation) technology for the suppression of environmental disturbances
Dimensions: Φ80mm × 23.5mm (Φ3.15 "x0.93")
Material: Metal
Quality productHigh reliability
ANC (Ambient noise cancellation) technology for the suppression of environmental disturbances
Dimensions: Φ80mm × 23.5mm (Φ3.15 "x0.93")
Material: Metal
Data sheet
| Model: DVR | HAP320-V |
| General | |
| Scope | 5 ~ 100m2 |
| Sensitivity | -24 ± 3dB |
| Frequency response | 20Hz ～ 20kHz |
| Directional characteristic | Omni-directional |
| SNR (re 94dBSPL = 1Pa @ 1kHz) | 68dB |
| Dynamic range | 84dB |
| Max. Sustainable Sound Pressure | 110dBSPL (1kHz, THD 1%) |
| Output Impedance | 100Ω (non-equilibrium) |
| Output signal amplitude | 2.5Vpp / 90dBSPL |
| Microphone | High-fidelity waterproof microphone |
| Working voltage | DC 12V |
| Working current | 60mA |
| Working temperature | -30ºC ~ + 70ºC (-22 ℉ ~ + 158 ℉) |
| Material | Metal |
| Color | Silver |
| Dimension | Φ80mm × 23.5mm (Φ3.15 "x0.93") |
| Weight | 0.185kg (0.41lb) |
| Certification | CE / FCC |
