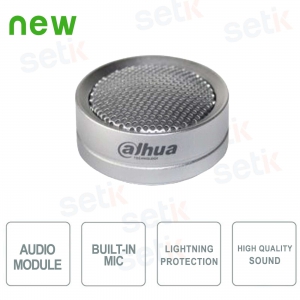

High Sensitivity Microphone Audio Module - Dahua

High Sensitivity Microphone Audio Module - Dahua
-58%

HAP120 Audio Module Dahua extremely sensitive, omnidirectional microphone, clean and natural sound. Protection against lightning, polarity reversal of power and electrostaticity. Aluminum, silver color.

Reference: HAP120

Brand: Dahua

EAN: 6939554996214

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AUDIO MODULE FOR ENVIRONMENTAL LISTENING - DAHUA TECHNOLOGY

Prodotto Marca Dahua Audio module - Dahua
Useful for environmental listening - Suitable for any type of environment
Highly reliable and sensitive - omnidirectional microphone, clean and natural sound
Protection against lightning, polarity inversion, electrostaticity.

Product details

Modulo Audio dahua per ascolto ambientale
Audio module - Dahua
Useful for environmental listening
Suitable for any environment
Protection against lightning, polarity inversion and electrostaticity
Extremely sensitive and reliable
Multidirectional microphone
Clean and natural sound
Size ?40mm × 20mm (?1.57 "× 0.79")
Silver color
Quality product

Data sheet

Model: DVR HAP120
General
Scope 10 ~ 70 m2
Sensitivity -34 ± 3 dB
Frequency response 80Hz ~ 16kHz
Directional characteristic Omni-directional
SNR

58dB

Dynamic range 74dB
Max. Sustainable sound pressure 110dBSPL (1kHz, THD 1%)
Output impedance 600? (non-equilibrium)
Output signal amplitude 2.5Vpp / 88dBSPL
Microphone Plated film capacitor microphone head
Working voltage DC 12V
Working current 40mA
Working temperature -30ºC ~ + 70ºC (-22 ? ~ + 158 ?)
Material Aluminum
Color Silver
Dimension ?40mm × 20mm (?1.57 "× 0.79")
Weight 48g (0.11lb)
Certification CE / FCC

More details

Schema collegamento modulo audio dahua HAP120

Download

Download the English brochure
Schema dimensioni modulo audio dahua HAP120
