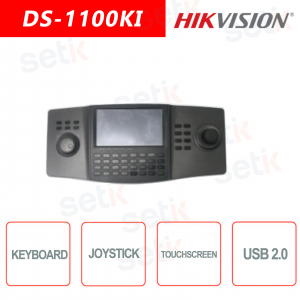

DS-1100-KI | HIKVISION IP MULTIFUNCTION KEYBOARD WITH TOUCHSCREEN AND JOYSTICK

Ds-1100-Ki
HIKVISION MULTIFUNCTION IP keyboard WITH TOUCHSCREEN AND 4D JOYSTICK:
Hikvision network multifunction keyboard compatible with DVR, DVS, NVR, decoder, MVC, network cameras, network speed dome, HikCentral and KPS platforms, USB 2.0, RS-232, RS-485. Linux operating system .

♦ Split video wall into regions to manage video wall by region

 open/close, move, resize, split, widen/shrink a window

♦ Groups and macros;

Preview the camera's live image on the touch screen of the network keyboard;

Quick Switch from previous to next camera;

Speed dome control by joystick;

Playback of decoder videos on the video wall;

Playing video from the video recorder on the touch screen of the network keyboard. Supports cropping and capture during playback

♦Adding devices via SDK or ONVIF® protocol;

♦Access to HikCentral and KPS platforms

Support up to 32 users (1 administrator and 31 operators) and 4,000 devices;

?? Add/edit/delete cameras in batch

Import/export of the configuration file

1xUSB 2.0, 1xRS-232 1xRS-485

♦Consumption: ≤ 15W

Dimension: 435 × 193 × 110 mm (17.1" × 7.6" × 4.3")

Documentation: Leaflet

Data sheet

DS-1100-KI
Local Decoding format H.264, H.265, MPEG4
Performance 4@1080p
Screen Division Single screen
Inputs/outputs Display 7" TFT-LCD at 1024×600 resolution
Joysticks 4D joysticks
Audio 1 video input and 1 video output of 3.5mm audio jack.
Supports two-way audio
Video not supported
Usb 1 × USB 2.0 interface
Serial port 1×RS-232, 1×RS-485
Network 1 × 100M/1000M self-adaptive network interface
Diet power supplies

12V DC

consumption

≤ 15W

General System

Linux

Working temperatures

10°C to +55°C (-4°F to +122°F)

Working Humidity 10% to 90%
Color

Black

Dimensions

435 × 193 × 110 mm (17.1" × 7.6" × 4.3")

Weight 2KG (4.4lb)
