HYBRID CONTROL UNIT PCX - LARGE - PYRONIC HIKVISION - PCX/IT078-L0


PCX HYBRID CONTROL UNIT - LARGE

PCX/IT078-L0 - Pyronix Hikvision - Hybrid control unit PCX - Metal case dimensions: Large - 8 inputs (expandable up to 78) - 5 outputs (expandable up to 85) - 100 user codes/proximity tags - 64 wireless inputs - 2 Sirens - 32 remote controls - 4 keypads or proximity readers - SMS - Push Notifications - Compatible Modules: DIGI-WIFI/XA, DIGI-LAN, DIGI-GPRS, DIGI-DUAL, ARC Communication Protocols: Contact ID IP, SIA Level 3 IP.

LEDP_R-WE_SMALL

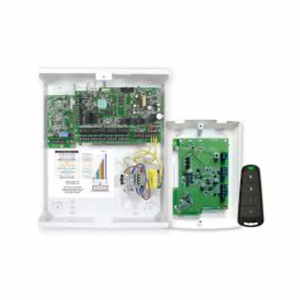

Hybrid control unit PCX - PYRONIX HIKVISION - PCX/IT078-L0

  • Large metal container
  • 8 independent areas
  • 8 inputs (expandable up to 78)
  • 5 outputs (expandable up to 85)
  • 100 User Codes and Prox Tags
  • 1250 System Logs
  • 64 Wireless Inputs (with n.2 RIX32-WE)
  • 32 Remote controls
  • 4 Keypads/Proximity Readers
  • 2 sirens
  • Management: 6 Keyboards/Readers
  • Module Compatibility: DIGI-WIFI/XA, DIGI-LAN, DIGI-GPRS, DIGI-DUAL
  • Communication Protocols ARC: Contact ID IP, SIA Level 3 IP User: SMS, Push Notifications
  • Battery Capacity: 2 – 7Ah
  • Input resistance 1k tamper / 1k alarm / 6k8 Mask
  • Operating temperature -10°C / +40°C
  • Product dimensions: 305 x 390 x 100mm
  • Product net weight: 11.5kg (including battery)
  • Electrical Conformity: CE, EN50131 Grade 3
