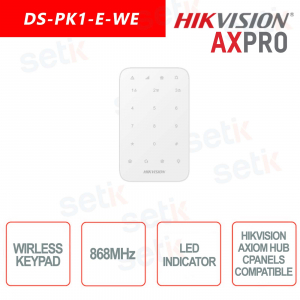

DS-PK1-E-WE AXPro Hikvision Wifi Keypad Touch Keypad Internal Alarm. Two-way wireless communication at 868 MHzz. Led indicators, Buzzer. Fire Alarm, Panic Alarm and One-Push Medical Alarm. Remote configurable via App. Power supply 1.5 VDC and 4xAA batteries.
€128.47
€197.64 -35%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-PK1-E-WE | HIKVISION KEYBOARD LED ALARM RADIO AXPRO HUB 868MHZ WIRELESS
This indoor wifi alarm keypad is fully compatible with 868MHz frequency alarm control panels. Useful for alarm control and various operations. Alarm signaling by means of led indicators and buzzer.
Main features
Documentation: Brochure |
Data sheet
DS-PK1-E-WE | ||
RF | Frequency | 868 MHz |
Modulation | 2GFSK | |
Distance | 1200m (open area) | |
Interface & component | Tamper switch | Supported, front and rear panel tamper-proof |
Power switch | Power on / off | |
Buzzer | Supported | |
Indicator | 4: fault (orange), enrollment / signal (red / green), arm (blue), disarm (green) and alarm (red) | |
Backlight | white | |
Key |
Number key: 0 to 9 Function key: *, #, stay arming, away arming, disarming, and output |
|
Application & protocol | Protocol | Tri-X, two-way communication |
Electrical & Battery | Power Consumption |
Quiescent current: 180 uA Max current: 251mA Voltage: 1.5 VDC |
Battery type | Four AA batteries | |
Battery life span | Standby time more than two years | |
Others | Operation humidity | 10% to 90% (No condensing) |
Operation temperature | -10 ° C to +55 ° C (-4 ° F to +122 ° F) | |
Color |
White |
|
Installation | Screw mounting | |
Dimension (W x H x D) | 140 (5.50 ") x 86 (3.38") x 22 (0.87 ") mm | |
Weight | Without batteries: 151 g (5.33 oz), and 23 g (0.81 oz) each battery |
AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog article! |
AXPRO SYSTEM - BEYOND SAFETYAXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as video surveillance, video door entry systems and access control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional and end users. TRI-X & CAM-X Wireless TechnologyTRI-X is a proprietary radio protocol that guarantees greater safety and simplicity in communication. It allows you to associate and program system devices via the HikProConnect APP , monitoring their components and their status with real-time alerts. Tri-X and Cam-X dual frequency and multi-channel Frequency Hopping technology provide interference immunity, long distance communication up to 2,000m and long device life [up to 6 years].
|
