ONVIF IP DOOR STATION - WIFI - 2MP CAMERA - AUTOMATIC IR AND WDR 120DB - TWO-WAY AUDIO - DAHUA - VTO1301R-W

DESCRIPTION:

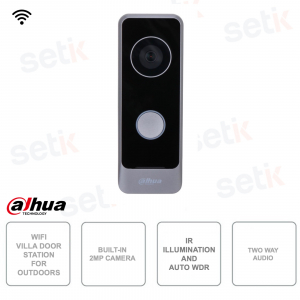

The outdoor station VTO1301R-W by Dahua, is one of the best stations on the market
Ideal for installations in Villas thanks to its refined ultra slim design, it is made of polycarbonate and ABS plastic.
Equipped with a camera with a 2MP, 1/2.8" CMOS sensor, it supports the WIFI communication standard IEEE 802.11b; IEEE 802.11g; IEEE 802.11n, and is equipped with a slot for inserting MicroSD memory cards up to 256GB (sold separately) .

Product Details:

  • IP ONVIF® external station - Dahua - VTO1301R-W
  • Category: Video intercom
  • Integrated camera with 2MP 1/2.8" CMOS image sensor
  • Codec up to H.265 and Dual Stream of Video
  • 1x mechanical button
  • WIFI: IEEE 802.11b; IEEE 802.11g; IEEE 802.11n
  • IP65 protection, ideal for outdoors
  • Automatic IR illuminator
  • WDR 120dB automatic
  • Two-way audio, with echo suppression and noise cancellation
  • Integrated speaker + Integrated microphone
  • Anti-tamper alarm
  • MicroSD card slot up to 256GB (not included)
  • Material: Polycarbonate and ABS
  • Appearance: light gray color, with ultra slim design
  • Dimensions: 140.7mm × 50.7mm × 27mm
  • Item net weight: 0.13 Kg
  • Operating temperature: –40 °C to +55 °C
  • Humidity: 10%–90% (RH), non-condensing
  • Altitude: 0-3,000m
  • High quality product
  • For wall installation
  • 24 month warranty

Data sheet

VTO1301R-W

System

Main Processor

Embedded Processor

Button Type

Mechanical

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Noise Reduction

3D NR; 2D NO

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

Audio Bit Rate

16kHz, 16bit

Function

Web Configuration

Yes

Wifi

Yes

Wireless Standard

IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

Wireless Frequency Range

2.4 GHz

Performance

Casing

PC + ABS

Alarm

Tamper Alarm

Yes

General

Color appearance

Light grey

Power Supply

12–33 VDC, 1 A

Power Adapter

Optional

Installation

Surface Mount

Certifications

THERE IS; FCC

Accessories

Included: Alarm power ribbon cable, rain cover

Product Dimensions

140.7 mm × 50.7 mm × 27 mm (5.54" × 2.00" × 1.06")

Protection

IP65

Operating Temperature

–40 °C to +55 °C (–40 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤ 3 W (standby), ≤ 5 W (working)

Gross Weight

0.34 kg (0.75 lb)

Net Weight

0.13 kg (0.29 lb)

Further details

Schema dimensioni postazione esterna VTO2202F-P-S2
