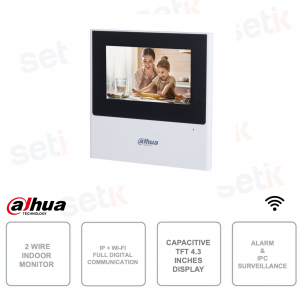

Two-wire IP and WIFI indoor monitor - 4.3 inch touchscreen - Door unlocking

-57%

IP and WI-FI internal station Dahua VTH2612L-W internal two-wire color 4.3" TFT capacitive touch screen 480x272, 4 inputs + 1 alarm output, 1 Audio and Speaker input, supports two-way conversation and Echo Suppression with noise cancellation - WI-FI IEEE802.11b/g/n frequency with 2.4Ghz frequency - Viewing Dahua IP cameras, ideal for wall mounting.

Reference: VTH2612L-W

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/ip-video-door-phones/9834-dahua-vth2612l-w-two-wire-ip-and-wifi-monitor-for-internal-43-inch-touchscreen-door-unlocking.html

€148.99

€346.48 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical data sheet Further Details Download

INDOOR TWO-WIRE STATION IP/WIFI DAHUA 4.3" COLOR MONITOR FOR INDOORS - CAPACITIVE TOUCHSCREEN - RESOLUTION 480x272 - VTH2612L-W

Product Details:

Dahua Internal IP/WIFI Two-Wire Station - VTH2612L-W
4.3" TFT capacitive touchscreen
4.3" color capacitive touchscreen display (480x272)
Alarm: 4 inputs + 1 output
Bidirectional Audio: 1 Audio Input + Integrated Speaker
Echo Suppression / Digital Noise Reduction
Text Messages: Receive and display text messages from the control center
Completely Digital Communication Mode
Full Digital Communication
DND Period Mode and Do Not Disturb Mode Configurable
Supports Elevator Call
Extensions: Apartments 4; Villa 9
Wifi : IEEE802.11b; 802.11g; 802.11n | Wireless Frequency: 2.4GHz
1 Self-adaptive 10/100 Mbps RJ45 port
1 double-wire door
Viewing images IP cameras
Installation: Wall
Dimensions: 140x136×25.5 mm
24 month warranty
Material: ABS
Optional power adapter
Appearance: white color

Data sheet

VTH2612L-W

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Network Protocol

UDP; TCP; IPv4; RTSP; SIP; RTP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

4.3" TFT display

Screen Resolution

480(H)×272(V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

1 built-in speaker and 1 receiver speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 Bit

Function

Communication Mode

Full digital

Information Release

Text messages can be received and viewed on the indoor monitor

Elevator Control

You can control the elevator through the indoor monitor

DND Mode

Do not disturb period can be set.

Number of Extensions

Apartment: 4;
Villa: 9

Wifi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Port

Alarm Input

Alarm Output

Network Port

1 × two-wire port and 1 × 10 Mbps/100 Mbps Ethernet port (one of them can be selected)

Alarm

SOS Alarm

Yes

Performance

Casing Material

ABS

General

Appearance Color

White

Power Supply

48VDC, 1A; two-wire switch (max power transmission distance: 50 m)

Power Adapter

Optional

Installation

Surface Mount

Accessories

Surface mount bracket, alarm ribbon cable, and power-supply pins are provided

Product Dimensions

136.0 mm × 140.0 mm × 25.5 mm (5.35" × 5.51" × 1.00") (W × H × D)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Power Consumption

≤4W (standby), ≤6W (working)

Gross Weight

0.21 kg (0.46 lb)

Further details

	7" TFT Touch Screen 480x272 color display
	Supports two-way conversations
	Viewing Dahua IP cameras
	Connection via RJ-45 Ethernet LAN port (10M/100Mbps)
	Two-way audio (Built-in Audio Input and Speaker)
	4 Alarm Inputs + 1 Alarm Output
	This product is covered by a 24 month warranty.
