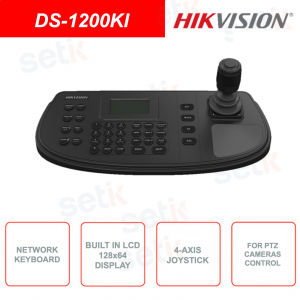

Keyboard - 4-axis joystick - For PTZ cameras, Videowall Controllers and Decoders - Onboard LCD display
-35%
HIKVISION DS-1200KI Expansion Module - Integrates keyboard, 128x64 pixel LCD Display, 4-axis Joystick - For Video Counter MVC, VAG, Videowall, Decoder, DVR, PTZ cameras - Image import on U-flash Disk unit (not included) - 10 M/100 Mbps sEthernet interface - Controls via 1xRS-232, 1xRS-422, 1xRS-485 - USB 2.0 interface - Power supply 12VDC.
FIND INSTALLER
DS-1200KI | HIKVISION | EXPANSION MODULE WITH KEYBOARD - LCD DISPLAY - JOYSTICK 4-AXIS - IDEAL FOR PTZ CAMERAS
Keyboard Expansion Module - LCD Display 128x64 pixel - Joystick 4-axis - Image capture on U-flash disk unit (sold separately - Interface: 1xRS-232, 1xRS-422, 1xRS-485 - USB 2.0 interface - RJ45 LAN 10/100Mbpps - For PTZ camera control, MVC Multi-functional Video Centers, VAG, Videowall, Decoder, DVR - 16 user accounts - 12VDC power supply (not included).
EXPANSION MODULE: The module integrates:
|
INTERFACE:
|
CONTEXT OF USE: Ideal for use with:
|
DIET: 12VDC power supply. |
Data sheet
| DS-1200KI | |
| System parameters | |
| LCD screen | 128 x 64 pixel screen |
| Joysticks | 4-axis joysticks |
| Control Mode | Network, RS-232, RS-422, RS-485 |
| External Interfaces | |
| Network interface | 1; 10M/100interfaces |
| Serial interface | 1 RS-232, 1 RS-422, 1 RS-485 |
| USB interface | 1 × USB 2.0 |
| General | |
| power supplies | 12VDC |
| power consumption | ≤ 4.5W |
| Working temperatures | -10 to +55°C (14 to 131°F) |
| Working humidity | 10% to 90% |
| Dimensions (W×D×H) | 435 × 193 × 110mm (17.1 × 7.6 × 4.3inch) |
| Weight | ≤ 1kg (2.2lbs) |
Further details
Not available.
Downloads
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
